Description
- Tests 12 Connector Types
- XLR, TS/TRS, Speakon, USB, DIN & More
- Simple & Convenient Operation
- Selector Knob Tests Each Pin on Cable
- Leads for Testing Additional Connectors
- Durable All-Metal Construction
- Runs on One 9-Volt Battery

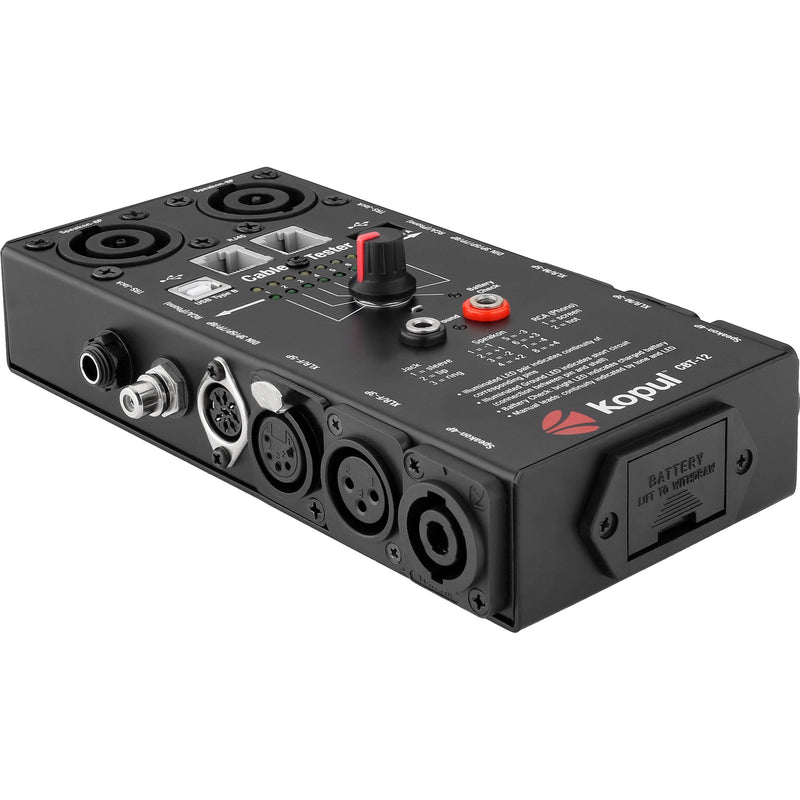

The Kopul CBT-12 is a professional-quality cable tester that allows users to test the continuity of a wide variety of cables with a single device. It quickly identifies connectivity and ground problems in some of the most frequently-used cables, and makes troubleshooting audio and studio setups fast and effortless.
An eight-way knob provides easy selection of the pins to be tested, LED indicators illuminate to show that each pin on the cable is properly connected. The CBT-12 can test cables with any combination of Speakon 4-pin, Speakon 8-pin, XLR 3-pin, XLR 5-pin, TS/TRS, DIN 3/5/7/8, RCA, USB Type A to Type B, RJ45, and Banana plugs. Two removable leads are included for testing any kind of wire or cable with jacks that are not included on this model. They also allow for testing connections when building or repairing cables or when wiring studios or audio installations.
The CBT-12 is ideal for home, project, and professional studio use. Constructed with a rugged all-metal case, the CBT-12 is a road-ready tool for studio techs and install engineers.
- Tests Cable Continuity
- Provides easy and simple continuity testing for cables with any combination of Speakon 4-pin, Speakon 8-pin, XLR 3-pin, XLR 5-pin, RCA, DIN 3-pin, DIN 5-pin, DIN 7-pin, DIN 8-pin, TS/TRS, USB-Type A to Type B, RJ45, and Banana plugs
- Checks Each Pin Separately
- Rotary knob selects each pin on the cable to confirm connectivity and continuity
- Status LEDs
- A battery check LED warns when the battery needs to be charged or replaced. The ground status check LED lights when a ground loop (short circuit) is detected
- Removable Leads
- Two removable leads are included to verify continuity of additional connectors and are useful when constructing or repairing cables
- Durable Build Quality
- Heavy-duty, all-metal construction assures extended use in studio and on the road
| Material | All-metal construction |
| Connectors | Speakon 4-pin Speakon 8-pin XLR M/F 3-pin XLR M/F 5-pin RCA (phono) DIN - 3-pin/5-pin/7-pin/8-pin TS/TRS USB - Type A to Type B RJ45 Banana plugs |
| Power | 1x 9 V battery (not included) |
| Dimensions | 1.40 × 3.50 × 7.25" (3.5 × 8.9 × 18.4 cm) |
| Weight | 1.8 lb (0.8 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 2.2 lb |
| Box Dimensions (LxWxH) | 8.8 x 5.6 x 3.1" |
- Removable Leads
- Limited 1-Year Warranty
