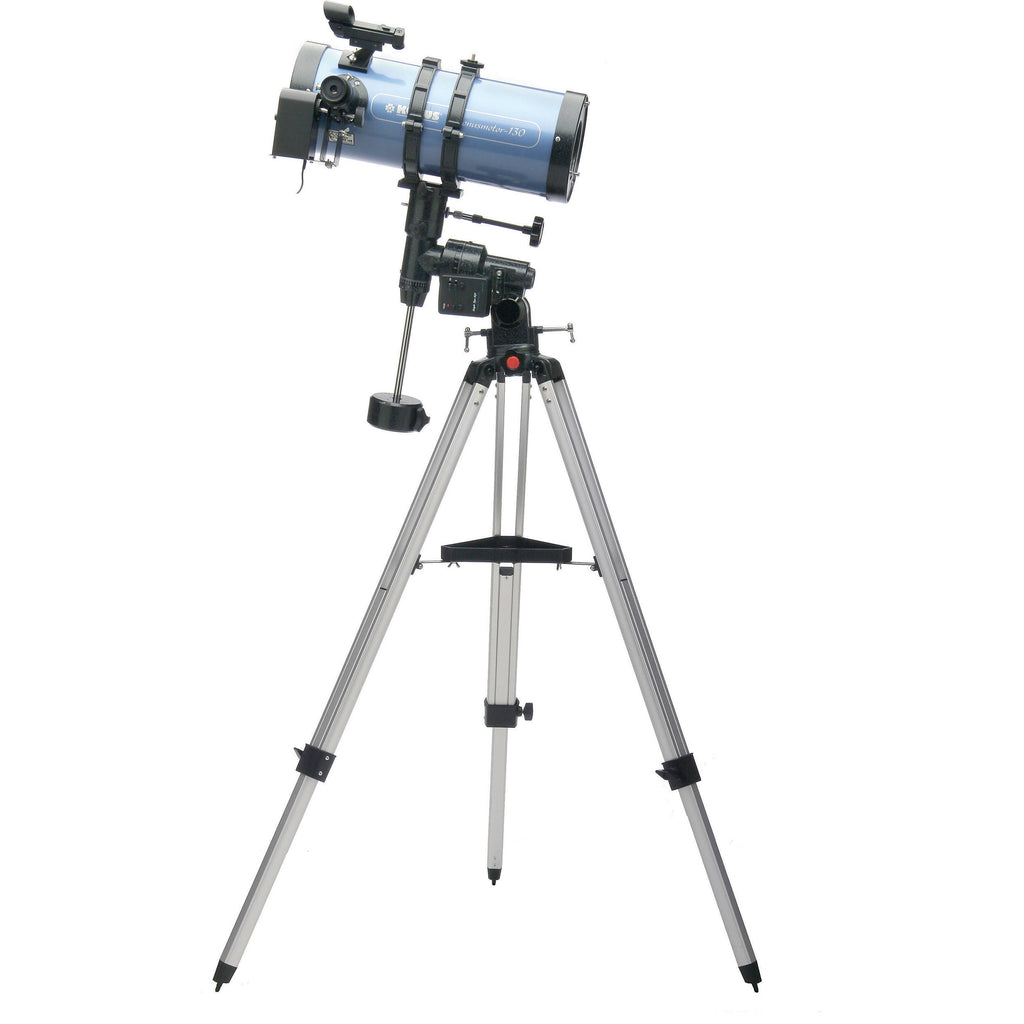

Konusmotor-130 5" f/7.7 Reflector Telescope with RA Motor

5" / 130mm Aperture

1000mm Focal Length, f/7.7 Focal Ratio

Equatorial Mount, Right Ascension Motor

Anti-Reflection Multicoated Optics

The Konusmotor-130 5" f/7.7 Telescope with RA Motor from Konus is an ideal intermediate scope for making observations of the Moon and planets as well as brighter deep sky objects. The 5" primary mirror and anti-reflection multicoated optics ensure images are bright and clear. This German equatorial mount is a step-up from a beginner version with the addition of a Right Ascension tracking motor that counteracts the Earth's rotation and keeps your subjects centered for longer observation sessions. Using the motor to track, instead of the more common manual cable not only ensures steady and smooth movement, but it also greatly reduces vibrations. The manual slow-motion declination cable allows for adjustments if necessary. To further reduce vibrations Konus outfits the focuser with a motor that can achieve a smooth fine focus that manual focusing often cannot.

Assembled as a complete observation platform, the scope includes an adjustable-height aluminum tripod, a red dot finderscope for faster alignment and sighting, and two eyepieces. The 10mm eyepiece produces 100x power, and the 17mm produces 59x. A filter is also included for users to safely make detailed observations of the Moon. To transport and carry the OTA and tripod are two bags with zipper closures.

Optical Performance

• 5" aperture
• f/7.7 focal ratio
• 1000mm focal length
• Anti-reflection multicoated optics

Mount

• German equatorial
• Right Ascension tracking motor, runs on one 9V battery
• Manual Declination slow motion cable
• Counterweight bar with adjustable counterweight
• Cradle ring assembly to adjust OTA position relative to mount for optimal viewing and balance
• Two-section aluminum tripod, adjustable from 26-42"

Accessories

• 1.25" motorized focuser, runs on two AA batteries
• 10mm eyepiece yields 100x power
• 17mm eyepiece yields 59x power
• Red-dot finderscope
• Moon filter for safe observation of the moon
• Two soft carrying cases for the OTA and tripod/mount
• Smartphone holder to attach device to OTA

UPC: 698156017869

Optical Design	Reflector
Aperture	5.2" / 130 mm
Focal Length	1000 mm
Focal Ratio	f/7.7
Eyepiece Barrel Diameter	1.25"
Diagonal	n/a
Finderscope	Red dot
Tripod	Two-section Aluminum Adjustable: 26.4 - 42.1" / 67 - 107 cm
Mount Type	German Equatorial with Right Ascension motor
Power Source	RA motor: 1 x 9v battery Focuser motor: 2 x AA batteries
Optical Tube Dimensions	Not specified by manufacturer
Weight	Not specified by manufacturer

Package Weight	33.2 lb
Box Dimensions (LxWxH)	29 x 19 x 10"
