Kondor Blue KB-BMPCC6KP-GRIPTH Overview
Protect and expand the mounting capabilities of your Blackmagic Pocket Cinema Camera 6K Pro while accommodating the camera's battery grip using the space gray Kondor Blue Battery Grip Cage with Top Handle. Both the cage and top handle provide multiple 1/4"-20 and ARRI-style 3/8"-16 threads, cold shoe mounts, and NATO rails to mount articulating arms, a secondary monitor, or shotgun microphone to your run-and-gun rig. Built-in HDMI and USB Type-C cable clamps increase the organization of your setup while reducing strain to your camera's ports.

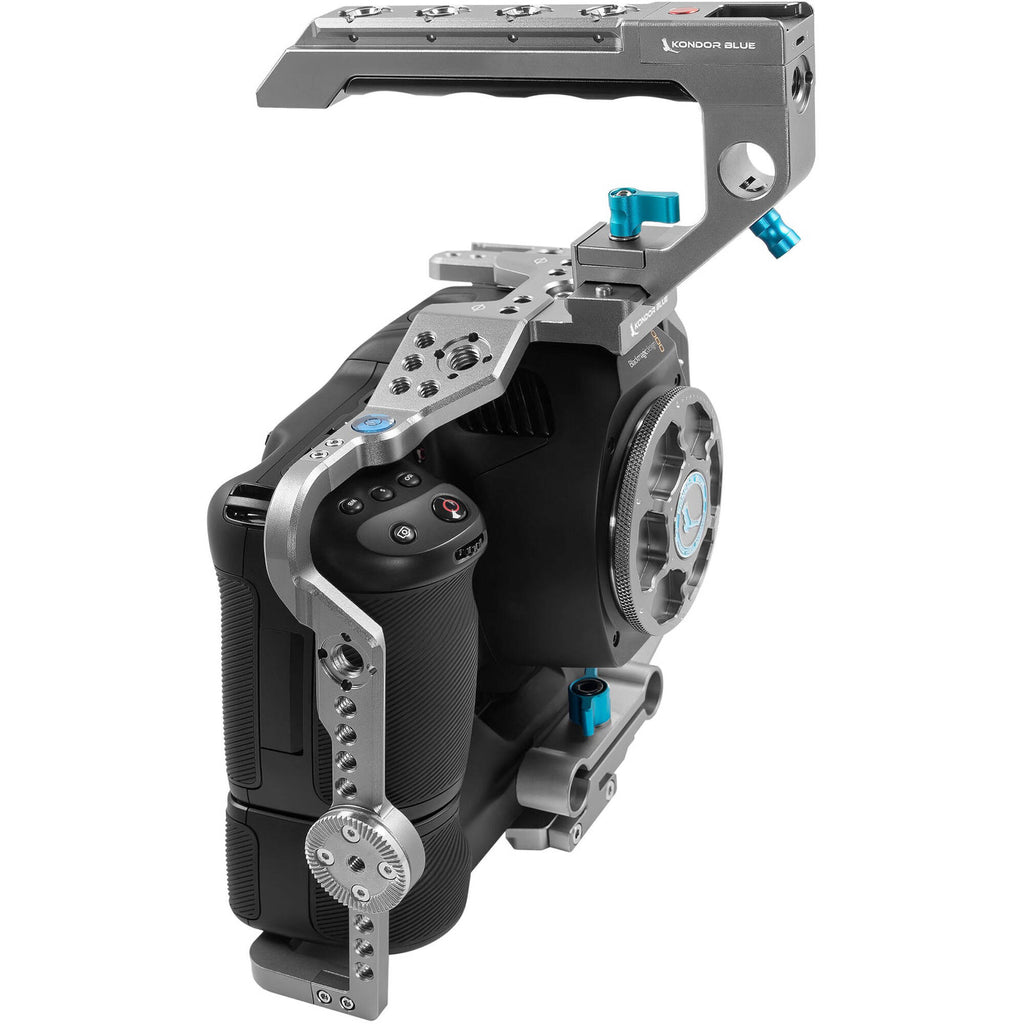

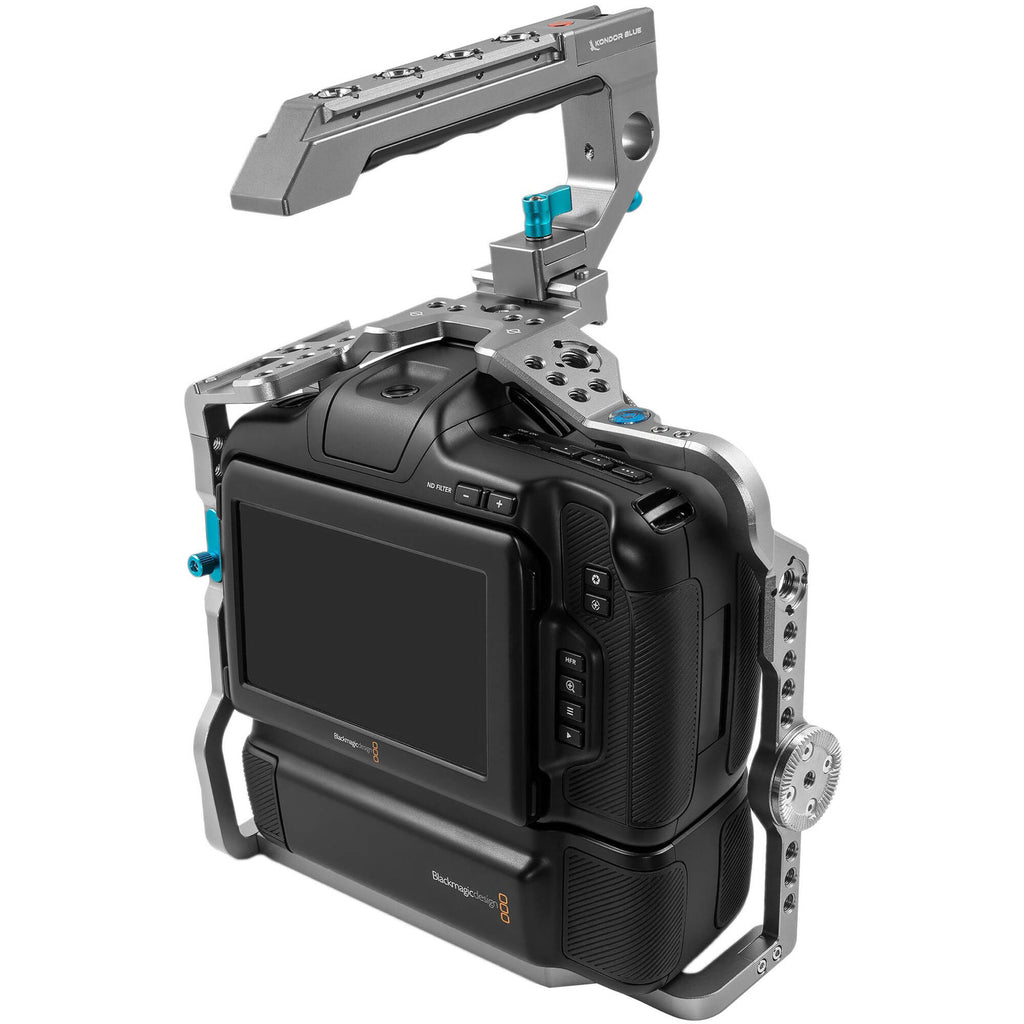

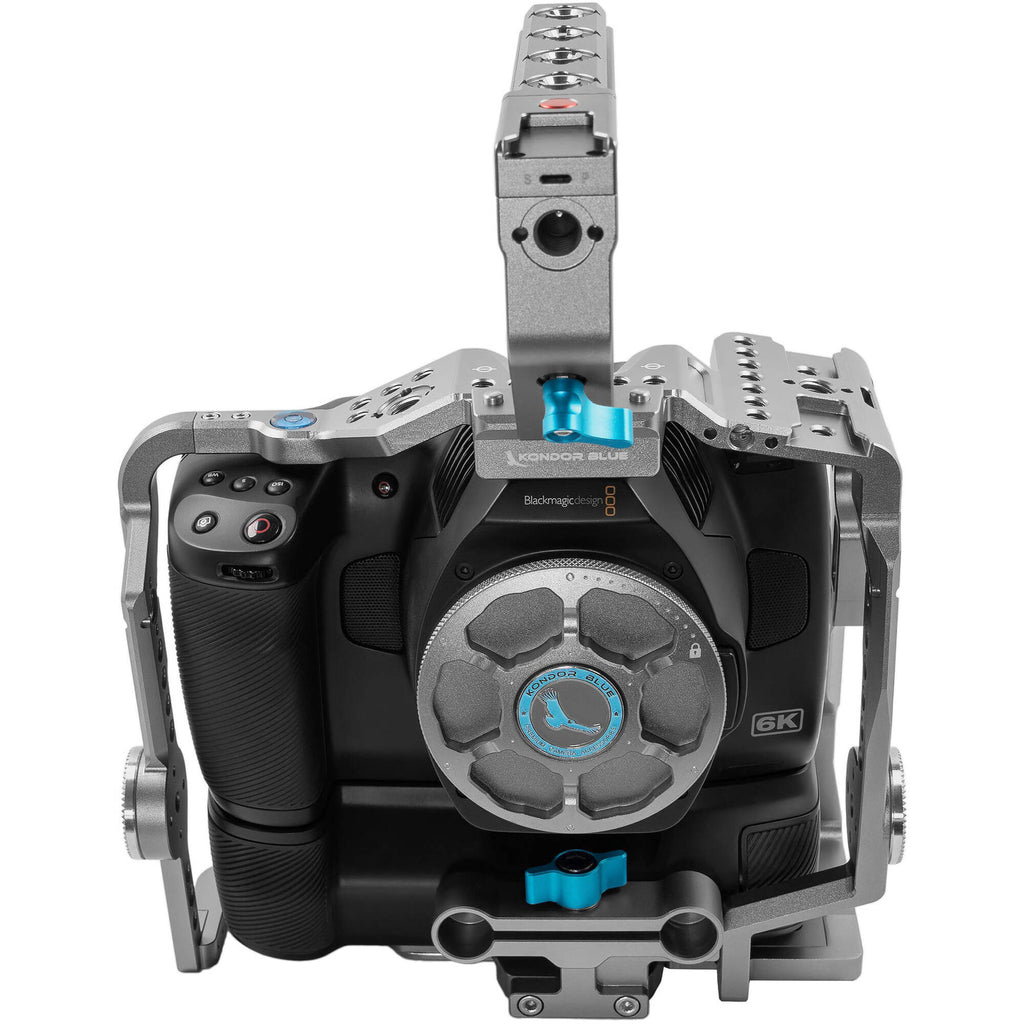

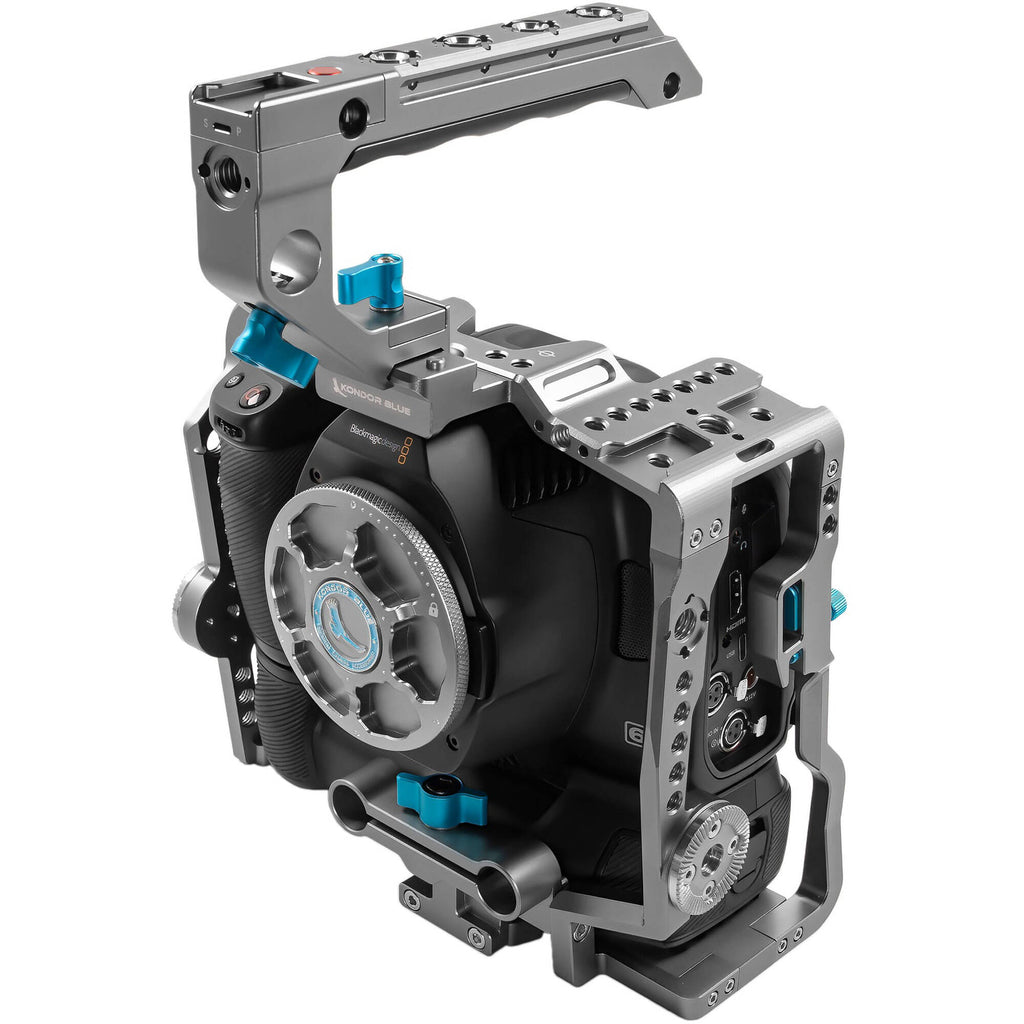

Kondor Blue Battery Grip Cage for BMPCC 6K Pro (Space Gray)
The Space Gray Battery Grip Cage for BMPCC 6K Pro from Kondor Blue both protects and provides multiple accessory mounts for your Blackmagic Pocket Cinema Camera 6K Pro equipped with a battery grip. This aluminum cage features a bubble level, two shoe mounts, top and side NATO rails, sensor-plane markers, and built-in HDMI and USB Type-C cable clamps. The bottom of the cage is compatible with the Kondor Blue bridge plate and features durable steel tripod threads.
BMPCC 6K Pro camera with attached battery grip
- Front NATO rail, bubble level
- 1/4"-20 and ARRI-style 3/8"-16 threads
- Sensor-plane markers, two shoe mounts
- Left and right NATO rails
- 1/4"-20 and ARRI-style 3/8"-16 threads
- Integrated HDMI and USB Type-C cable clamps
- Strap holes
- Contoured grip
- Durable helicoil steel tripod threads
- Kondor Blue bridge plate compatibility
- 1/4"-20 threads
- Magnetic tools
Kondor Blue Pro NATO Top Handle with Record Stop/Start Trigger (Space Gray)
Incorporating the Kondor Blue Pro NATO Top Handle into your camera rig setup enables you can secure an ergonomic, space gray handle with a remote start/stop trigger button via a NATO clamp and increases your accessory mounting options. Multiple 1/4"-20 threads and five 3/8"-16 ARRI anti-twist locating threads along with a NATO rail allow for a myriad of mounting options from secondary monitors to shotgun microphones and articulating arms. A cold shoe mount and 15mm rod clamp expand those capabilities even further.
The handle supports both Sony LANC and Panasonic control protocols, allowing it to be compatible with various camera systems via a separately available start/stop cable. A switch on the handle allows you to change between the two modes of camera control for compatibility with different brands and models. The grip of the handle has an ergonomic design to maximize comfort.
Compatible Camera Control Switch Modes
- "S" Control Mode: URSA Mini, all Sony cameras, Canon EOS C300/C500, Z CAMs
- "P" Control Mode: Canon EOS R/R5/R6, Panasonic Lumix S1H/GH5/GH5S, FUJIFILM X-T4
In the Box
- Kondor Blue Battery Grip Cage for BMPCC 6K Pro (Space Gray)
- Kondor Blue Pro NATO Top Handle with Record Stop/Start Trigger (Space Gray)
Kondor Blue Battery Grip Cage for BMPCC 6K Pro (Space Gray) Specs
| Support Type |
Cage |
| Grip Type |
Grip Required (Not Included) |
| Camera Compatibility |
Blackmagic Pocket Cinema Camera 6K Pro |
Mounting
| Battery Plate Type |
None |
| Accessory Mounting |
Multiple x ARRI Anti-Twist 3/8"-16 Thread, Multiple x 1/4"-20 Thread |
| Camera Mounting |
1/4"-20 Screw |
| Tripod Mounting |
1/4"-20 Thread, 3/8"-16 Thread |
| Shoe Mounting |
Cage: 2 x Cold Shoe |
| Rosettes |
None |
| Rail Mounting |
3 x NATO Rail |
General
| Materials |
Aluminum, Steel |
| Dimensions |
Not Specified by Manufacturer |
| Weight |
Not Specified by Manufacturer |
Packaging Info
| Package Weight |
1.805 lb |
| Box Dimensions (LxWxH) |
9.4 x 8.3 x 2.5" |
Kondor Blue Pro NATO Top Handle with Record Stop/Start Trigger (Space Gray) Specs
Mounting
| Attachment Method |
Attaches via Rail Clamp |
| Rod Standard |
15 mm (Unspecified Spacing) |
| Rod Ports |
1 x 15 mm Rod Port |
| Accessory Mounting |
5 x ARRI Anti-Twist 3/8"-16 Thread
Multiple x 1/4"-20 Thread |
| Shoe Mounting |
1 x Built-In Cold Shoe |
| Rosettes |
None |
| Rail Mounting |
1 x NATO Rail Clamp
1 x NATO Rail |
General
| Item Type |
Topside Handle |
| Rotation |
No |
| Built-In Controls |
Remote Trigger |
| Dimensions |
Not Specified by Manufacturer |
| Weight |
Not Specified by Manufacturer |
Packaging Info
| Package Weight |
0.65 lb |
| Box Dimensions (LxWxH) |
6.7 x 4.7 x 2.6" |
