Description

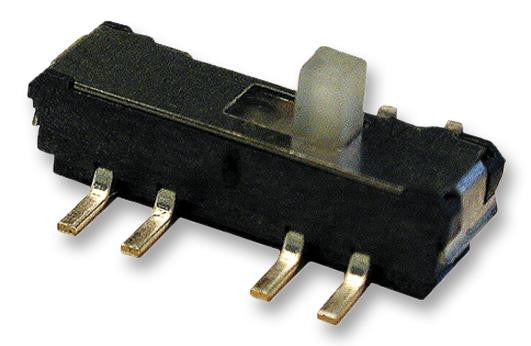

The MMS 238 T is a Microminiature Slide Switch with ON-ON-ON function, blue slide and reflow-soldering. It has silver-plated stainless steel contacts/terminals and non-shorting contact timing.
- <70mR Maximum contact resistance
- >100MR at 500VDC Insulation resistance
- 500V, 50Hz for the duration of 1 minute Dielectric strength
Applications
Industrial
Product details
| Orientation | Vertical |
| Contact Voltage DC Max | 12V |
| Switch Operation | On-On-On |
| Switch Mounting | SMD |
| Contact Configuration | - |
| Product Range | MMS Series |
| Contact Current Max | 300mA |
| Contact Voltage AC Max | - |
Other details
| Brand | KNITTER-SWITCH |
| Part Number | MMS 238 T |
| Quantity | Each |
| Technical Data Sheet EN |  |
