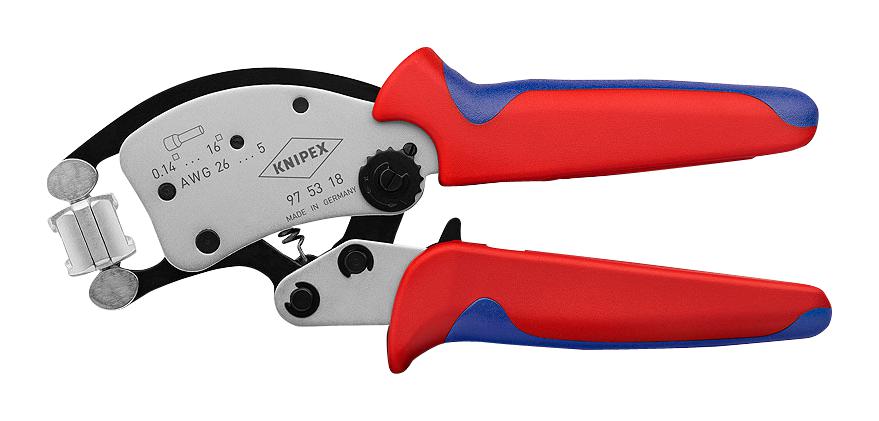

For crimping end sleeves (ferrules) according to DIN 46228 parts 1 + 4. Square crimp profile, high capacity range of 0.14 to 16 mm². 360° rotatable crimping die- with 8 tactile locking positions. Self-adjustment to the desired size of end sleeve (ferrule): no crimping errors due to using the wrong crimping die or to an incorrect setting. Crimping of twin end sleeves (ferrules) up to 2 x 6 mm² possible. Slim head for ideal accessibility. Repetitive, high crimping quality due to integral lock (self-releasing mechanism). Favourable lever ratio due to toggle lever. Crimping pressure has been set precisely (calibrated) in the factory, re-adjustable. Handy shape and low weight provide high operation comfort. Chrome vanadium electric steel in special quality, oil-hardened.
Other details
| Brand |
KNIPEX |
| Part Number |
97 53 18 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
