Description
KLIK KLIKBoks Overview
- 1Description
- 2
- 3
- 4
- 5Split-Screen Display
- 6Annotation & Whiteboarding
- 7Live Stream to YouTube
- 8KLIKStream Support
- 9USB Touch-Back (HID)
- 10Extensive Networking Options
- 11Moderated Access
- 12IR Remote Control
- 13The Daisy
- 14Guest Hotspot
- 15
The
KLIKBoks HUB Wireless Conferencing, Presentation & Collaboration System from
KLIK is a location-independent interactive conferencing hub system optimized for touch displays. It offers UHD 4K multi-screen sharing with the option to display up to four HD streams simultaneously and with full-screen mirroring and annotation functionality. Ethernet and Wi-Fi network connectivity allows the unit to extend beyond the boundaries of your network with support for up to 64 simultaneous client connections with ample processing power to deliver vibrant 4K images.
Touch or click to instantly take any stream full screen, then return to the split-screen view and enable another stream. An all-new hardware platform assures ample processing power to deliver crystal-clear 4K performance that supports four simultaneous 1080p content streams from computers, tablets, and smartphones, even without installing an app. The HUB integrates with your wired or wireless infrastructure and even supports guest users by making its own hotspot if needed.
Designed with remote users in mind, the HUB delivers industry-first remote streaming capability, allowing for real-time streaming to YouTube, with additional services coming soon. Allow your team to view the presentation in private, or open the stream to the public, with support for both modes of operation. Once your live stream is finished, your presentation is available as a recording that can be reviewed at a later time or downloaded right from YouTube.
Split-Screen Display
Display up to four streams simultaneously on the screen with UHD 4K UHD output. Just start a new stream, and the screen splits automatically to accommodate it, side-by-side with the first stream. Instantly maximize and zoom in for a closer look, then place it back in the split-screen view for comparison with other content. This is a whole new way to collaborate and share content.
Annotation & Whiteboarding
Draw, sketch, type, over shared content either in split-screen or full-screen view with the HUB's built-in annotation tools, no computer required. Or switch to white, green, or even graph-board mode to start collaborating on a clean sheet.
Live Stream to YouTube
Take your content beyond the confines of the network, and stream the session to remote participants, anywhere in the world. The HUB's unique live streaming feature can push content to your YouTube channel, for real-time viewing by remote members of your team. Set the stream as Public, Private, or Unlisted, to manage who can access the content. Record the session automatically, right on your YouTube channel for archiving or for later review.
KLIKStream Support
It's not always easy to see the screen, especially in a big classroom or conference room, so KLIK includes the KLIKStream remote viewing feature. Simply launch a browser and view the presentation, right on your own computer, tablet, or smartphone screen. And forget note-taking, because KLIKStream allows you to capture and save images of the presentation for later review.
USB Touch-Back (HID)
The best way to move your presentation along is by using a wireless presentation remote, and KLIK makes it easier than ever to share a remote among presenters. Simply plug the remote, or any keyboard, mouse, or pointing device into the KLIK, and it will control the computer that is streaming to it. The USB remote feature enables touchscreen support at the same time as remote control.
Extensive Networking Options
The HUB adapts to your infrastructure, not the other way around. Offering wired Ethernet and Wi-Fi network connection options, including 802.1x support, means you can place the unit where you need it, not just near a network jack. Integrate the HUB into your environment the way you want, with complete control over security and accessibility settings, or use its hotspot capability to add a guest network AP.
Moderated Access
Facilitated sessions are fluid and intuitive with KLIK's enhanced Moderator Mode, which puts stream selection and content preview right on the display screen. Use a mouse or a touch display to preview content from up to 64 presenters, then immediately push that content live to the display screen.
IR Remote Control
For rapid-fire switching between presenters, the HUB includes a wireless remote control. Just point at the screen and select the next user, just like changing the channel on a television set. The remote gives direct access to the media player and various settings, making it easy to use all functions without a computer.
The Daisy
A breakthrough in the collaboration space, the Daisy is the user interface designed for touch, but equally adept when used on any display. Whether you use a touchscreen or a mouse, the Daisy offers lightning-fast access to vital functions that let you focus on content, not technology. Get instant access to recording, streaming, content selection, and more, then tap to hide the Daisy and get back to your presentation.
Guest Hotspot
Simplify your network setup and make it easy for everyone to connect to the HUB, with its built-in Wi-Fi hotspot feature. Setup is easy; just name your guest hotspot and assign a password. Then, allow guests to connect directly to HUB's hotspot, and keep your internal network completely isolated from guests.
In the Box
- KLIK KLIKBoks Hub Wireless Conferencing, Presentation & Collaboration System
- IR Remote
- 5 VDC, 2A Power Adapter with USB to DC Barrel Cable
- HDMI Cable (5')
- IR Remote
- 2 x AAA Battery for Remote
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Split-Screen Display
- Annotation & Whiteboarding
- Live Stream to YouTube
- KLIKStream Support
- USB Touch-Back (HID)
- Extensive Networking Options
- Moderated Access
- IR Remote Control
- The Daisy
- Guest Hotspot
KLIK KLIKBoks Specs
General
| OS Compatibility |
Windows, macOS, Chrome
|
| Streaming |
AirPlay (Mac OSX, iOS Devices), Miracast (Windows 8.1 or Later, Android Devices)
|
| Control Options |
On-Screen Display, Cloud Management Portal (Q2-2020)
|
| Remote Control |
Wireless, IR Multifunction Remote Control, Onboard IR Receiver and Blaster Output
|
| LED Indicators |
Front-Mounted Power and Network Activity Indicators
|
| Video Resolution |
4K at 60 fps, 1080p at 50 and 60 fps, 720p, 576p, 480p
|
| Audio Output |
Stereo, 16-Bit, 44.1 kHz, Dual-RCA Panel-Mounted Connectors, Parallel to HDMI Audio
|
Inputs / Outputs

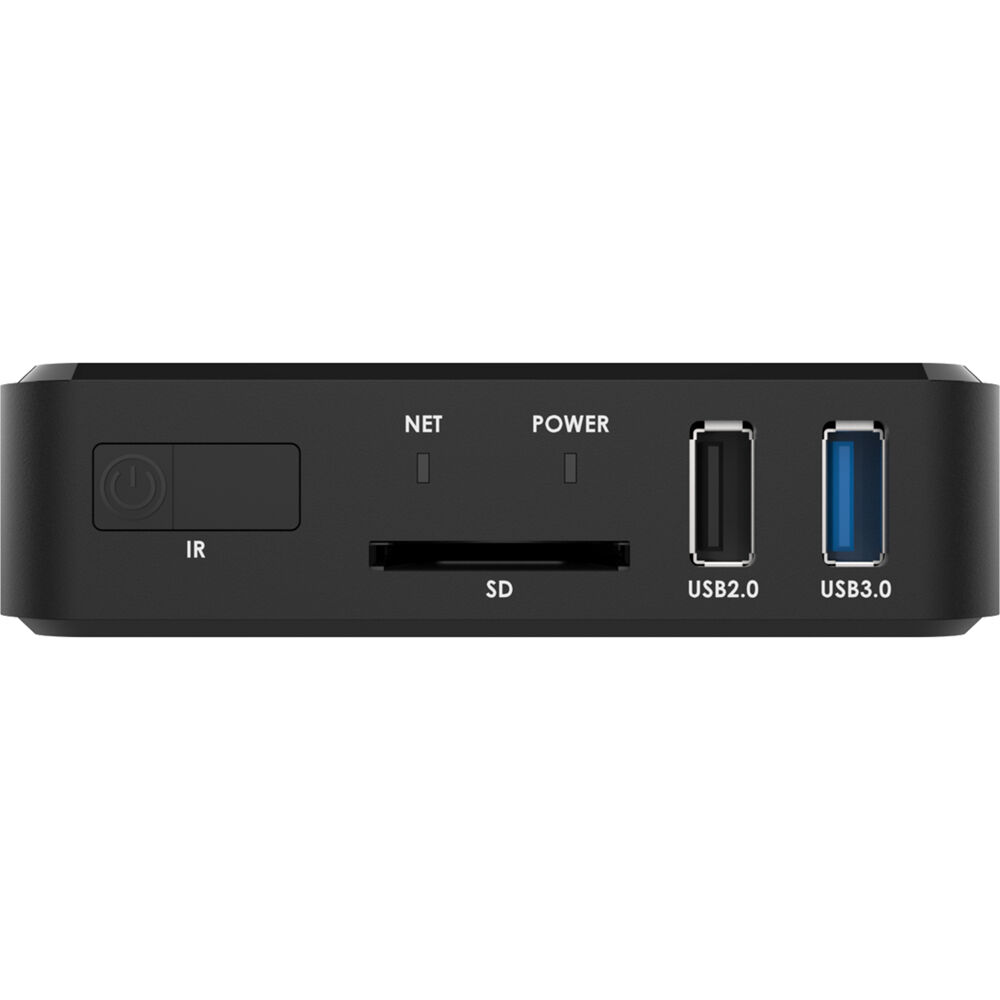

| USB I/O |
1 x USB-A 2.0 Female Input/Output
1 x USB-A 3.0 / 3.1/3.2 Gen 1 Female Input/Output |

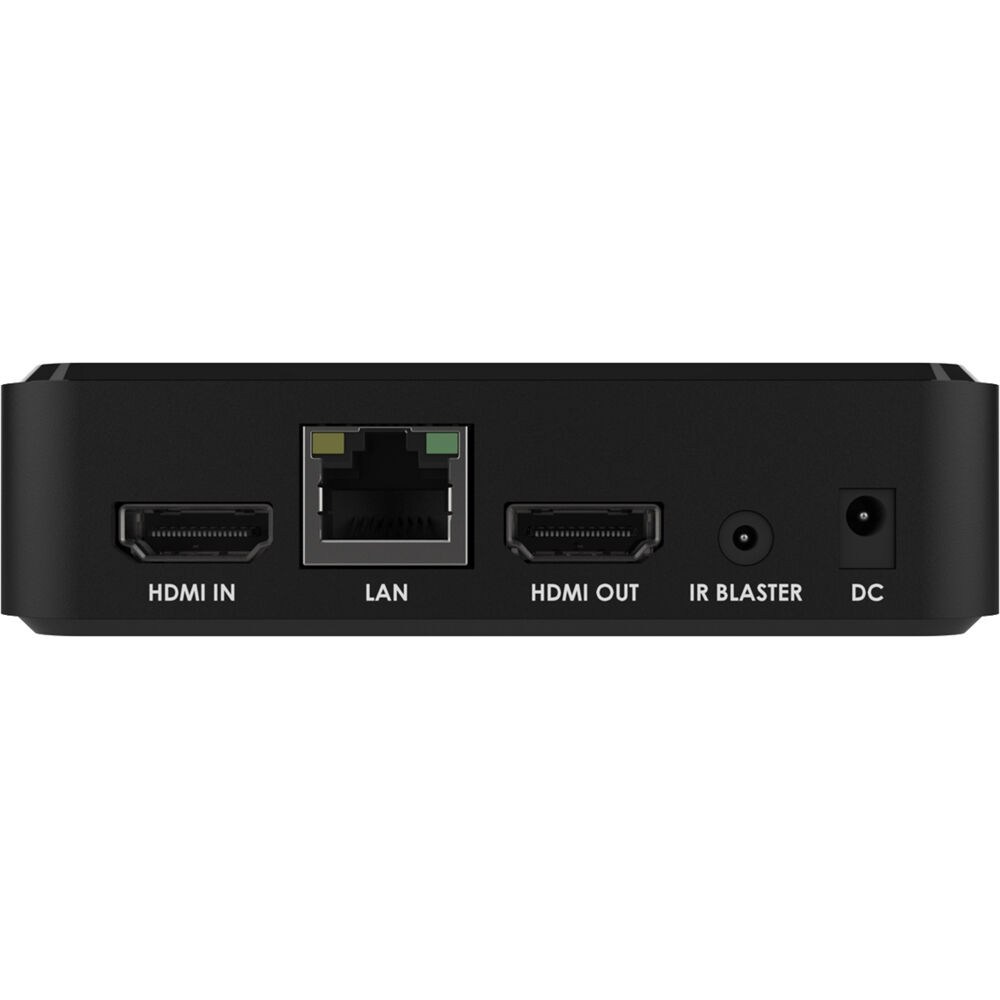

| Video I/O |
1 x HDMI 2.0 Input
1 x HDMI 1.4 Output |
| Other I/O |
1 x RJ45 Port (Ethernet LAN)
1 x IR Blaster Port 1 x SD Memory Card Slot |
Wireless
| Wireless |
Wi-Fi 5 (802.11ac)
*Built-In |
| Wi-Fi |
Yes
|
Power
| Power Source |
USB (Included)
|
| AC Input Power |
100 to 260 VAC, 50 / 60 Hz at 2 A
|
| DC Input Power |
5 VDC at 2 A
|
Physical
| Dimensions |
4.2 x 3.9 x 1.1" / 106 x 100 x 27 mm
|
| Weight |
0.5 lb / 0.2 kg
|
Packaging Info
| Package Weight |
1.44 lb
|
| Box Dimensions (LxWxH) |
9.8 x 7.7 x 2.9"
|
