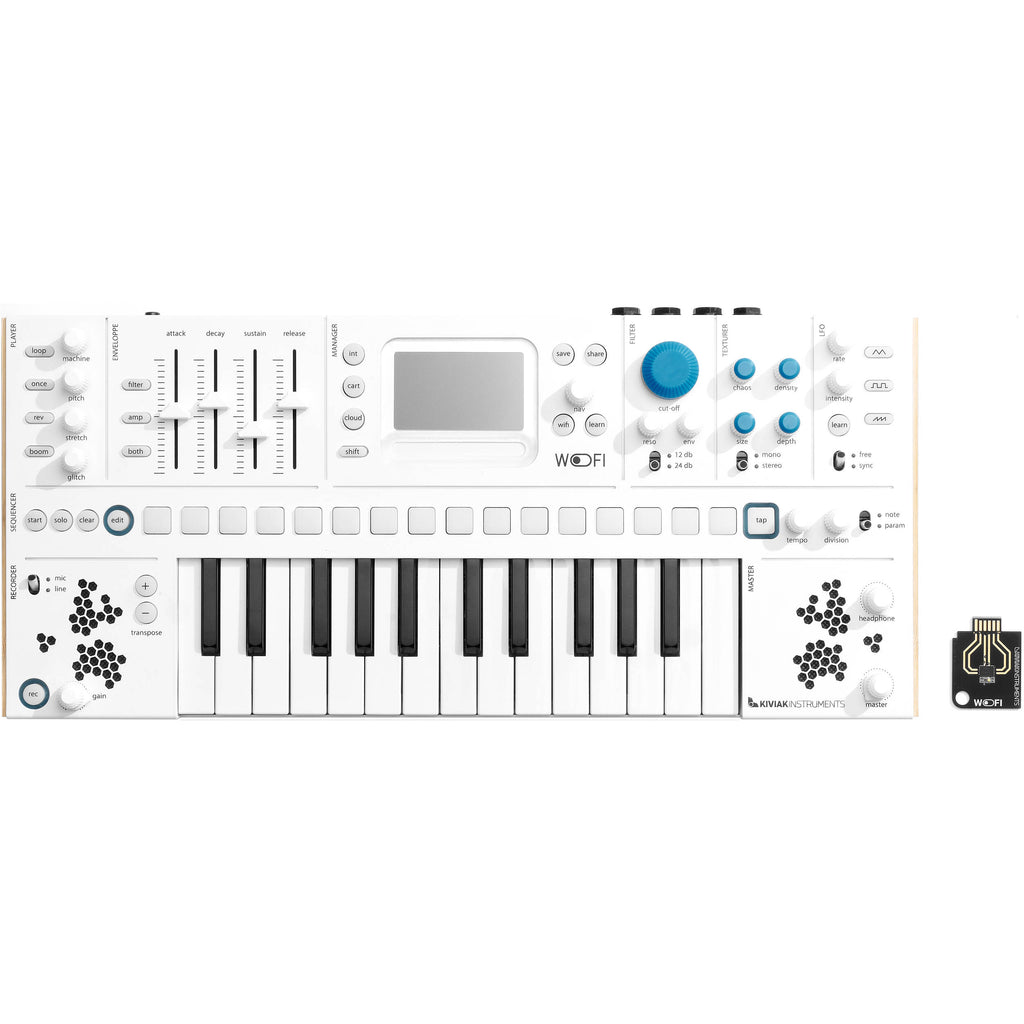

Kiviak Instruments WoFI Portable Sampler Keyboard with WiFi

Manipulate and mangle samples with the Kiviak Instruments WoFI, a compact sampler keyboard with built-in internet (Wi-Fi) capabilities well suited for musicians and producers who are on the go. The instrument features a 25-note keyboard, a 16-step sequencer, and a remarkable and innovative effect module called Texturer, which combines elements of shimmer effects with granular synthesis to create unbelievable and inspiring sounds.

WoFI comes with a rechargeable battery provides up to 4 hours of playtime, allowing you to create music anywhere you go without worrying about power. You can also share your patches and access sound banks from other sound designers through the mywo.fi community platform. Record via the stereo 1/4" inputs or use the built-in microphone. There are independent main and headphone output level controls. Explore new sonic territories and endless possibilities with WoFI.

Instrument Overview

PLAYER

• The Player lets you color your sound with emulations of classic samplers and different sample player modes. Make it clean, dirty, or anywhere in between.

ENVELOPE

• Sculpt your sound with the Envelope that can be assigned to WoFi's amp, filter, or both.

MANAGER

• With the Manager and its display, get visual feedback on all your tweakings, manage your sample library, access mywo.fi content through WiFi, and play with the touch strip. There is no subscription needed for mywo.fi. Having WoFi gives you free access to community.

FILTER

• The Filter lets you play the WoFi like classic subtractive synthesizers. It's a digital low-pass filter with two different slopes (12 and 24 dB) and a tasty resonance.

TEXTURER

• The Texturer is here to take you to unexplored sonic territories. Elevate your sound with this effect halfway between a shimmer FX and granular synthesis.

LFO

• The LFO lets you modulate your creation. With three different wave shapes, assign it to any parameter of the front panel and give motion to the sound.

SEQUENCER

• The Sequencer lets you build melodic patterns with 16 polyphonic steps. It can be used as an arpeggiator. You can have your two hands free to play along with the sequence and tweak your sound while it is looping. And you can step-sequence parameters, which makes it another modulation source in addition of the LFO and the Envelope.

RECORDER

• The Recorder lets you either capture a sample from the line in or directly from the built-in microphone. It's easy as a pie�pick your audio source with the switch, click on record, and voilà�just like with the iconic first keyboard samplers.

MASTER

• The WoFI is made to be played in many contexts, from your couch to the studio, so it has a full connectivity and two stereo audio outputs: one for your headphones and one for a master line out. You also get a WoFi internal speaker. Set your volumes easily.

Additional Details

PLAYER

• 48 kHz 16-bit
• Direct streaming from flash, no preloading
• Polyphony 10 voices

RECORDER

• 48 kHz 16-bits mono
• Line / dynamic microphone / integrated microphone
• Gain adjust: -6 and 22 dB
• Eurorack level compliant

MEMORY

• Flash embedded memory: 100MB
• Flash cartridge memory: 100MB
• Up to 200 User Patches + 50 Presets

(100 MB allow storing 18 minutes of audio)

SEQUENCER

• 16 steps track for notes
• 16 keys track for parameters sequencing

DSP

• Real time processing (No Preprocessing)
• Interpolation modes: sample & hold, linear, whittaker-shannon
• Pitch shift
• Time stretch
• Bit crusher
• Texturer
• Machine rendering emulation
• Resonant state variable filter (12 dB/oct or 24 dB/oct)
• Parameter modulation from different sources: enveloppe, LFO, sequencer automations, external modulation (CV/MIDI), after touch, touch strip
• Texturer: self-mixing renderer based on granular sampling�8 grains, multitap harmonizer

FILE SERVICING

• Direct file system management through USB
• Embedded sample editor

NETWORK

• WIFI connectivity, up to 16 key pass
• Cloud access: Patch/sample upload and download, sharing or backup.

CONNECTIVITY

• Sync clock + start/stop
• CV input, Gate input
• CV output, modulation output, gate output
• MIDI in, out, through DIN+USB
• Line In, line out, headphones

MISCELLANEOUS

• USB powered
• Embedded battery, roughly 4 h
• Integrated microphone
• Integrated speaker
• Full backup to cartridge or mywo.fi
• User friendly workflow

Kiviak Instruments WoFi Specs

Sound Generation	Digital
Keyboard	25 Mini Keys with Synth Action
Touch Sensitivity	No
Expression Controls	1x Ribbon Controller
Number of Sounds, Kits, or Samples	200x User Sound Preset 50x Factory Sound Preset
Maximum Polyphony	10 Voice
Performance Functions	Arpeggiator, Sequencer, Transpose
Audio I/O	2x 1/4" Stereo Line Input 2x 1/4" Stereo Main/Line Output 1x 1/8" / 3.5 mm Unbalanced Stereo Headphone Output
Pedal Support	No
MIDI I/O	1x DIN 5-Pin Input 1x DIN 5-Pin Output 1x DIN 5-Pin Thru
USB I/O	1x USB-B (USB 2.0, Bus Power, Host Connection, MIDI)

Item Type	Keyboard Workstation
Sound Generation	Digital
Keyboard	25 Mini Keys with Synth Action
Touch Sensitivity	No
Aftertouch	No Aftertouch Support
Expression Controls	1x Ribbon Controller
Transport Controls	Yes: Record, Play
Built-In Microphone	Yes
Display	Monochrome OLED
AD/DA Conversion	16-Bit / 48 kHz

Number of Sounds, Kits, or Samples	200x User Sound Preset 50x Factory Sound Preset
Maximum Polyphony	10 Voice
Internal Memory	Factory Content: 100 MB User Storage: 100 MB
Sampling Formats	PCM - 48 kHz / 16-Bit (Mono)
Maximum Sample Length	18 Minutes Total for All Samples (at 48 kHz, Mono)
Built-In Effects	Yes
Performance Functions	Arpeggiator, Sequencer, Transpose
Built-In Speaker	Yes

Amplifiers	1x DCA per Voice
Envelopes	1x Amp/Filter Envelope Generator: Attack, Decay, Sustain, Release
Filters	Number of Filters: 1 per Voice Characteristic: Digital Type: Low-Pass Slope: 2-Pole/12 dB, 4-Pole/24 dB (LPF) Controls: Cutoff, Resonance, Envelope Amount
LFOs	Number of LFOs: 1x Global Waveforms: Sawtooth Up, Square, Triangle Controls/Modes: Clock Sync, LFO Sync, Rate/Frequency

Sequencer	Yes
Motion Sequencing	Yes
Arpeggiator	Yes

Audio I/O	2x 1/4" Stereo Line Input 2x 1/4" Stereo Main/Line Output 1x 1/8" / 3.5 mm Unbalanced Stereo Headphone Output
Pedal Support	No
MIDI I/O	1x DIN 5-Pin Input 1x DIN 5-Pin Output 1x DIN 5-Pin Thru
CV/Gate I/O	1x 1/8" / 3.5 mm TS CV Input 1x 1/8" / 3.5 mm TS Gate Input 1x 1/8" / 3.5 mm TS CV Output 1x 1/8" / 3.5 mm TS Gate Output 1x 1/8" / 3.5 mm TS Modulation CV Output
Patch Points	3x 1/8" / 3.5 mm Input 3x 1/8" / 3.5 mm Output
Sync I/O	1x 1/8" / 3.5 mm TS Clock Input 1x 1/8" / 3.5 mm Clock Output
Network I/O	No
USB I/O	1x USB-B (USB 2.0, Bus Power, Host Connection, MIDI)
Media/Memory Card Slot	Single Slot: CompactFlash

Included Software	No
Mobile App Compatible	No

Power Requirements	Battery, USB Bus Power
Battery Type	1x Internal Rechargeable
Expected Battery Life	4 Hours

Color	White / Woodgrain
Included Accessories	USB Cable
Dimensions	20.5 x 9.1 x 2.8" / 52 x 23 x 7 cm

Package Weight	9.035 lb
Box Dimensions (LxWxH)	27.1 x 12.6 x 3.9"
