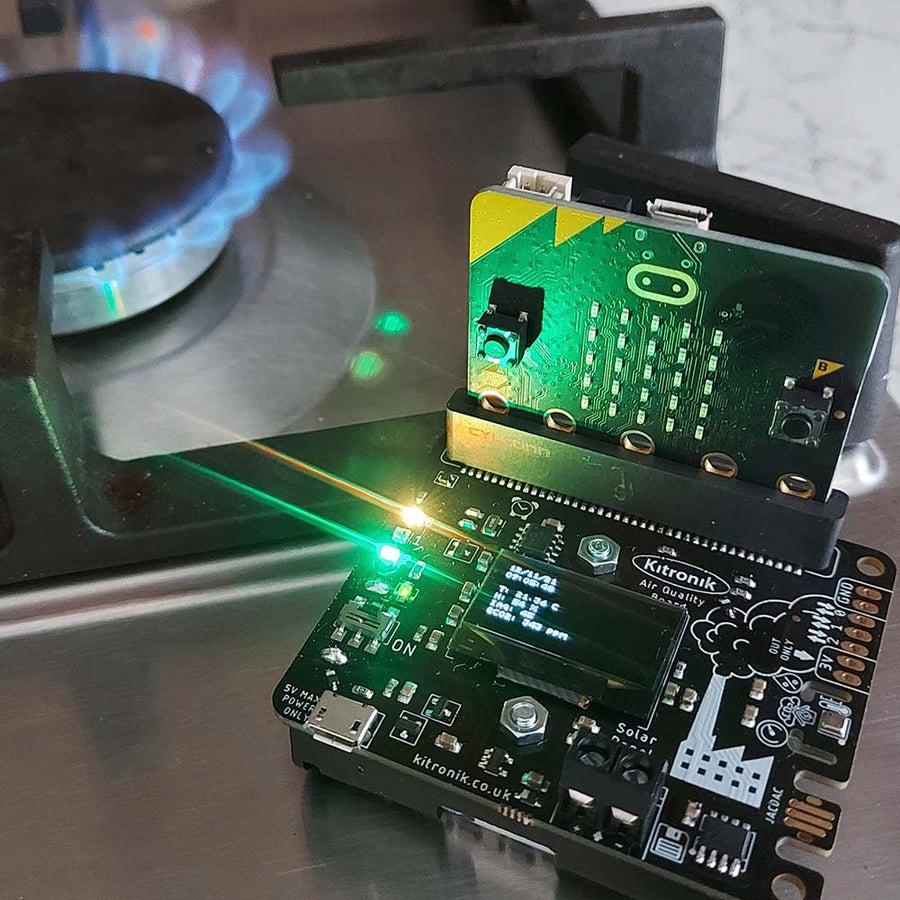

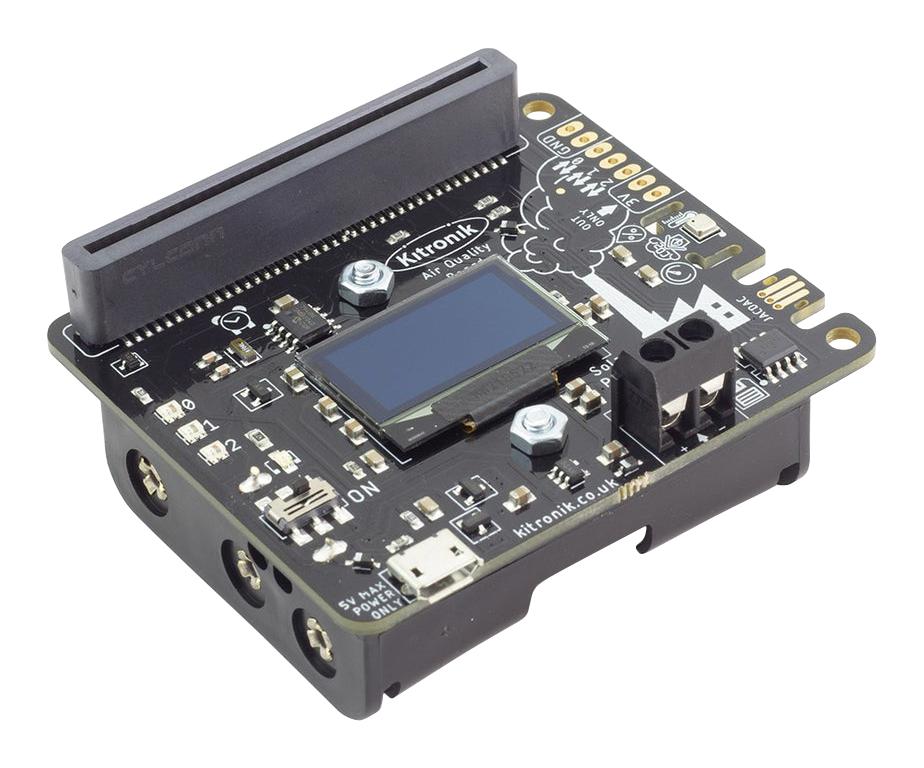

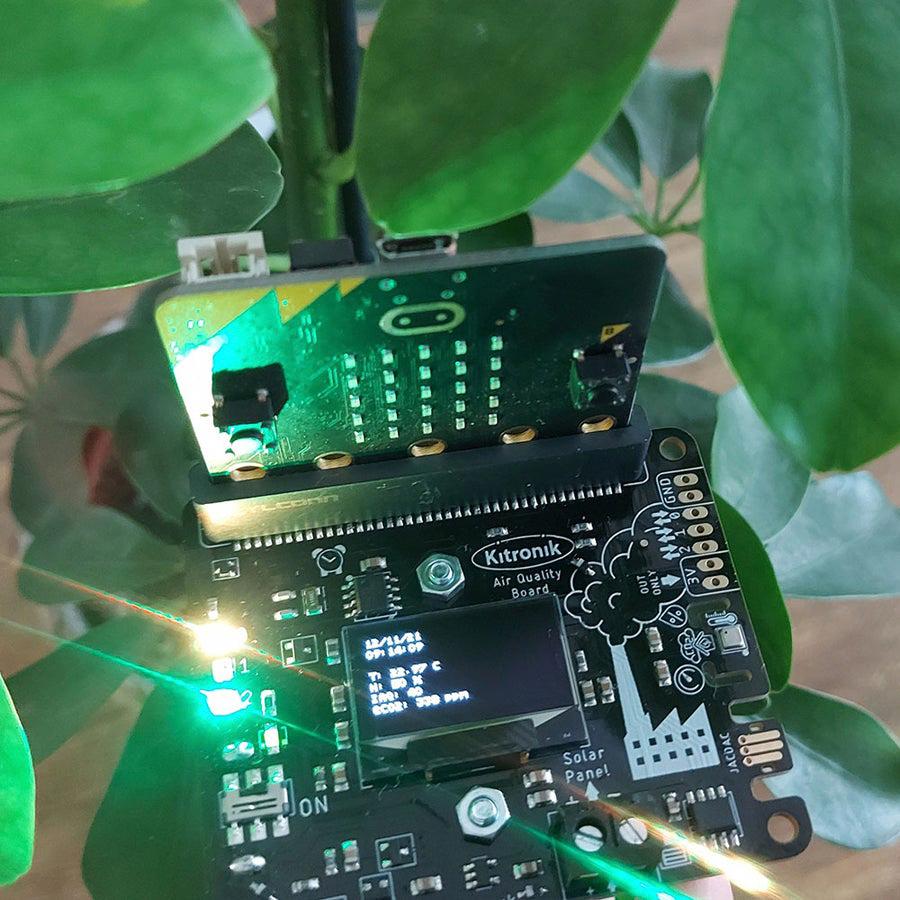

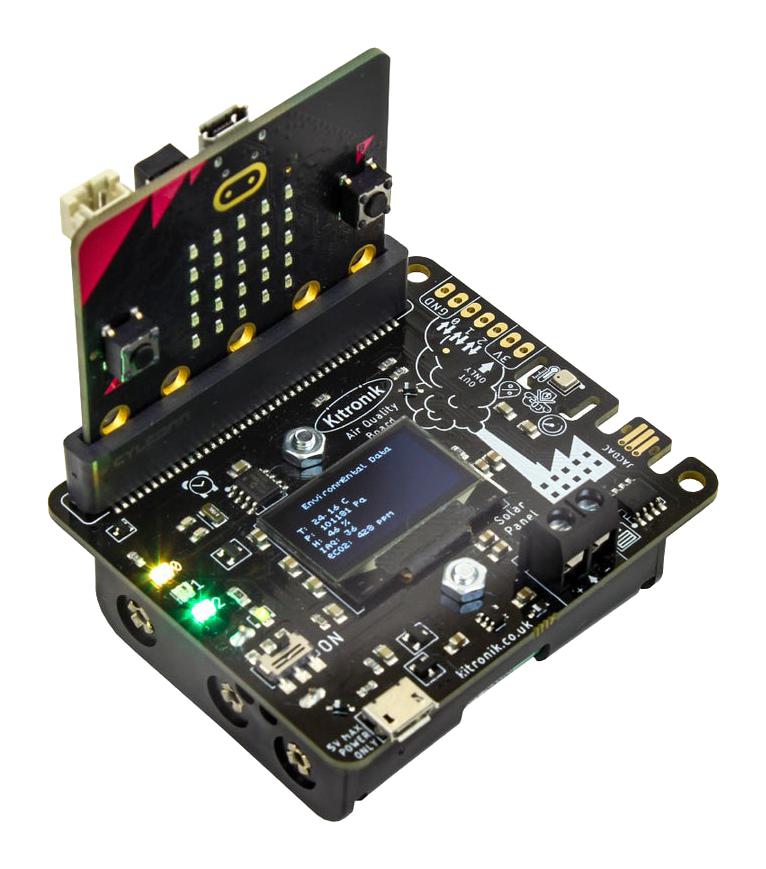

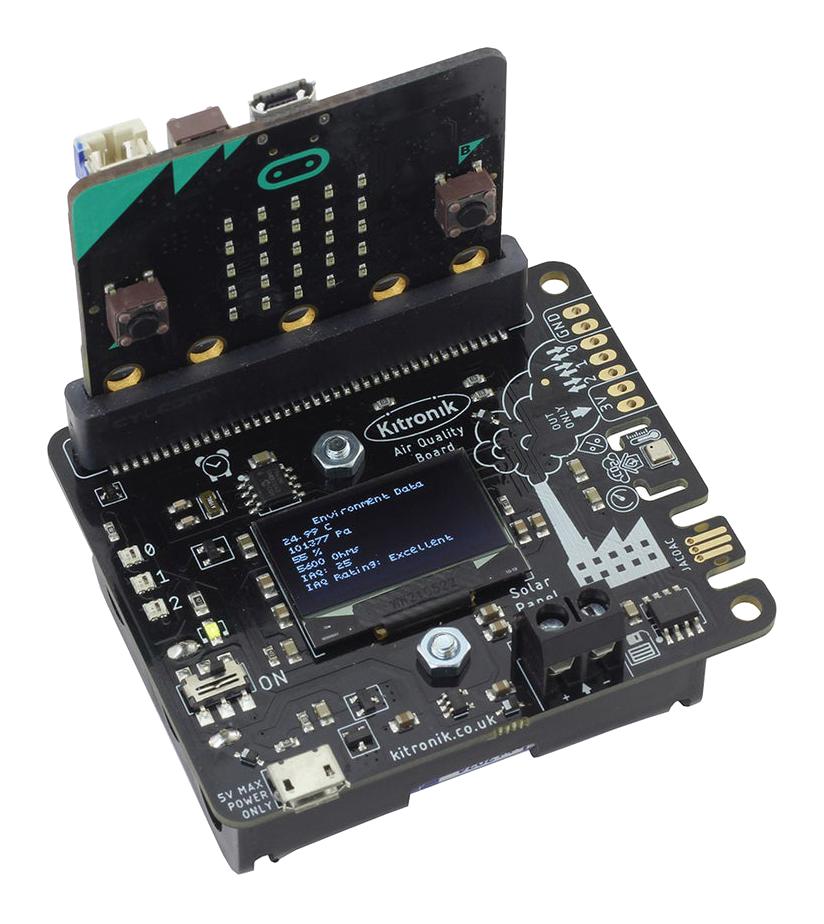

Air quality and environmental board for micro:bit provides a complete air monitoring and reporting solution for the BBC micro:bit. The wealth of on-board sensors and connection points allow to collect extensive air quality data that can be stored in on-board memory and displayed on the OLED screen or transferred to a computer for analysis.
- An all in one Air Quality monitoring and reporting solution for the BBC micro:bit
- Measure temperature, pressure, humidity, air quality index and eCO2
- Pins 0, 1 and 2 are broken out to solder pads for additional I/O
- Black and white 128 x 64 OLED display screen and 3 status ZIP LEDs for visually displaying data
- RTC and 1Mbit of on-board EEPROM memory enable timestamped data logging and long term data storage
- On-line MakeCode tutorials that introduce you to all of the boards key features
- Run long term monitoring experiments in the classroom throughout the school year
- There is an integrated edge connector for the micro:bit to slot into
- It can be coded with MakeCode/Javascript/Python
Contents

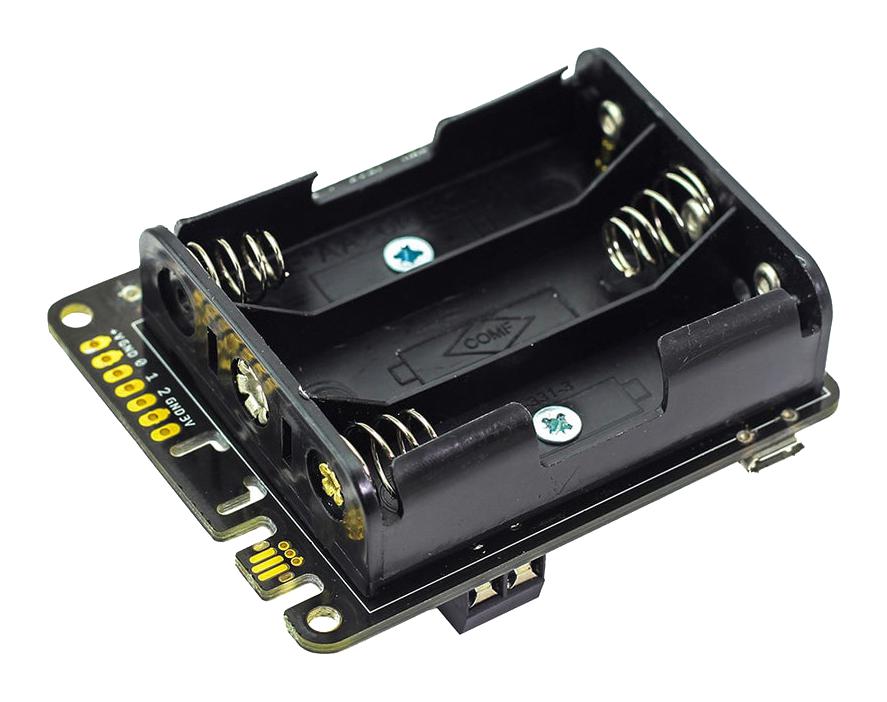

1 x Kitronik Air Quality Board for BBC micro:bit, 1 x 3xAA battery holder, 1 x USB lead.
Product details
| Silicon Manufacturer |
- |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
- |
| Silicon Family Name |
- |
| For Use With |
BBC Micro:bit |
| Kit Contents |
Air Quality & Environmental Board |
Other details
| Brand |
KITRONIK |
| Part Number |
5674 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
