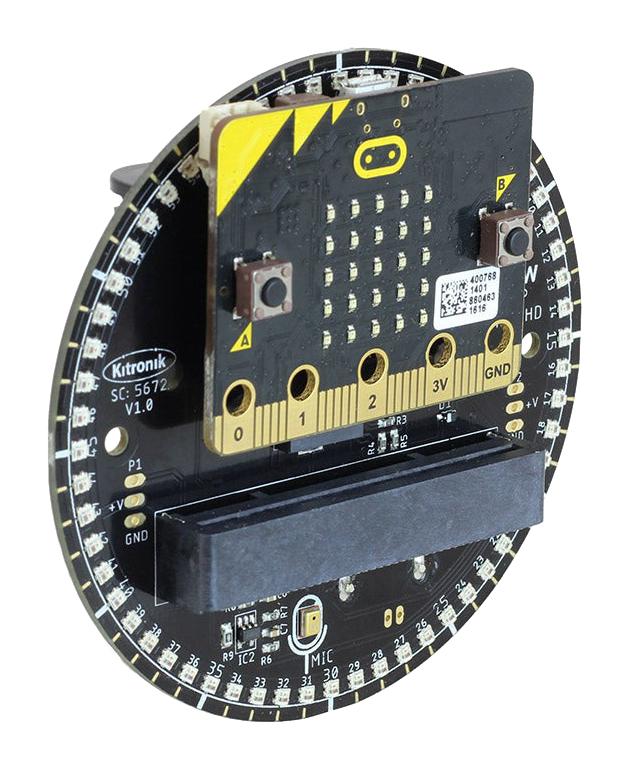

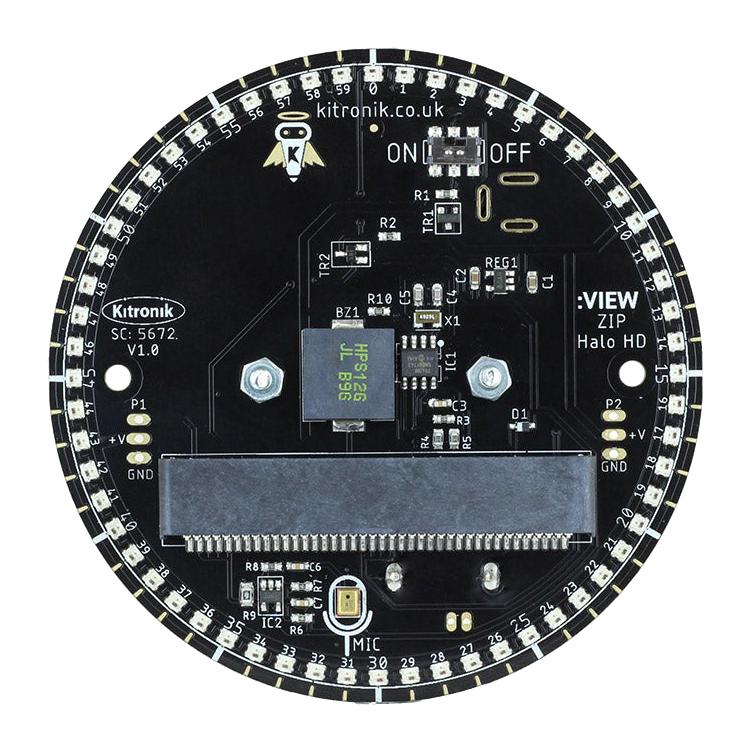

ZIP Halo HD board for the BBC micro:bit incorporates 60 individually addressable full colour ZIP LEDs. It also breaks out P1 and P2 to a standard 0.1" footprint, it features a MEMS microphone for detection of sound and a piezo buzzer to play sound. If that weren't enough, it also features an on-board real time clock (RTC) controlled by I2C lines from the microbit. The board also has two M3 mounting holes.

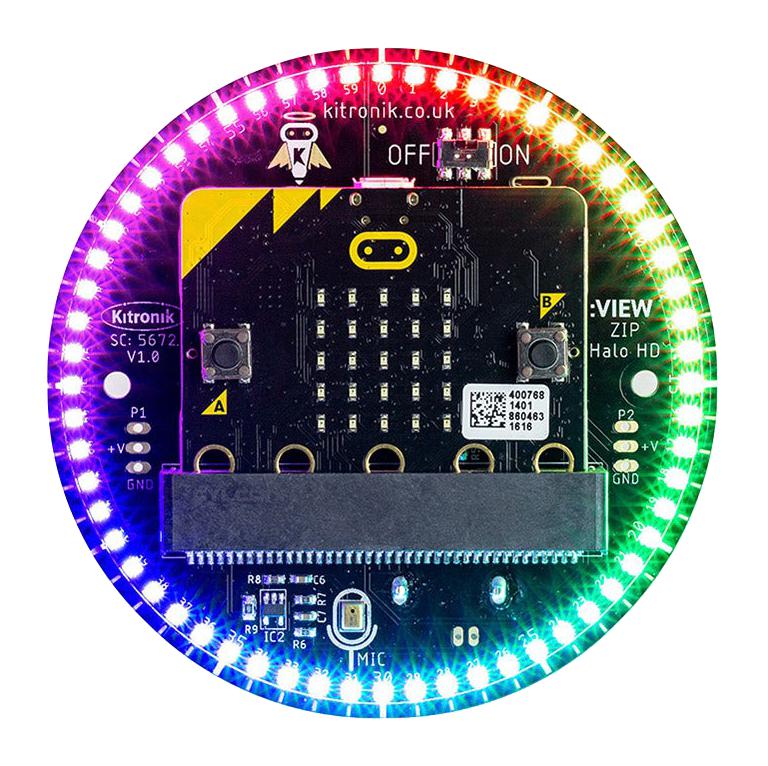

- The board features 60 individually addressable full colour ZIP LEDs
- It breaks out P1 and P2 to a standard 0.1" footprint
- It's wired for sound with a MEMS microphone and a piezo buzzer
- It has an on-board Real time clock (RTC) controlled by I2C lines
- Plug n play with the on-board edge connector, no tools required

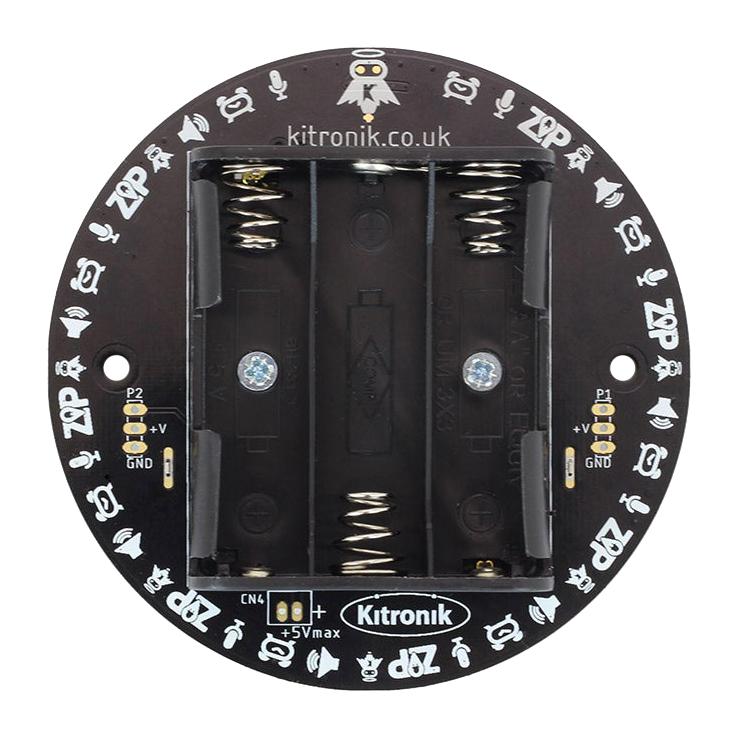

- The board has a 3xAA battery holder mounted on the rear
- The on/off switch helps you maximise battery life
- It can be coded with MakeCode blocks via our custom blocks or with MicroPython
- 2 x M3 mounting holes, for secure projects
Footnotes Note: micro:bit for illustration only, not included. To protect the micro:bit, if power is supplied through the micro:bit the Halo HD will not illuminate. Warnings Note: Zip LEDs may become hot if used at high brightness for prolonged periods
Other details
| Brand |
KITRONIK |
| Part Number |
5672 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
