Breadboard breakout for the BBC micro:bit allows the user to plug a BBC microbit into a standard 2.54mm pitch breadboard. Two 11 way pin headers are used to make connections into the breadboard. The micro:bit slots into the edge connector on the top side of the PCB. No extra tools are required for installation. The front of the BBC micro:bit (the side with the LEDs) should be inserted facing the same side as the 3V pin. The PCB is designed to plug across the middle slot of a breadboard, the same placement as an IC component.

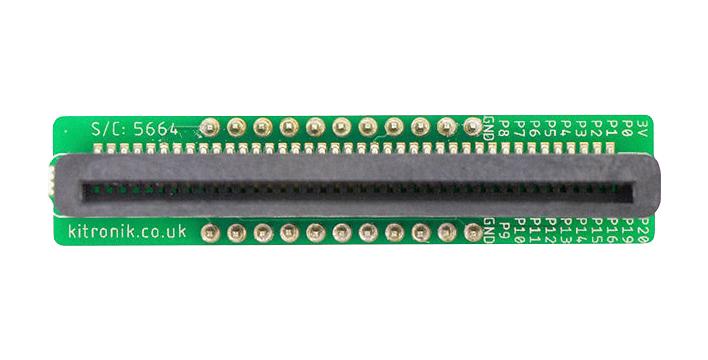

- The microbit slots into the on-board edge connector

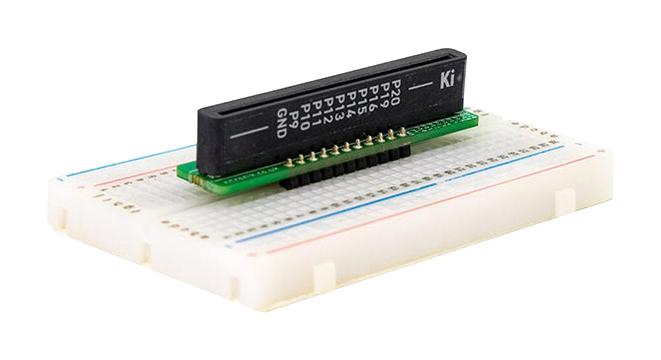

- Breakout board plugs straight across middle slot of standard 2.54mm pitch breadboard

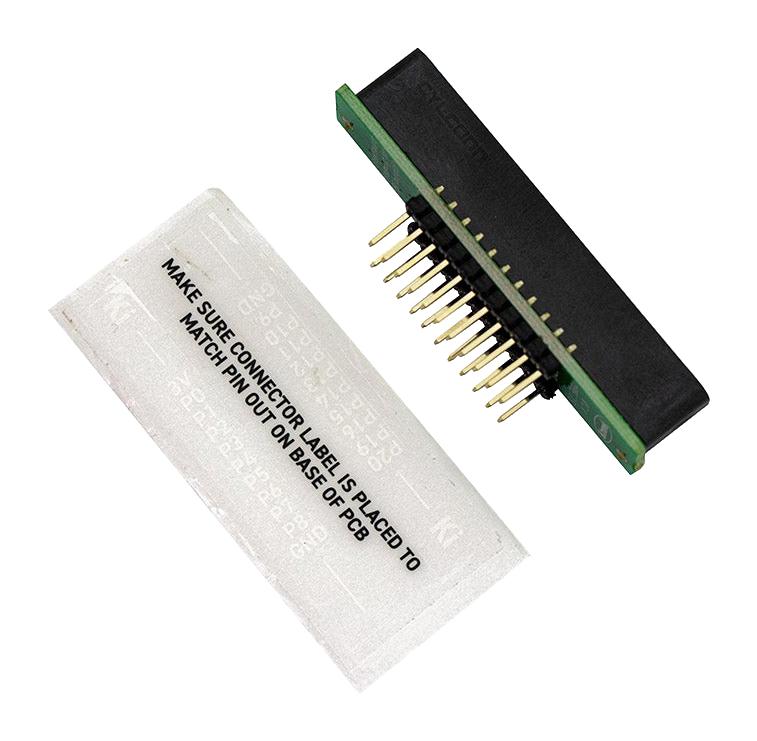

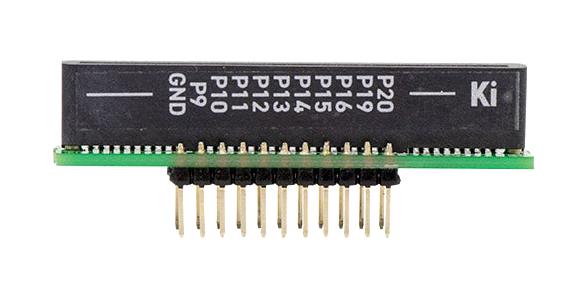

- The microbits pins are broken out to 2 x 11 way header pins
- Use jumper wires to connect from the header pins to the breadboard
- No tools or soldering required for installation
- The microbit to breadboard prototyping made easy
Footnotes Note: Breadboard for illustration only, not included
Product details
| Accessory Type |
Breakout Board |
| For Use With |
BBC micro:bit |
| Product Range |
- |
Other details
| Brand |
KITRONIK |
| Part Number |
5664 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
