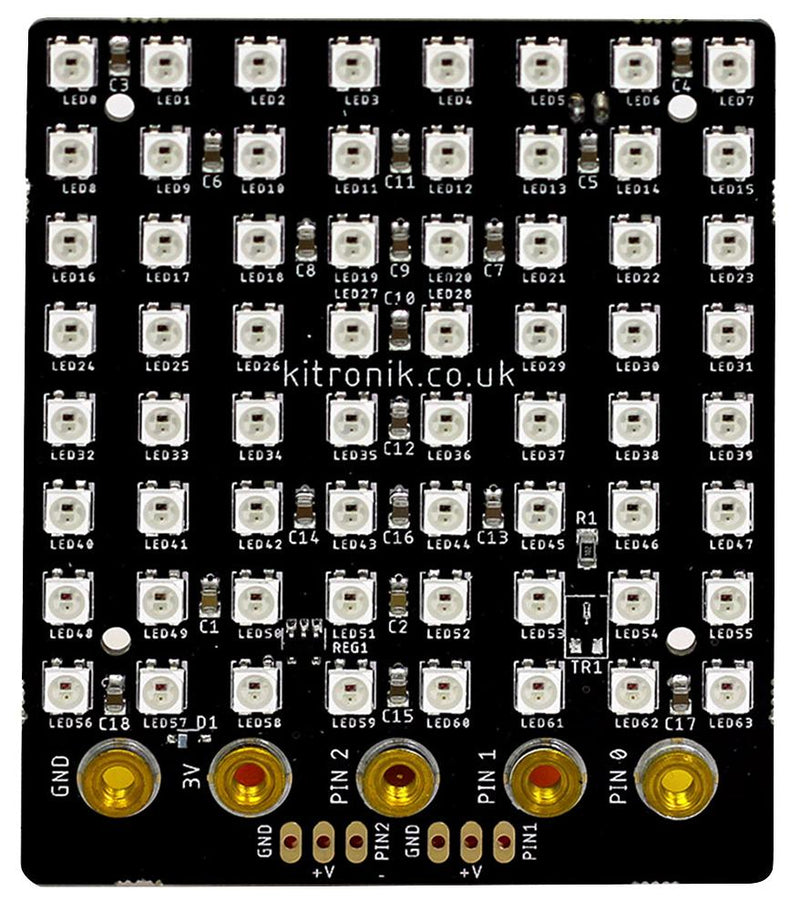

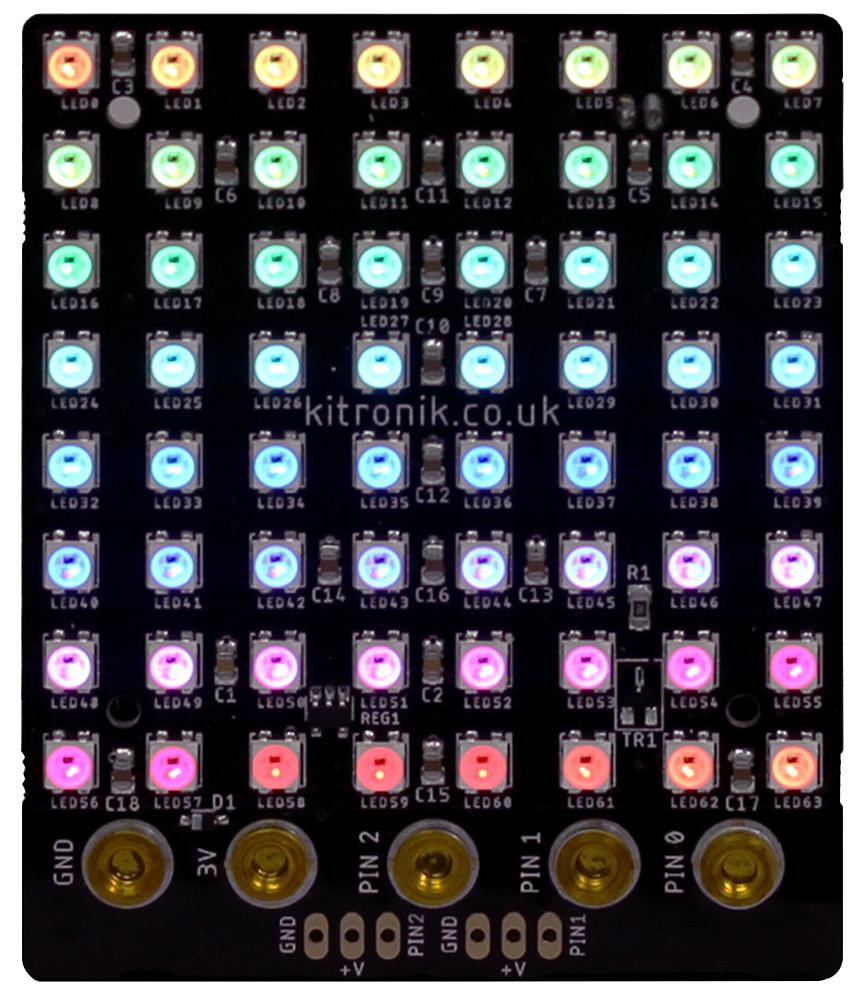

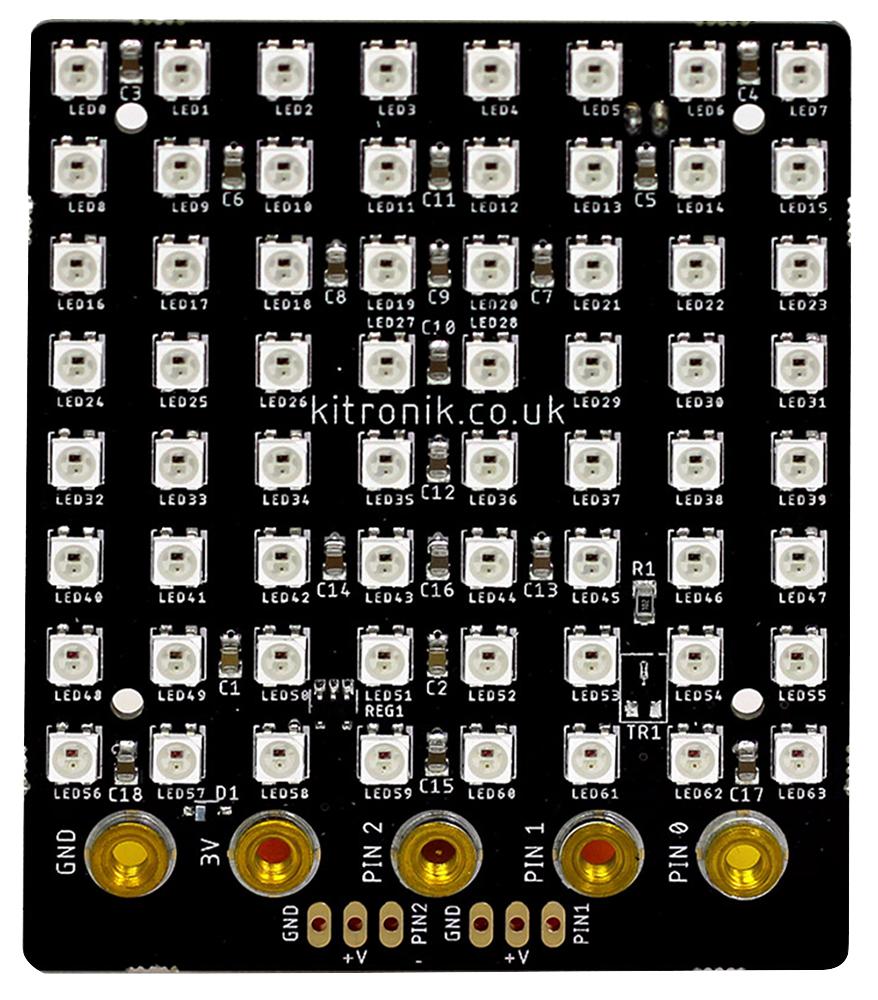

This LED display board for the micro:bit features 64 individually addressable Zip� LEDs arranged in an 8x8 grid that is ideal for creating colourful patterns and scrolling text messages - multiple Tiles can be linked up to form even bigger display boards!
- Multiple expansion points for linking up additional Tiles for even bigger displays
- Zip� LEDs are compatible with any WS2812B driver code and can be programmed with the Microsoft MakeCode Editor
- Zip� LEDs are also compatible with the Adafruit NeoPixel blocks for coding purposes

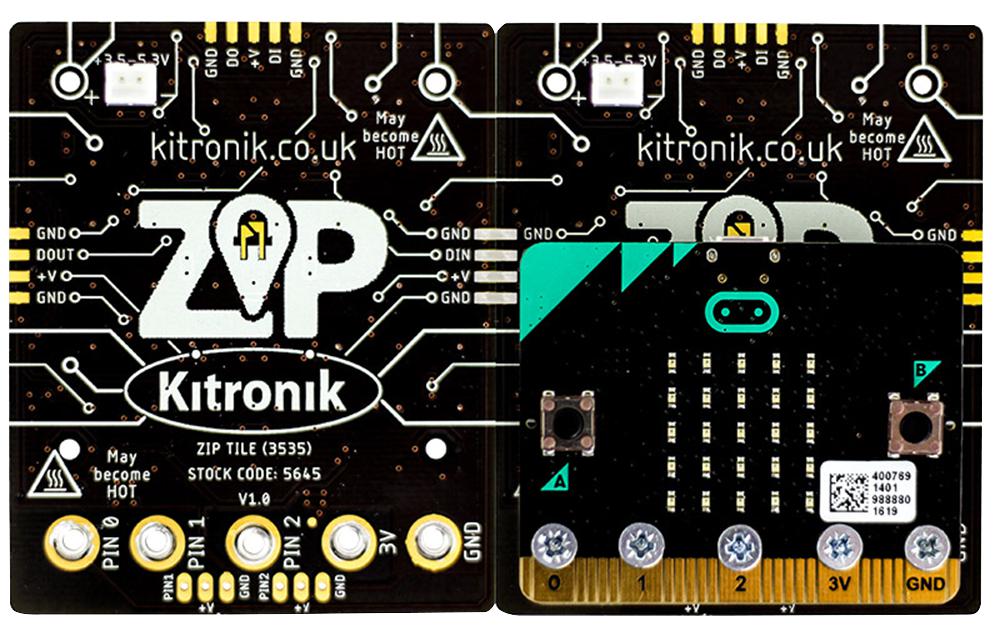

- Simple micro:bit mounting design; the micro:bit is simply bolted to the back using the supplied screws
- The Tile is powered via JST connection on the back of the board
- Produces a regulated power supply that is fed through to power the connected micro:bit
- Dimensions (HxW): 71x58mm
Contents
LED board, screws and spacers
Footnotes Note: micro:bit shown for illustration only, not included
Product details
| Silicon Manufacturer |
- |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
- |
| Silicon Family Name |
- |
| For Use With |
micro:bit |
| Kit Contents |
LED Tile Board, 5x M3 Countersunk Screws, 5x Plastic Spacer |
| Product Range |
- |
Other details
| Brand |
KITRONIK |
| Part Number |
5645 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
