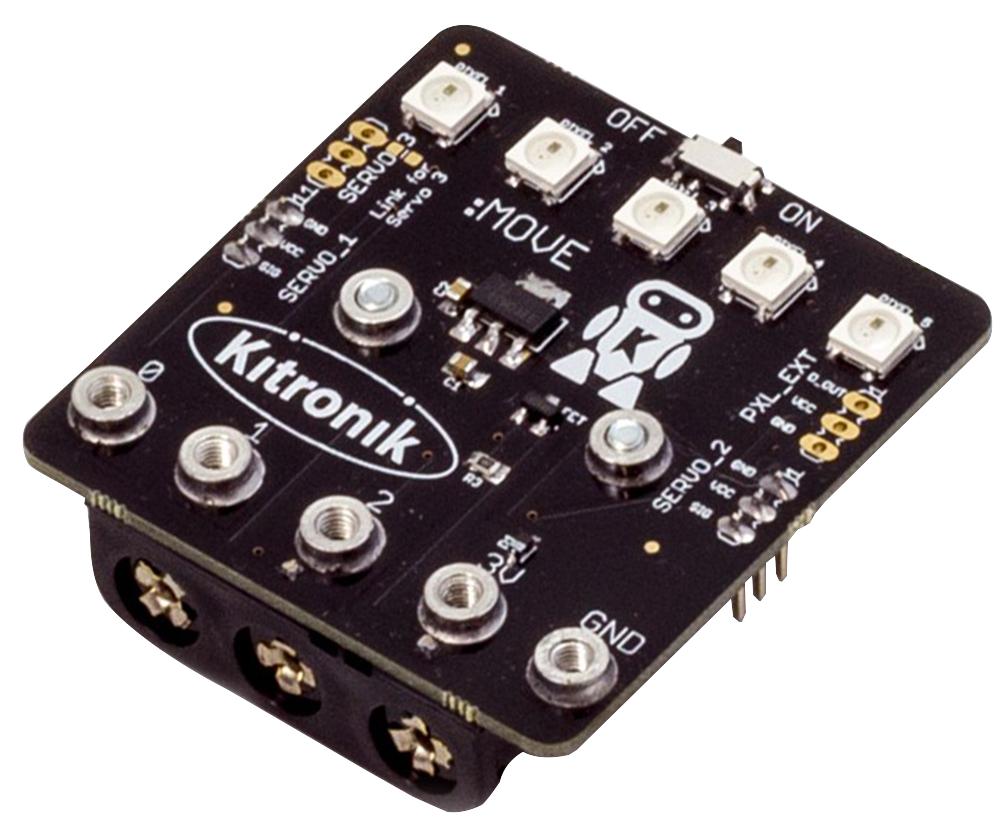

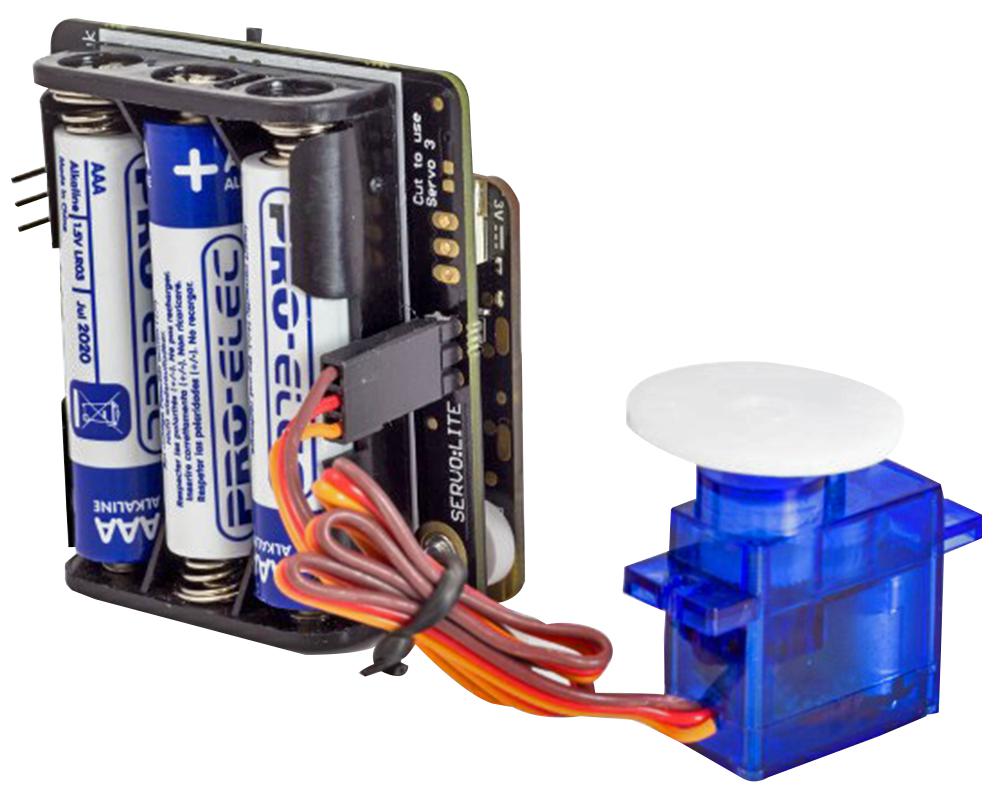

Versatile and effective servo board for the micro:bit that is capable of driving two servos simultaneously, ideal for simple projects such as buggies.

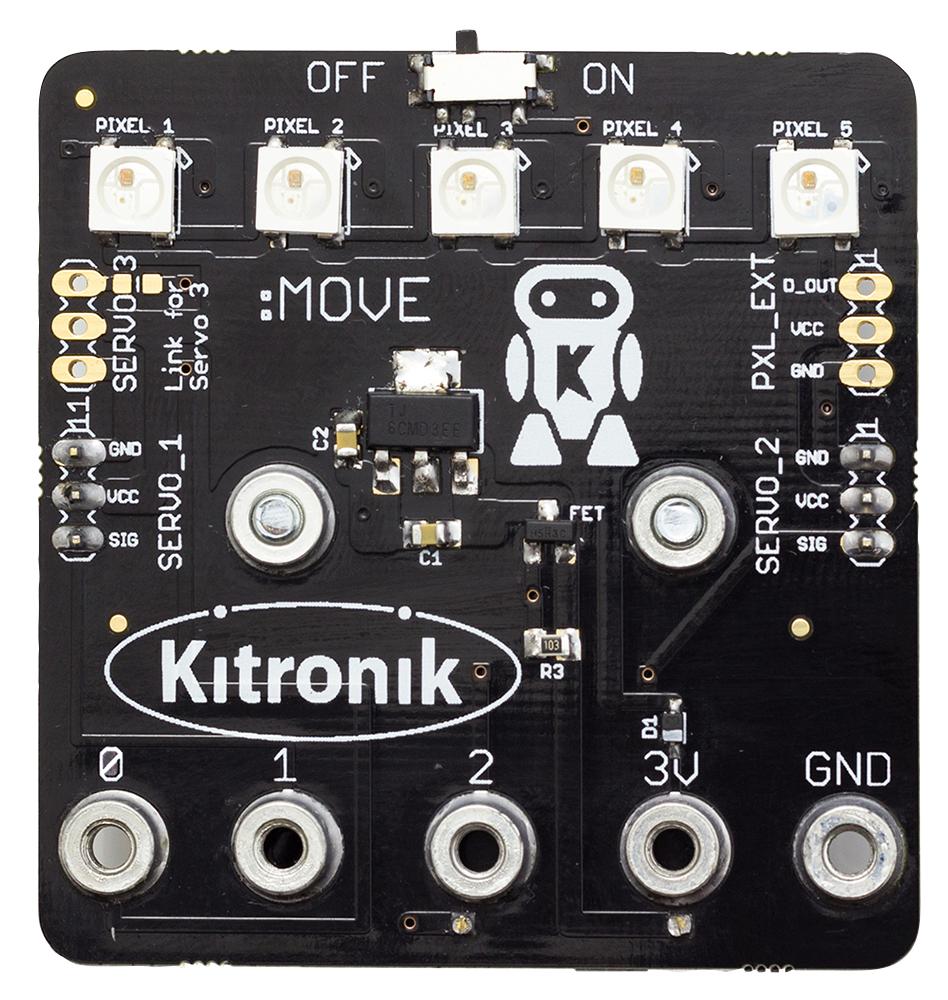

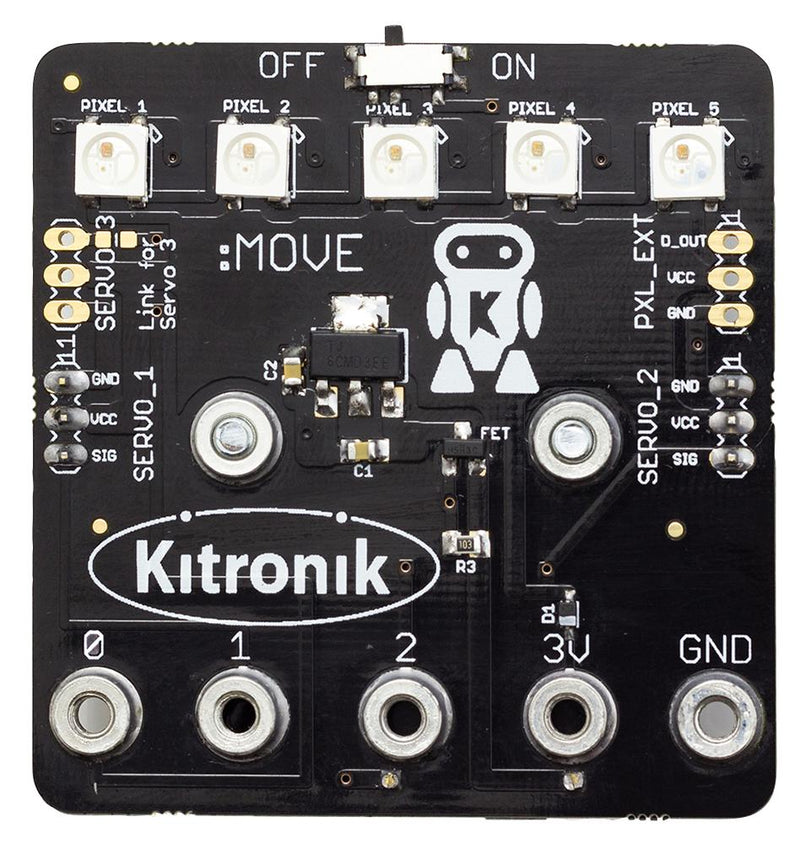

- Features five Zip� colour addressable LEDs and are compatible with the Adafruit NeoPixels blocks for coding purposes
- The P0 connection is routed to the LEDs, with P1 matched to Servo 1 and P2 matched to Servo 2
- Optional third Servo channel if LEDs are disabled
- Produces a regulated power supply that is fed into the 3V & GND connections to power the micro:bit; removing the need to power the micro:bit separately
- Simple design layout; the micro:bit is simply bolted to the front using the supplied spacer and screws
- Max current (all servos): 1A
- Typical servo output voltage (Vm) @ 1A: 3.3V

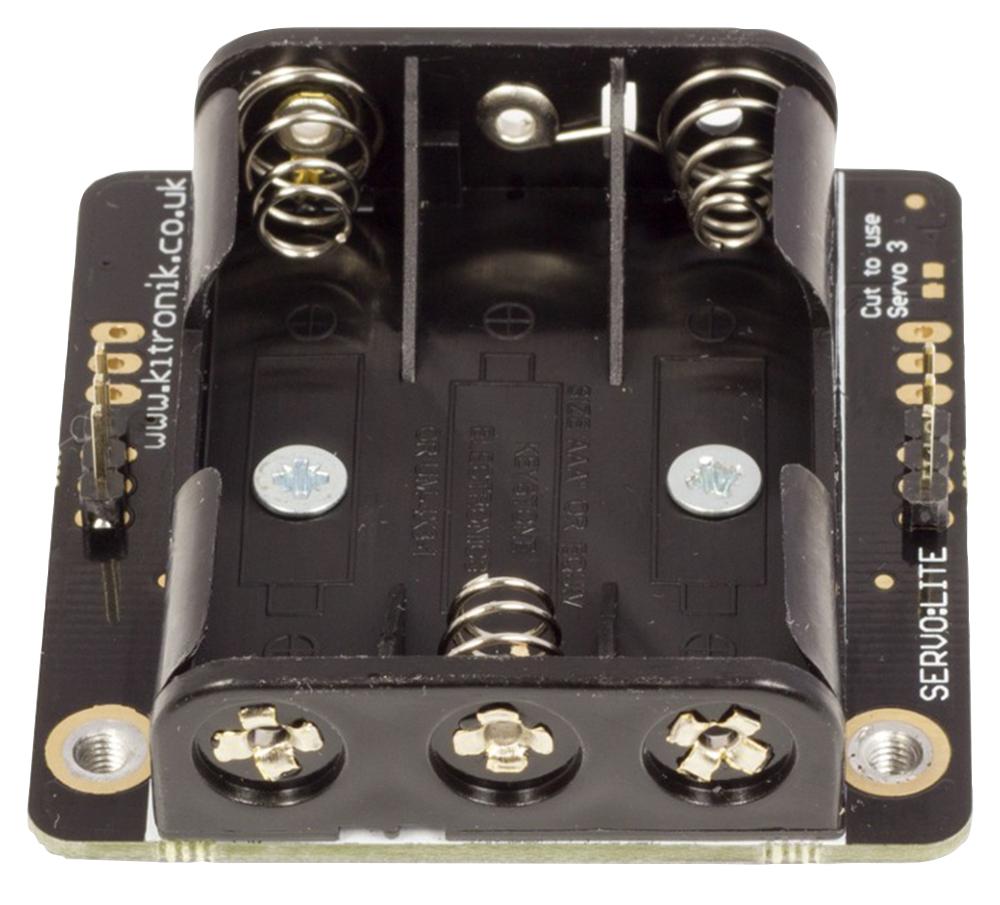

- Powered by 3x AAA batteries (not included)
- Dimensions (HxWxD): 54x52x16mm
Contents
Servo board, spacer and screws
Product details
| Silicon Manufacturer |
- |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
- |
| Silicon Family Name |
- |
| For Use With |
BBC micro:bit Boards |
| Kit Contents |
Servo:Lite Board w/ Battery Holder Pre-Fitted, 5x M3x8 Counter Sunk Pozi Steel screw, Perspex spacer |
| Product Range |
- |
Other details
| Brand |
KITRONIK |
| Part Number |
5623 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
