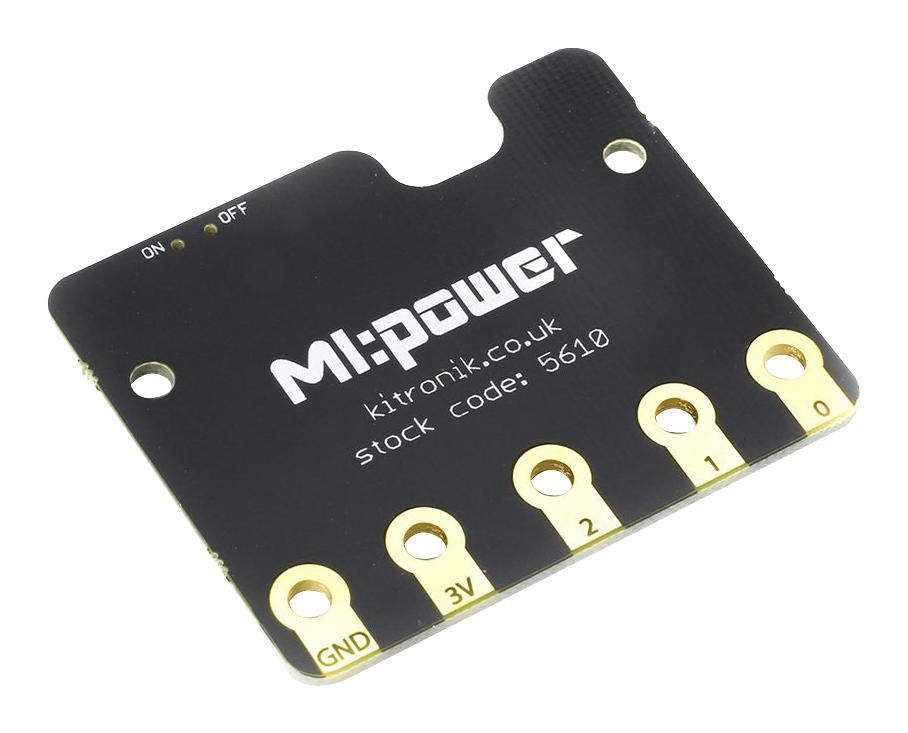

5610-V2 is a Kitronik MI:power board for the BBC Microbit V2. MI:power board for the BBC micro:bit brings real portability to your wearable projects. The stylish, lightweight PCB is designed to fit snugly against the BBC micro:bit and features a built-in buzzer and 3V coin cell holder. This latest version has been redesigned to fit both the V1 and V2 micro:bit. When assembled, the MI:power board is connected directly to the 3V, GND and P0 connections on the micro:bit. The 3V and GND connections provide power to the micro:bit and the built-in buzzer is connected to P0, which is the default output pin when using the audio functions in the Block Editor software. The board has an easy to access on/off switch, which makes it easy to turn a project on and off, rather than have to disconnect the power supply from the BBC micro:bit.
- Break free from the tether to the computer and take your project mobile
- Great for micro:bit mood badges, to allow your micro:bit to become a handheld remote control
- Accessory is supplied with spacers, fixings and a battery
- No soldering required
Contents
1 x MI:power board for the BBC micro:bit, 3 x Counter Sunk M3 Machine Screws, 3 x M3 Hex Full Width Nuts, 3 x Plastic Spacers, 1 x CR2032 3V Coin Cell.
Footnotes BBC micro:bit is not included.
Product details
| Silicon Manufacturer |
- |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
- |
| Silicon Family Name |
- |
| For Use With |
micro:bit |
| Kit Contents |
All-in-one Power Board |
| Product Range |
- |
Other details
| Brand |
KITRONIK |
| Part Number |
5610-V2 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
