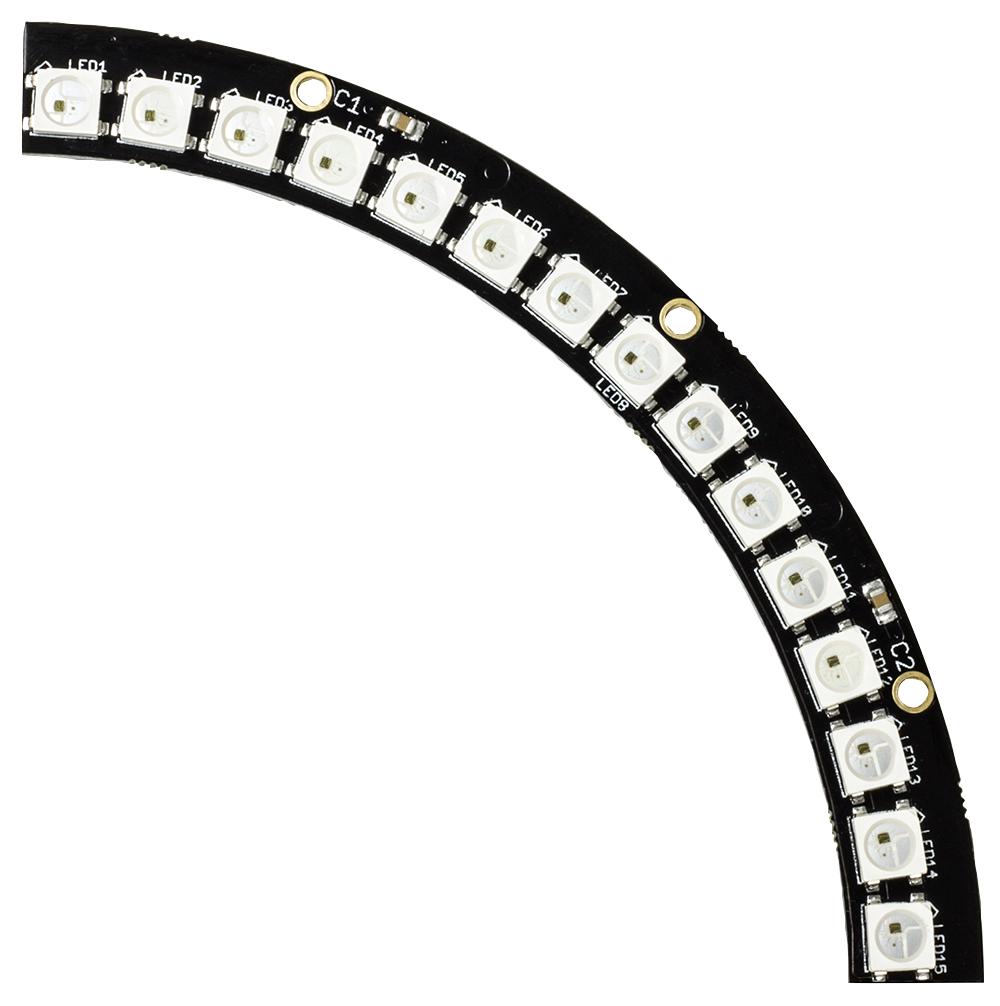

Add some colour to your projects with Zip� RGB LEDs. Each Zip LED has a red, green and blue element within the LED and this makes for over 16 million possible output colours! Multiple Zip boards can be connected to produce more elaborate projects. The Zip Arc Large is a curved LED board with 15 LEDs.
- Zip� LEDs are compatible with any WS2812B driver code and can be programmed with the Microsoft MakeCode Editor
- Zip� LEDs are also compatible with the Adafruit NeoPixel blocks for coding purposes
- Individually addressable LEDs that can be controlled independently and all connected with the same three wire bus

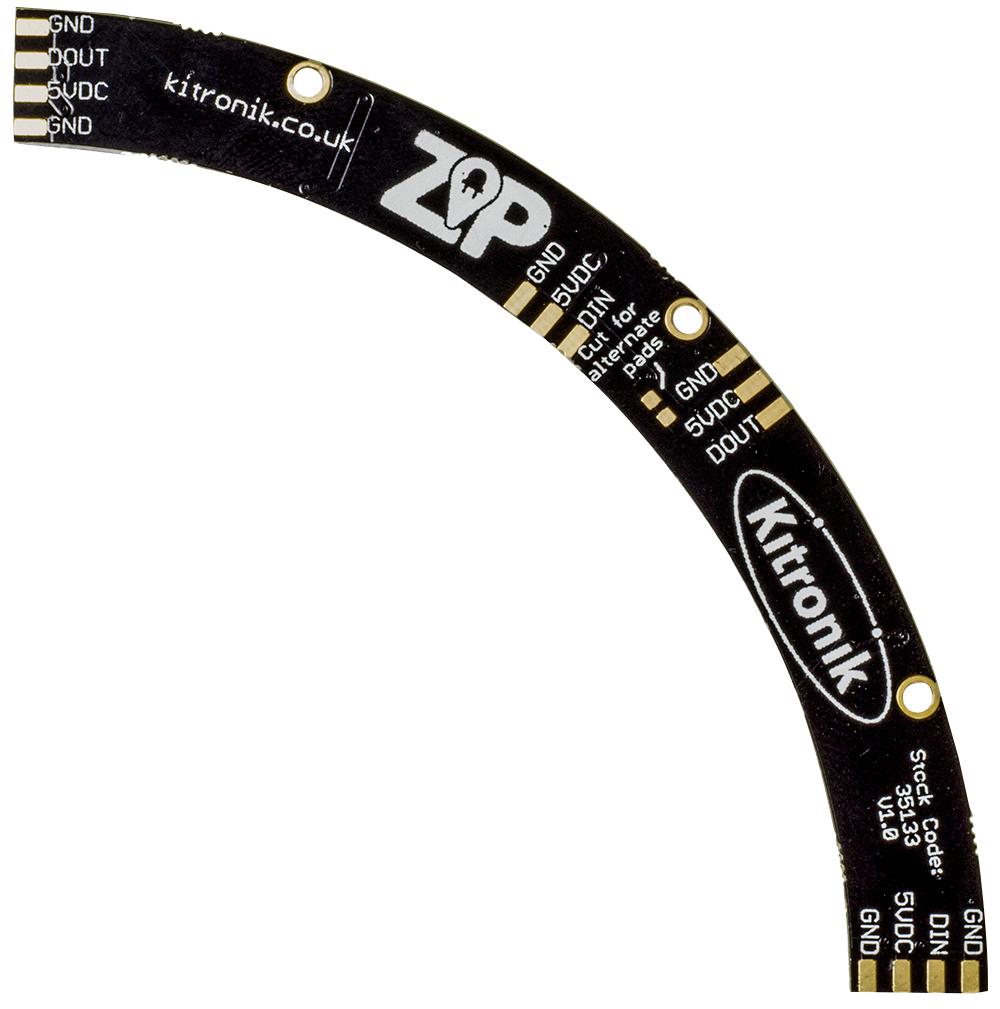

- 8 Connections (4 on each end) with DOUT pin for easily combining multiple Zip Arc boards
- Four Large Arc boards can be combined to form a full circle
- 50mA per LED maximum with Red, Green & Blue at full brightness
- 6.86mm pitch beween LEDs
- 2.54mm pitch wiring pads
- DIN pin for data input, and +5V & GND for connecting power to the PCB
- Integrated reset circuit
- Dimensions: 3mm height, 62.5mm inner radius & 72.7mm outer radius
Contents
Zip board only
Product details
| Accessory Type |
Arc Large LED Board |
| For Use With |
BBC micro:bit Boards |
| Product Range |
Zip Series |
Other details
| Brand |
KITRONIK |
| Part Number |
35133 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
