Description

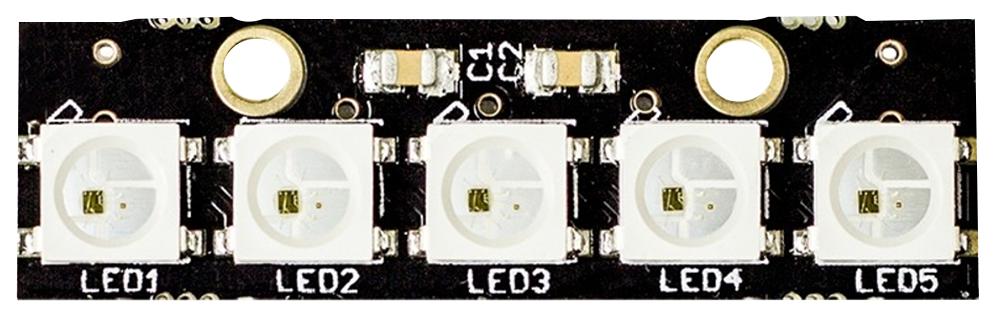

Add some colour to your projects with Zip� RGB LEDs. Each Zip LED has a red, green and blue element within the LED and this makes for over 16 million possible output colours! Multiple Zip boards can be connected to produce more elaborate projects. The Zip Stick is a straight LED board with 5 LEDs.
- Zip� LEDs are compatible with any WS2812B driver code and can be programmed with the Microsoft MakeCode Editor
- Zip� LEDs are also compatible with the Adafruit NeoPixel blocks for coding purposes
- Individually addressable LEDs that can be controlled independently and all connected with the same three wire bus

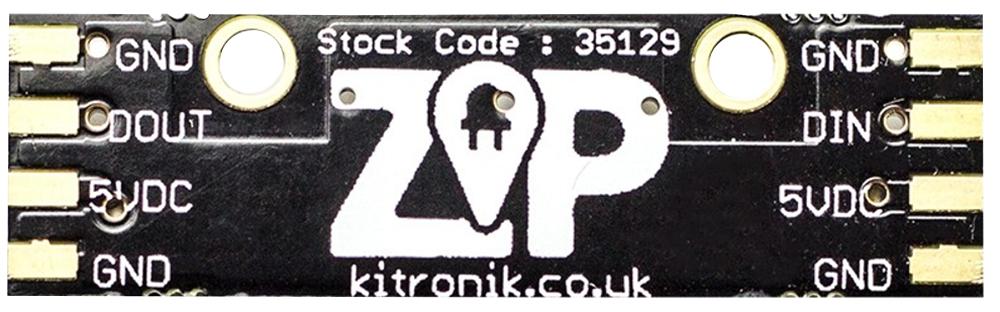

- 8 Connections (4 on each end) with DOUT pin for easily combining multiple Zip Sticks
- 50mA per LED maximum with Red, Green & Blue at full brightness
- 6.86mm pitch beween LEDs
- 2.54mm pitch wiring pads
- DIN pin for data input, and +5V & GND for connecting power to the PCB
- Integrated reset circuit
- Dimensions (HxWxD): 3x34x10mm
Zip board only
Other details
| Brand | KITRONIK |
| Part Number | 35129 |
| Quantity | Each |
| Technical Data Sheet EN |  |
