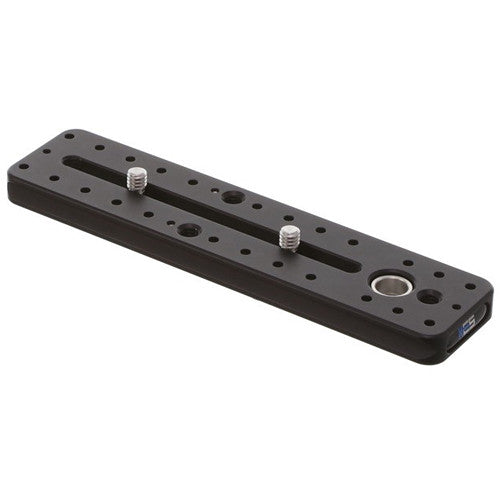

Kirk KLP-625 Quick Release Lens Plate for Select Telephoto Lenses

Arca-Type Compatible

Double-Dovetail Design

Black and Silver Anodized Surface

6061-T6 Aluminum-Constructed Plate

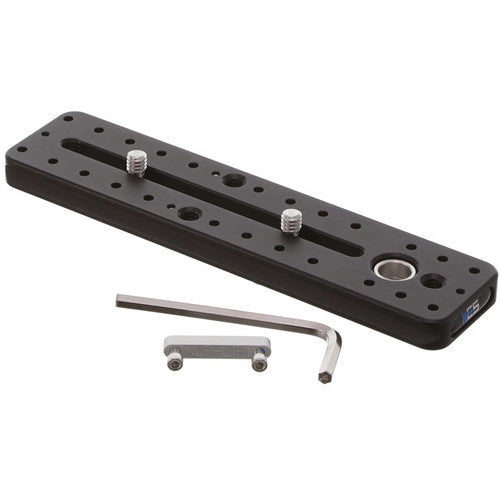

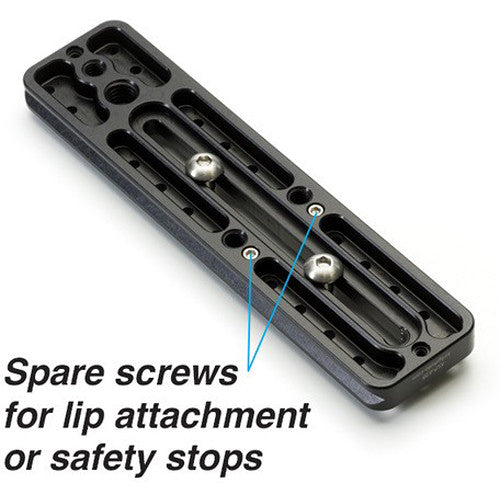

The KLP-625 Quick Release Lens Plate for Select Telephoto Lenses from Kirk is Arca-type compatible with a double-dovetail design. The 6061-T6 aluminum-constructed plate has a black anodized surface and the anti-twist lip is silver anodized, which makes them tough against scratches and scuffs. The lip can be mounted with a 90 or 30° angle, for a snug fit against the tripod collar on the lens, and this feature helps to keep a tighter fit, which prevents the lens foot from pivoting while mounted to the plate. The two 1/4"-20 mountinng screws are used to attach the plate to the lens' tripod foot, and the three additional 1/4"-20 mounting sockets are for optional mounting positions on a tripod. The two integrated safety stops prevent the plate from sliding out if a quick release assembly is accidentally opened, and the industry-standard QD socket allows you to carry the lens with a shoulder or sling strap.

Compatibility Canon: 200-400mm EF f4L IS USM, 200-400mm EF f/4L IS USM extender 1.4x, 400mm f/2.8, 400mm f/2.8L IS, 400mm f/2.8L IS II USM, 500mm f/4 IS, 500mm f/4 IS II, 600mm f/4 IS, 600mm f/4 IS II USM, and 800mm f/5.6 IS

Nikon: 400mm f/2.8 ED IF AIS

Sigma: 150-600mm f/5-6.3 DG OS HSM Sport

Mounting Screw	2 x 1/4"-20 Male

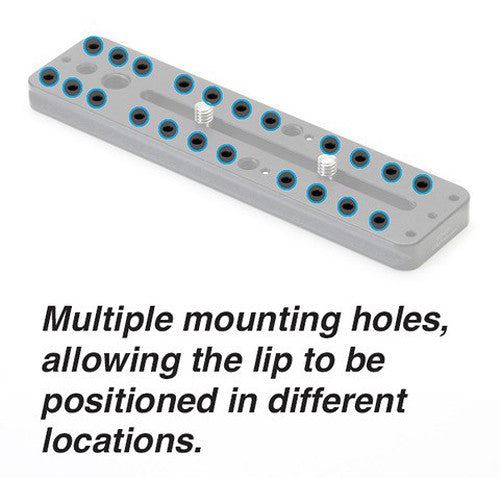

Tripod Mounting Thread	3 x 1/4"-20 Female 1 x 3/8"-16 Female
Bubble Level	No
Strap Loop	No
Arca-Type	Yes
Material of Construction	Aluminum
Length	6.3" / 16.00 cm
Weight	3.5 oz / 99 g

Package Weight	0.295 lb
Box Dimensions (LxWxH)	7.7 x 3.75 x 1.05"
