Kirk KLP-360 Overview

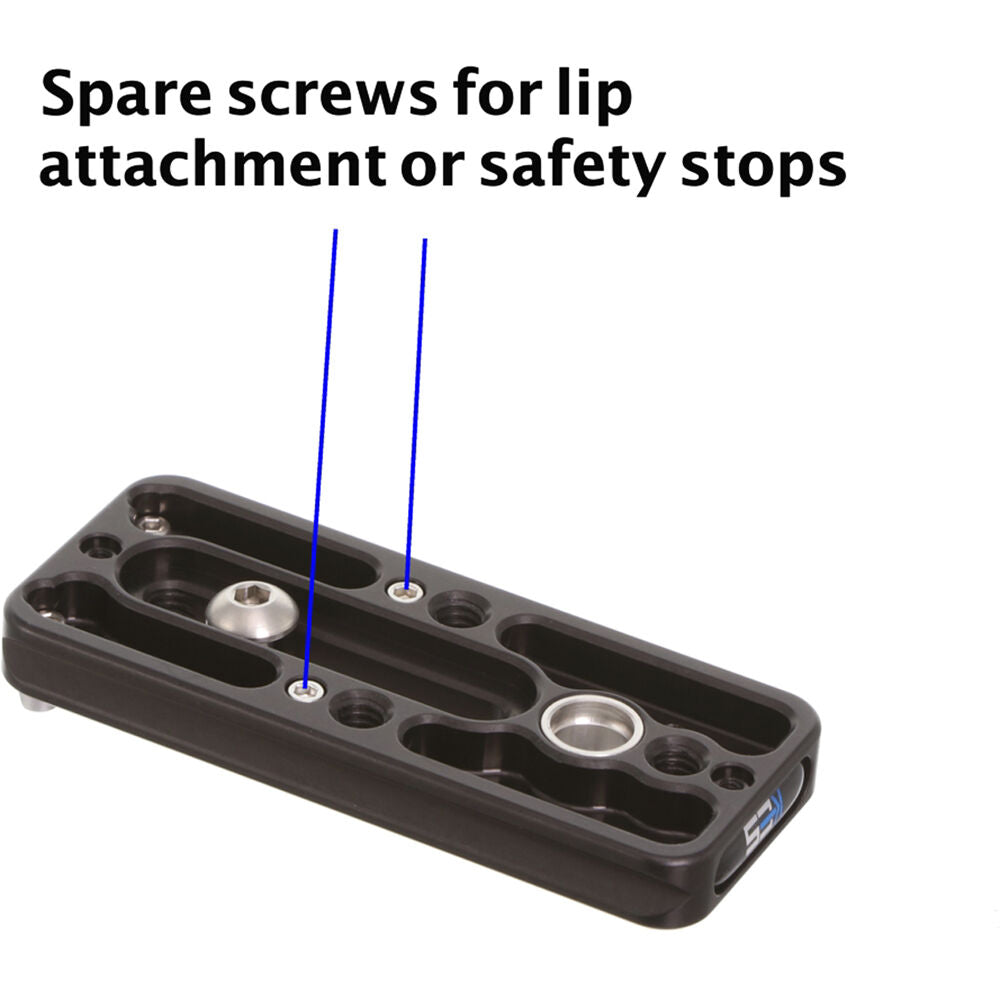

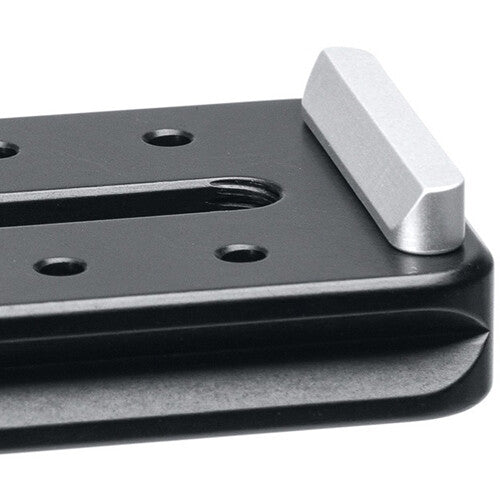

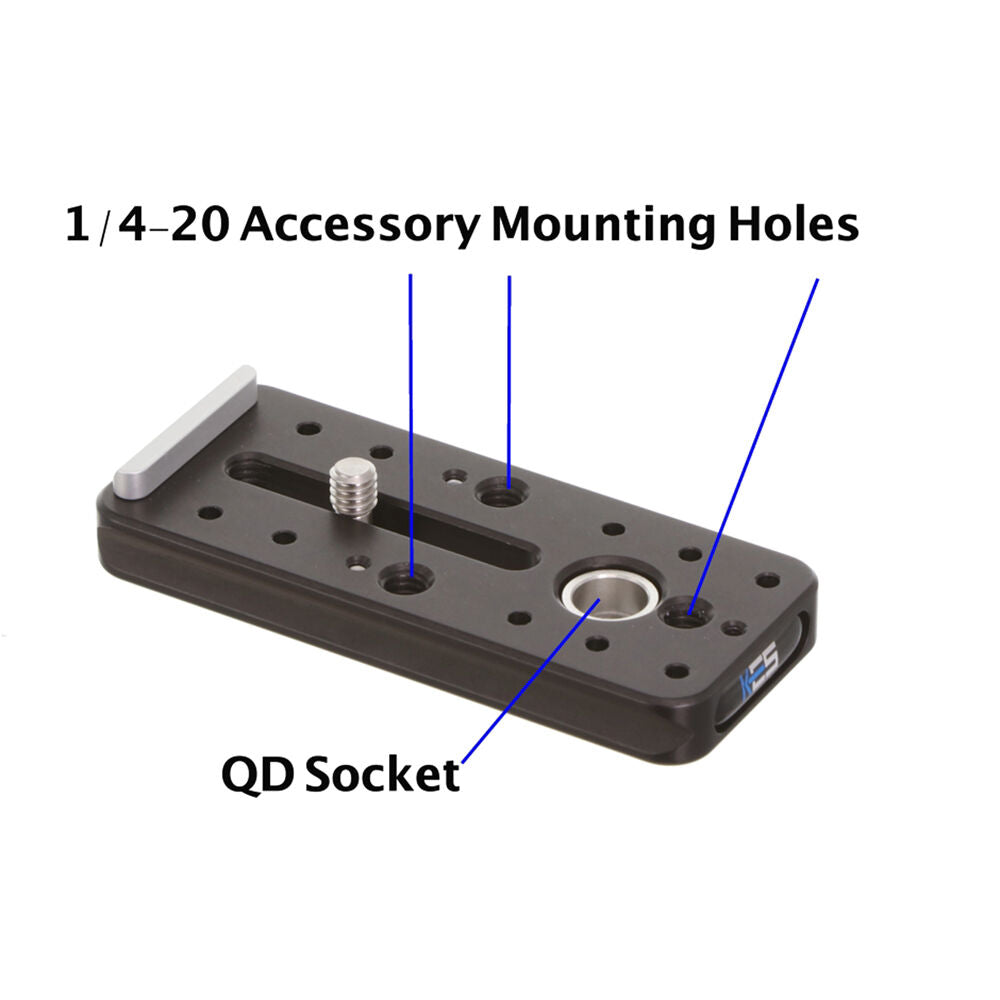

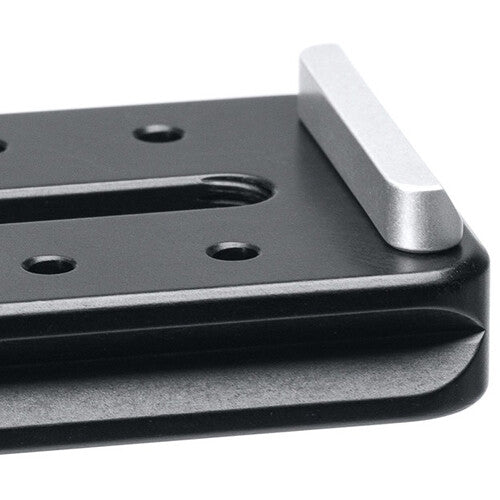

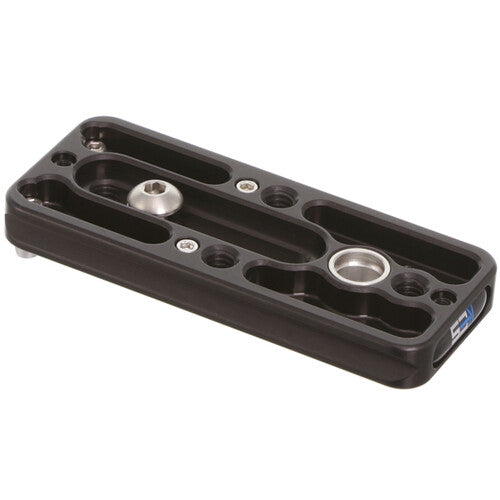

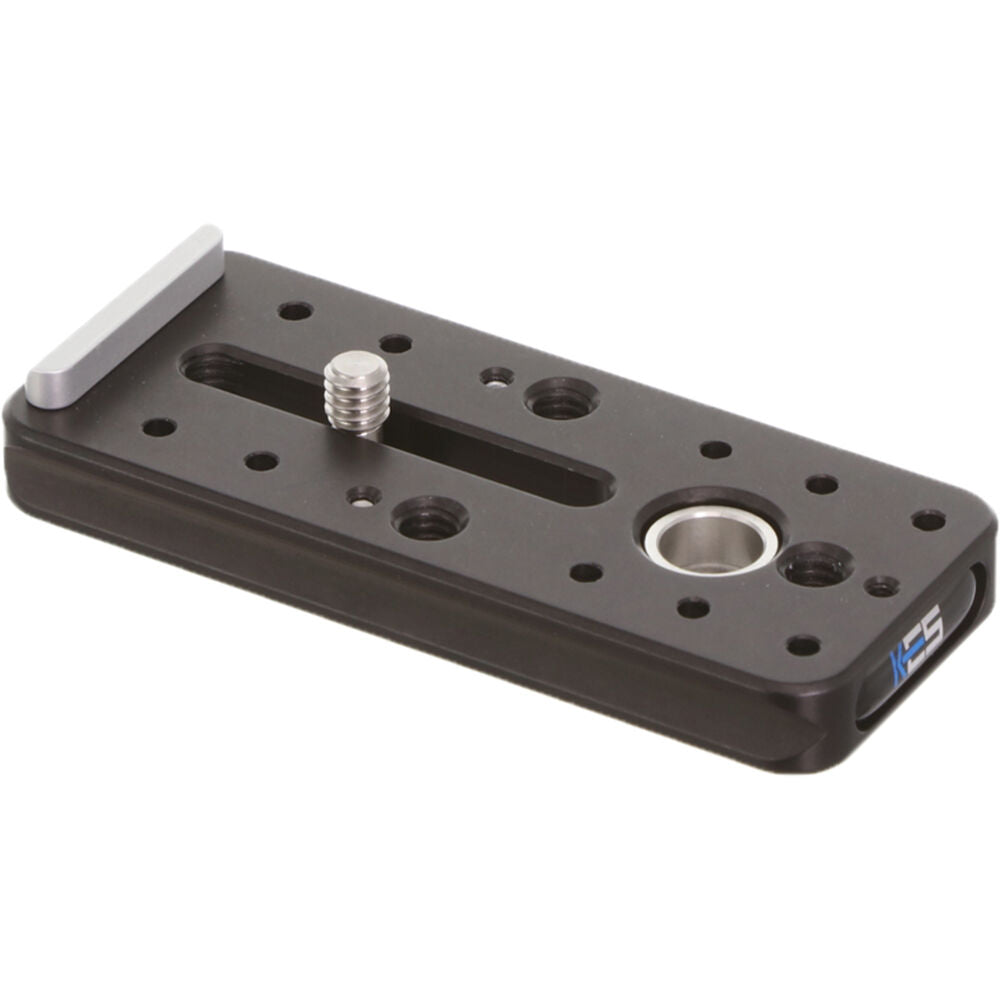

The KLP-360 Quick Release Lens Plate for Select Lenses from Kirk is Arca-type compatible with a double-dovetail design. The 6061-T6 aluminum-constructed plate has a black anodized surface and the anti-twist lip is silver anodized, which makes them tough against scratches and scuffs. The reversible lip can be mounted with a 90 or 30° angle, for a snug fit against the tripod collar foot on the lens, and this feature helps to keep a tighter fit, which prevents the lens foot from pivoting while mounted to the plate. The single 1/4"-20 mounting screw is used to attach the plate to the lens's tripod foot, and the three additional 1/4"-20 mounting sockets are for optional mounting positions on a tripod. The two integrated safety stops prevent the plate from sliding out if a quick release assembly is accidentally opened, and the industry-standard QD socket allows you to carry the lens with a shoulder or sling strap.
Compatibility
Canon:
EF 100-400mm f/4.5-5.6L IS
EF 300mm f/4 L IS
EF 180mm f/3.5L Macro USM
EF 65mm f/2.8 MP-E
EF 70-200mm f/2.8 L IS II & III USM
Nikon:
70-200mm f/2.8E FL ED VR (2016)
Universal:
3.6" Lens Plate
In the Box
- Kirk KLP-360 Quick Release Lens Plate for Select Lenses
- 2 x Safety Screw
- Captive 1/4"-20 Mounting Screw
- Hex Wrench
- Limited 5-Year Warranty
Kirk KLP-360 Specs
| Mounting Screw |
1 x 1/4"-20 Male |
| Tripod Mounting Thread |
3 x 1/4"-20 Female |
| Bubble Level |
No |
| Strap Loop |
No |
| Arca-Type |
Yes |
| Material of Construction |
Aluminum |
| Length |
3.6" / 9.1 cm |
| Weight |
2 oz / 57 g |
Packaging Info
| Package Weight |
0.23 lb |
| Box Dimensions (LxWxH) |
6.1 x 5.7 x 0.85" |
