Kino Flo Image L80 DMX LED Kit with Yoke Mount

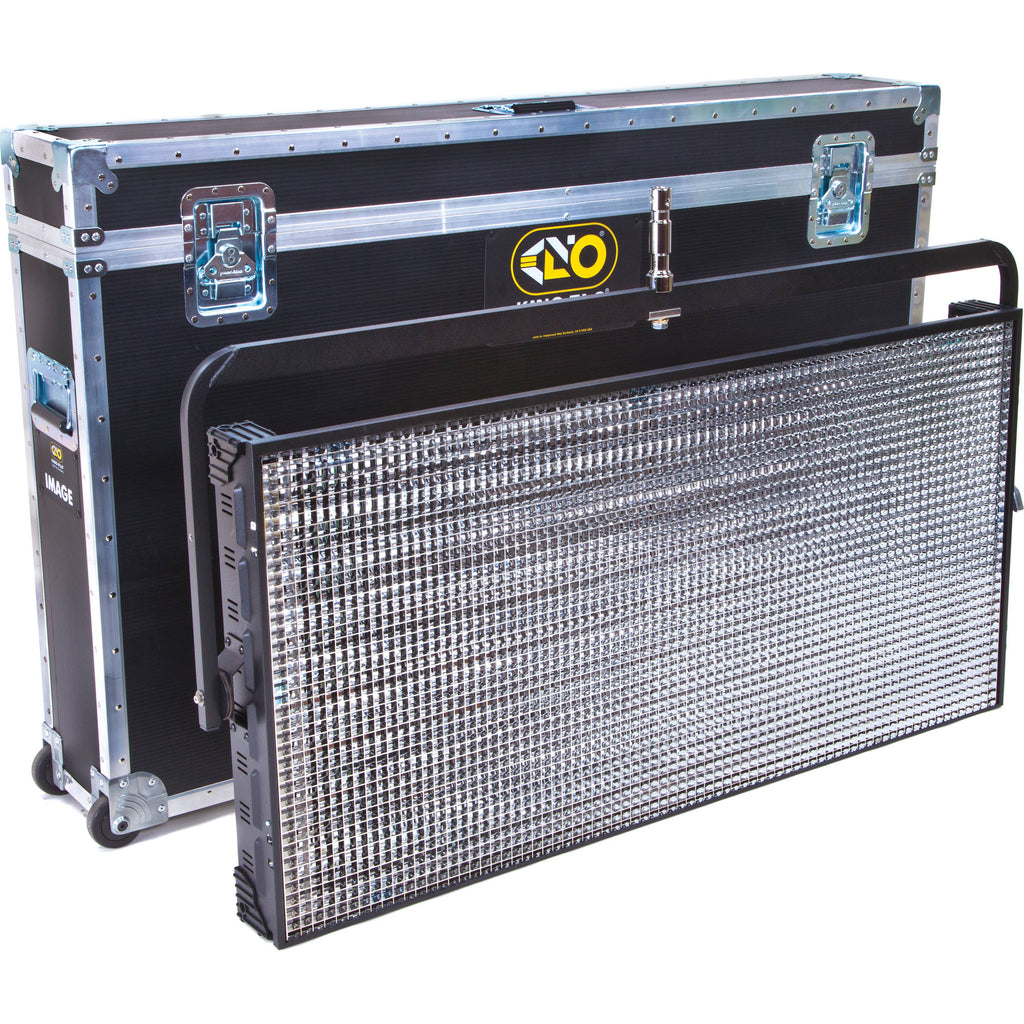

The Image L80 DMX LED Kit with Yoke Mount was put together by Kino Flo for image-makers who need to take precise lighting gear with sophisticated color control on location. The kit includes a 54 x 28 x 6.5" Image L80 DMX LED Panel with a louver (grid) and filter frame. A Junior pin is provided for stand mounting or hanging. A hard 58 x 36.5 x 9.5" wheeled shipping case with recessed latches and handles is included for storage and transport.

• Image L80 DMX LED Panel with Yoke Mount

  Flexibility and extensive control options are key to the production of the Image L80 DMX LED Panel with Yoke Mount from Kino Flo . The 54 x 28 x 6.5" panel employs four menus with several channels that have features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX. The White menu allows control of 1 to 100% dimming, color control from 2700 to 6500K, and Green/Magenta control. There are two color menus. In the Gels/Hue menu, the Kelvin range is extended to 2500 to 9900K.

  Among the channels is one called Gel that offers multiple presets for light conditions, such as mercury-vapor, and 100 often-used gel filters. A channel called Hue Angle (Hue) and another called Saturation (Sat) are also included in the Gel menu and function together like a 360-degree color wheel making over two million color combinations available.

  The second color menu provides RGB (Red, Green, Blue) control, permitting a user-selected combination to obtain any color in the visible spectrum. The RGB menu also allows you to dial in specific gel RGB values or control colors from a DMX console. Finally, there's an FX menu that creates effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll. Within each effect there are presets that vary the parameters or change the rate of the chosen effect.

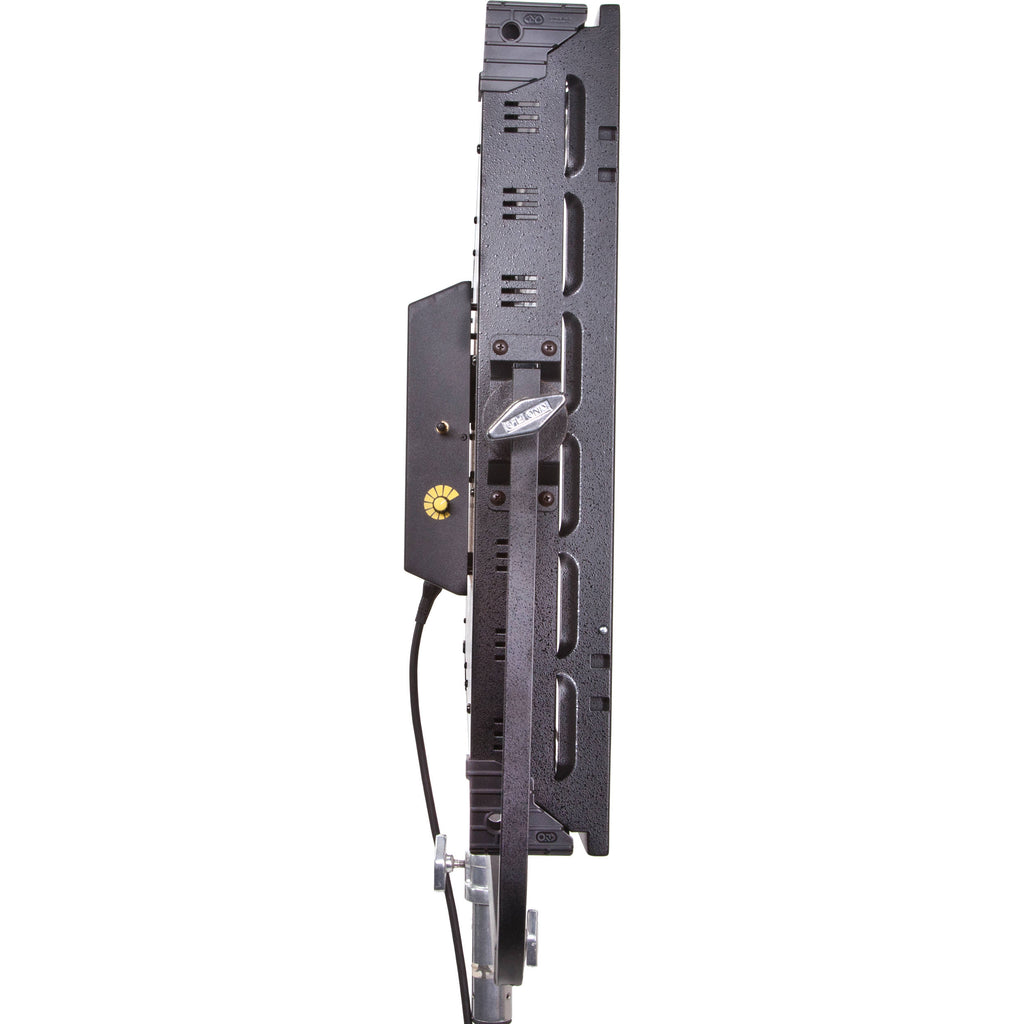

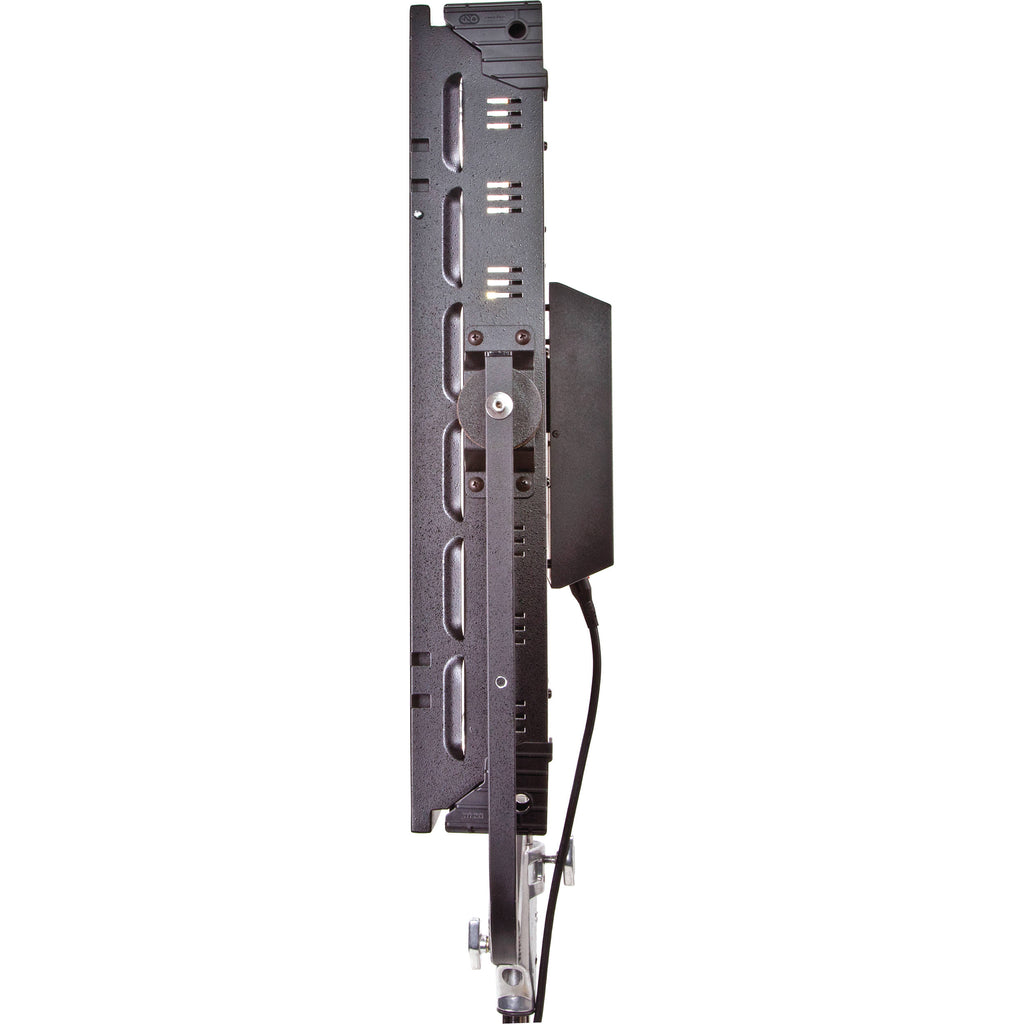

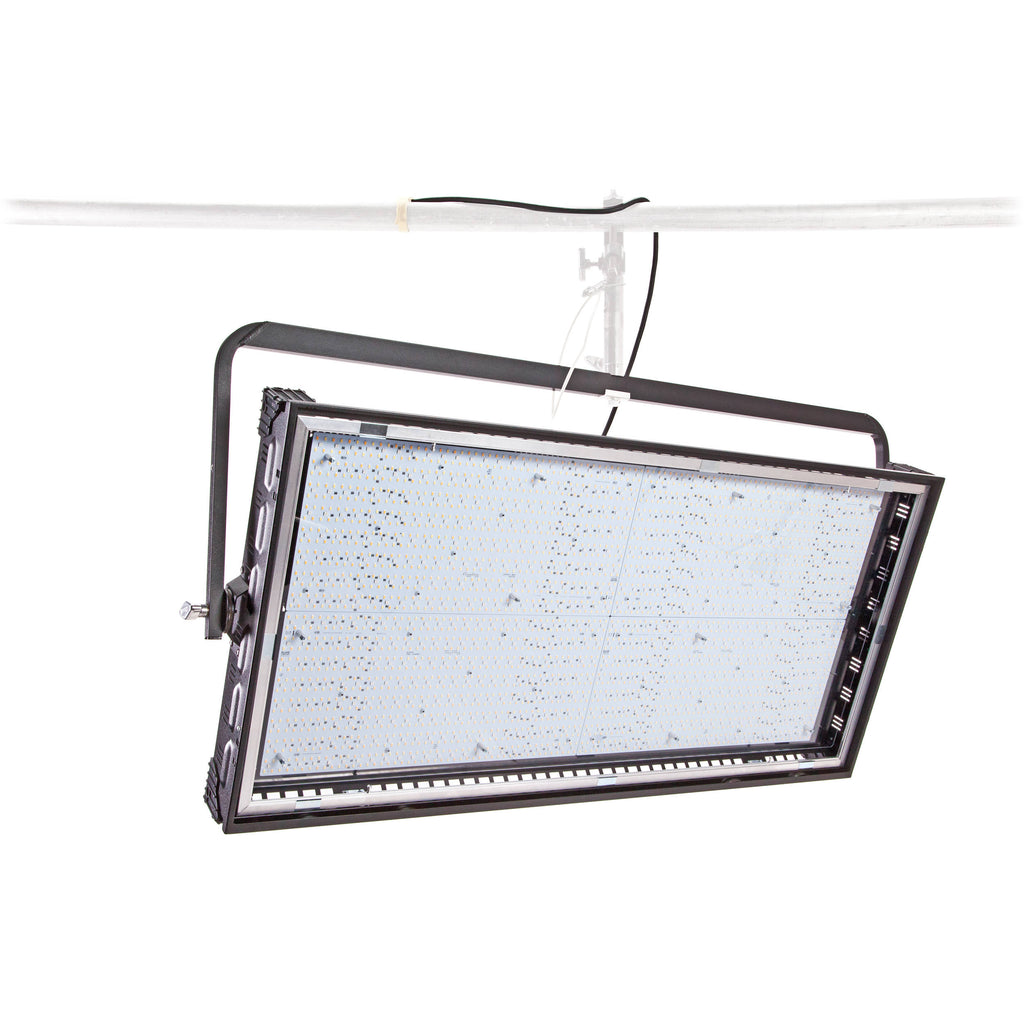

  The Image L80 is ready for worldwide use thanks to its 100 to 240 VAC power supply. The light comes with a 90-degree honeycomb grid to tighten its beam angle and limit spill light, providing directional control for selective lighting. This version of the light has a Yoke Mount. The yoke has a hole to accept industry-standard hardware such as a pin or receiver.

  Benefits

  Kelvin presets

  Dial-in color temperature control between 2700 and 6500K

  Extended color palette from 2500 to 9900K

  Green/magenta control

  Hue angle and saturation adjustments

  RGB control

  FX control

  Works with apps with predetermined RGB presets or color wheels

  Can use preset buttons to store custom Kelvin settings

  Light levels do not change when selecting Kelvin settings

  No color shift while dimming

  Color-correct with a high CRI/TLCI rating

  Universal power input: 100 to 240 VAC

  Energy efficient, draws 2A at 120 VAC

  Flicker-free, quiet operation

  Full range onboard and DMX dimming

  DMX wireless link: Lumen Radio

  DMX auto terminate

  Metal alloy fixture includes removable gel frame, louver, and cardholders

  Slim 6.5" profile

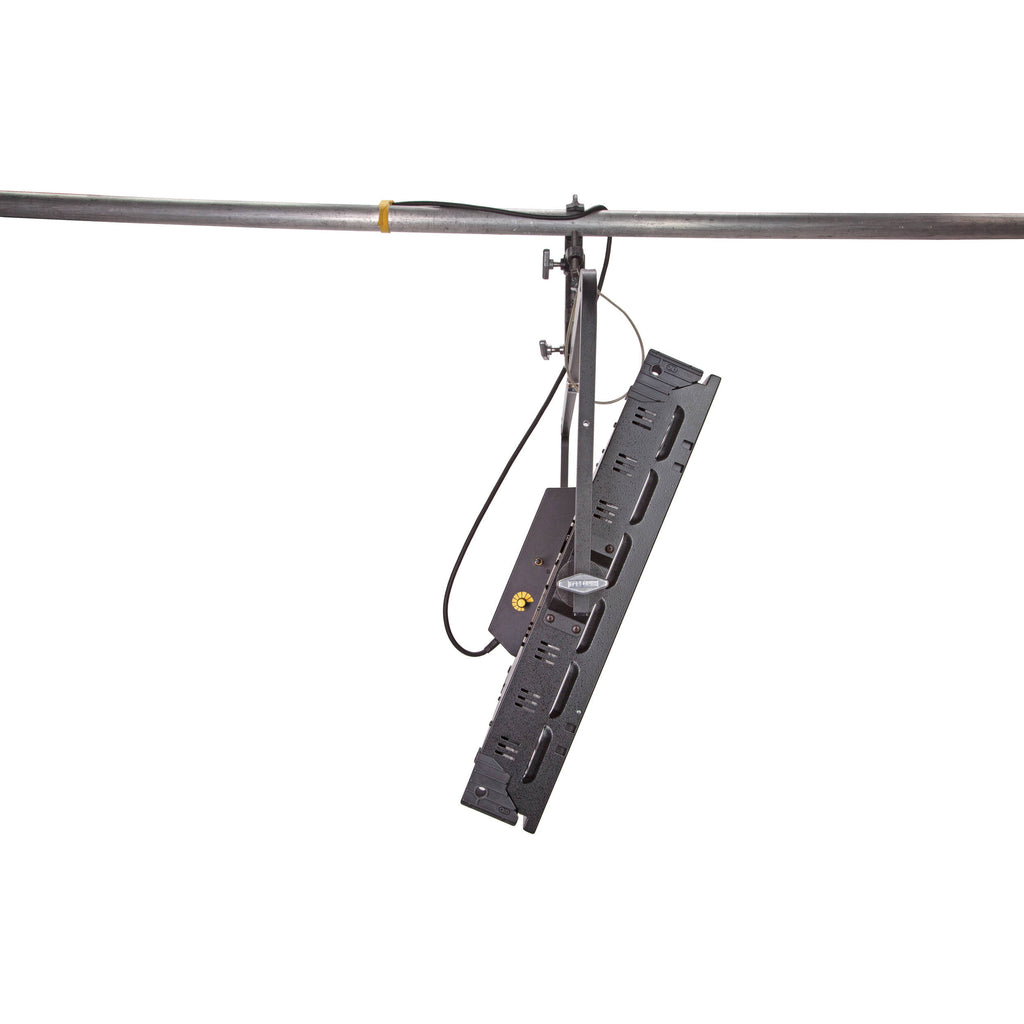

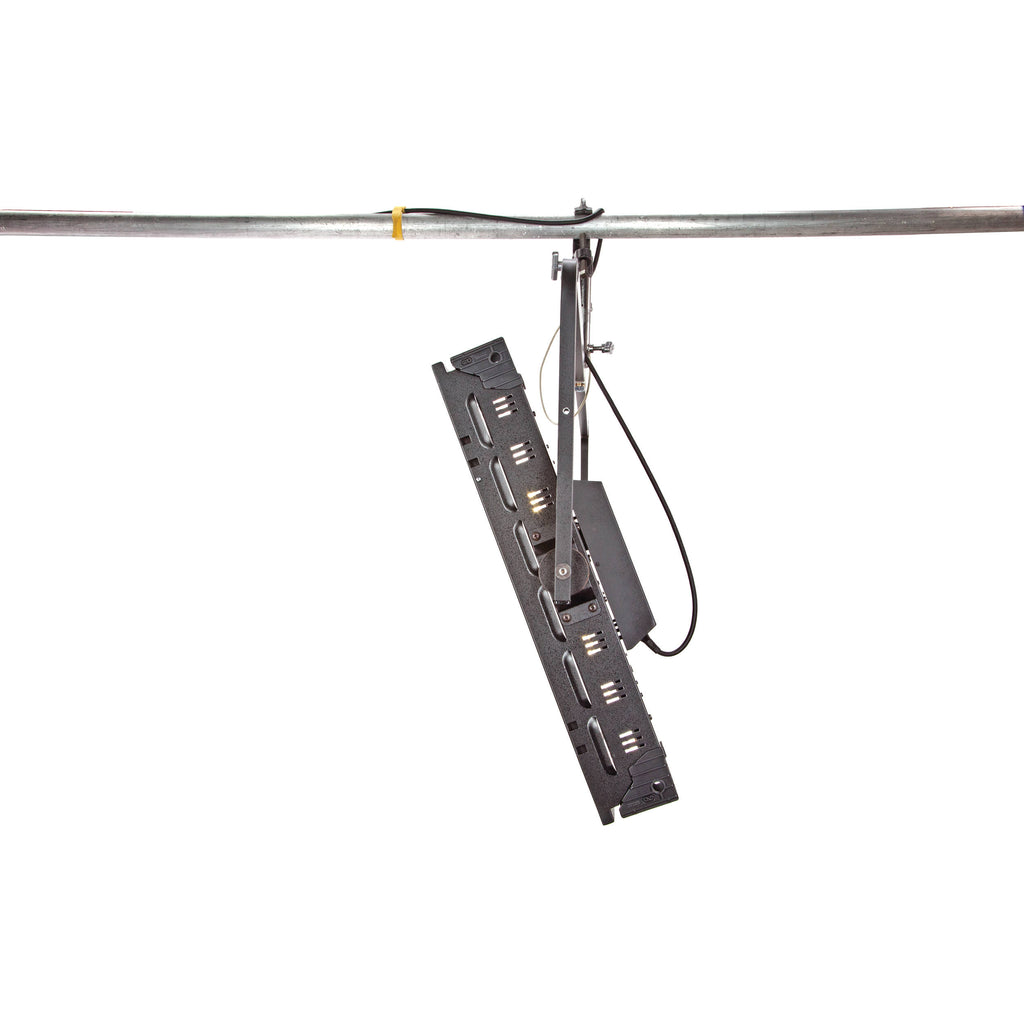

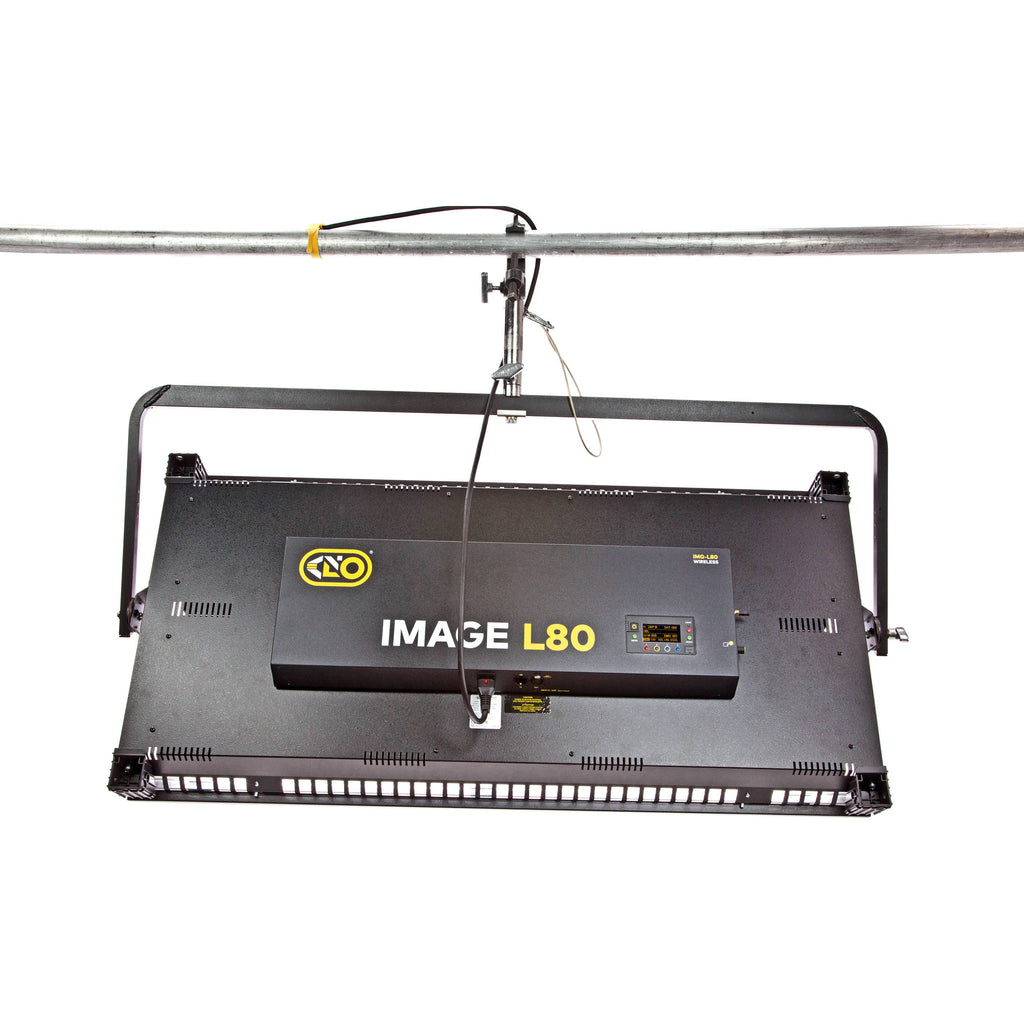

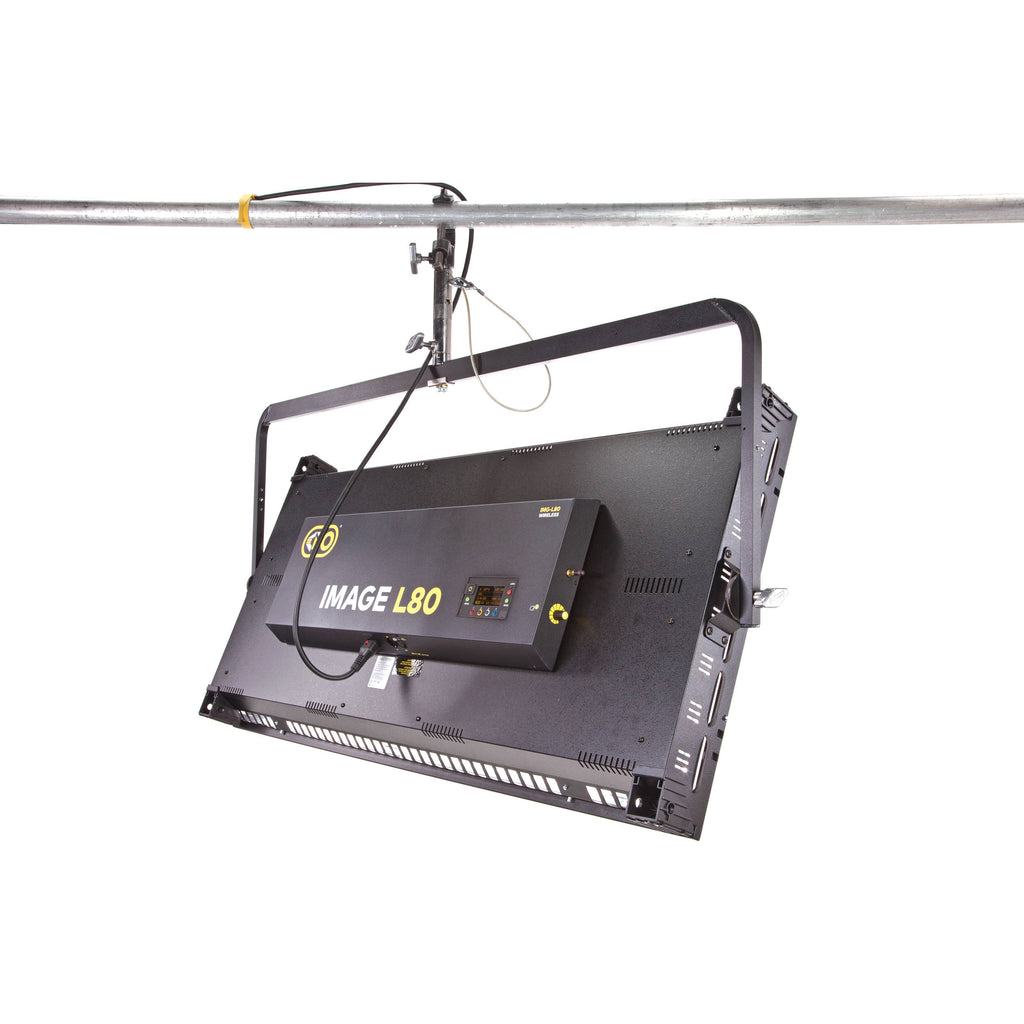

  Mounts to stand or can hang easily from a grid

• Junior Pin Assembly for 80, 40, 20

  Kino Flo Image 80/40/20 Junior Pin assembly. Allows straight-ahead mounting of the fixture to a Junior 1-1/8" female receptor. Includes metric threaded screws and a Junior (1-1/8") pin.

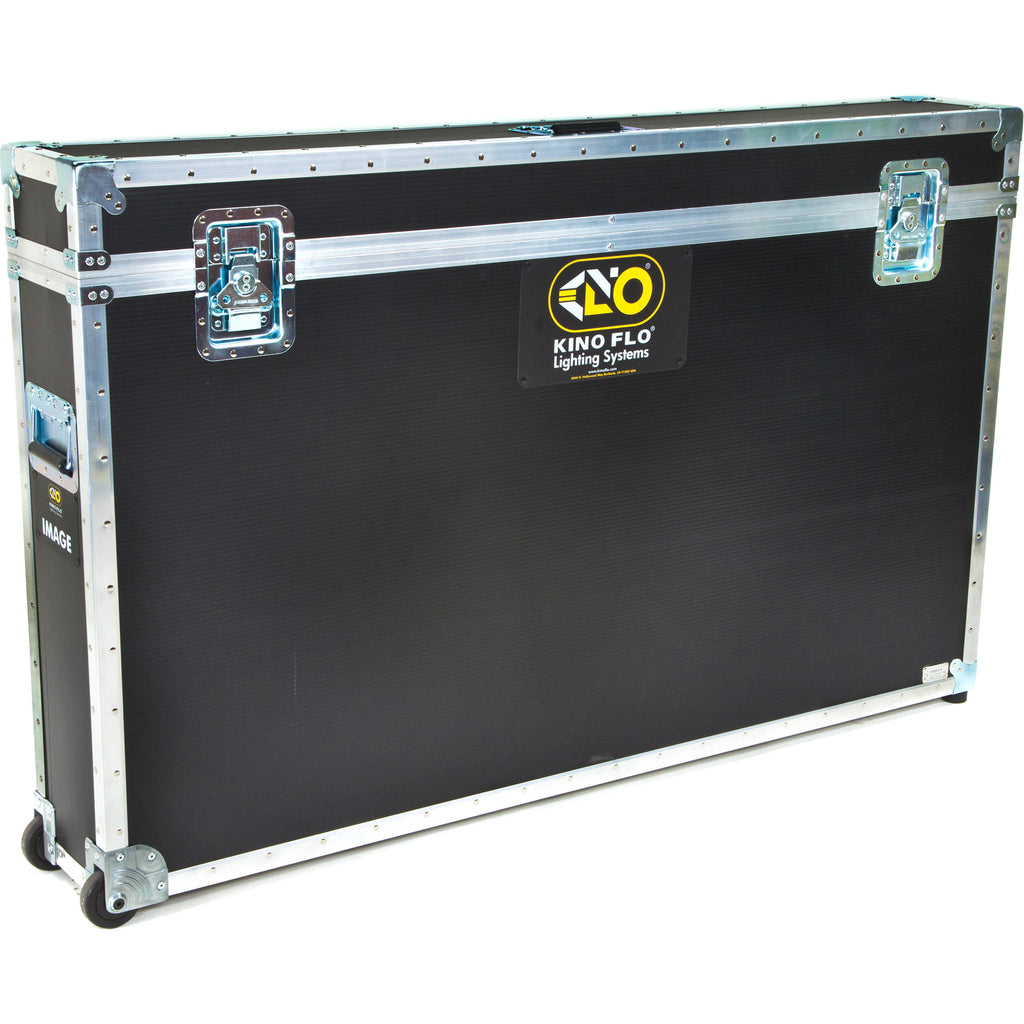

• Image 80 Ship Case (1)

  The Kino Flo 80 Ship Case is used to hold one Image 80 fixture and cable. It is reinforced plywood with a vinyl covering, metal hasps, and has reinforced corners.

  Wheels ease transport

  Side and top handles for convenience

• Image 80, 85 Gel Frame

• Eggcrate Louver for Image 80 and Flathead 80 (Black)

• Set of Card Holders

• Yoke Mount

• Limited 1-Year Warranty

• 1 Year Manufacturer's Warranty
