Kino Flo T44 Overview

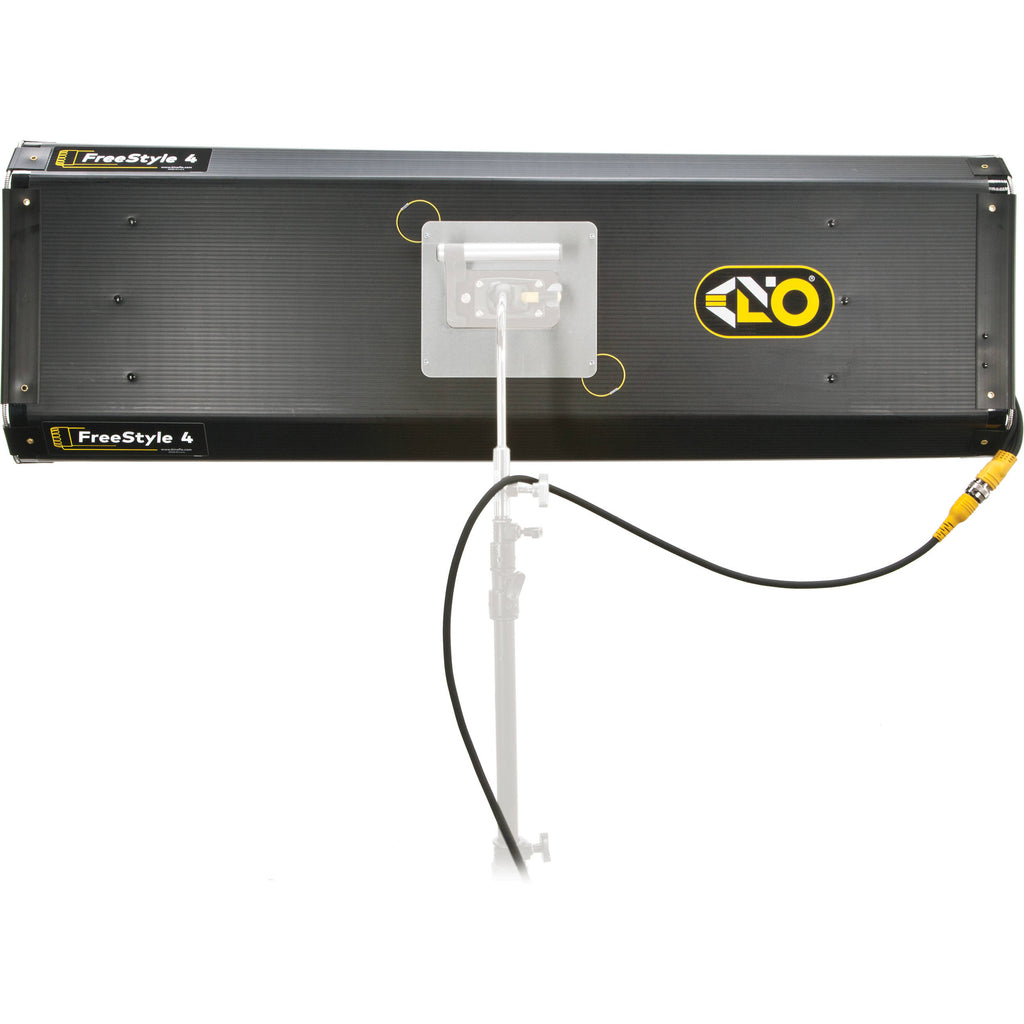

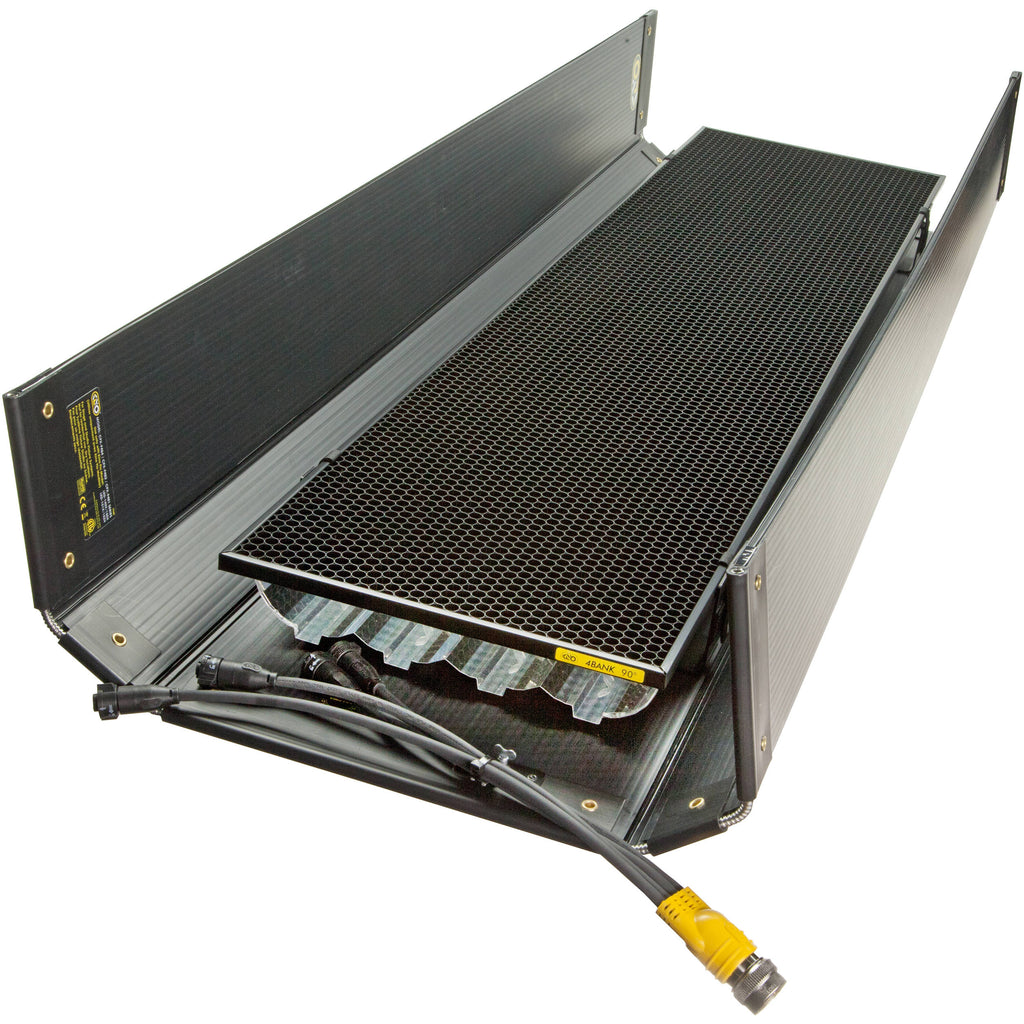

The FreeStyle T44 LED Fixture from Kino Flo is an LED lamp head that is part of a system or kit that is powered the separately-purchased, required LED 140X DMX Controller. The fixture measures 52 x 13 x 3.5" w/ 6.5" barndoors and weighs 11 lb - light enough to hand hold. It comes with a 90-degree removable louver (grid). The fixture runs on 100 to 240 VAC current through its optional controller and requires separately purchased LED tubes.
The FreeStyle 144 requires a head cable and controller for use. The controller offers an extensive 6-channel array of control features and use options. It has two menus for color and a "White Menu" for Dimming, Kelvin Temperature, and Green/Magenta adjustments. Using one of the color menus expands the Kelvin range from a warm 2500 to an ice-blue 9900K. The second color menu allows you to work with RGB, a real convenience when employing color wheels or RGB presets. The fourth channel (named the Gel channel) has presets for over 100 well-known temperature-modifying gels including blue/green screen, sodium vapor, and mercury vapor.
A fifth channel allows for Hue adjustments along a 360-degree range like a color wheel, while the 6th Saturation channel controls the intensity of the chosen color. The controller has onboard DMX for making adjustments remotely from a console and also is compatible with Lumen Radio wireless DMX. The controller runs on 100 to 240 VAC current for worldwide use. But can also run on "block" batteries when mains power is unavailable.
Benefits Using Separately Purchased LED Controller
Kelvin presets Dial-in color temperature control between 2700-6500K Extended color palette from 2500-9900K Green/Magenta Control Hue angle and Saturation adjustments RGB control Works with Apps with predetermined RGB presets or color wheels Can use preset buttons to store custom Kelvin settings Light levels do not change when selecting Kelvin settings No color shift while dimming Color-correct with high color rendering index (CRI 95) Universal input 100-240 VAC or 24 VDC Energy efficient, low electrical draw Flicker-free, dead quiet operation Full range onboard and DMX dimming DMX wireless link (Lumen Radio) DMX Auto Terminate Remote fixture with built-in barndoors Removable LED panel Fixture includes removable 90° Honeycomb Louver Honeycomb louver also available in 60° as accessory Lightweight, slim profile Light enough to be handheld Separately purchased Controller mounts onto fixture or operates remotely with extension cable In the Box
- Kino Flo FreesStyle T44 LED Fixture
- Kino Flo Louver for 4ft 4Bank (90°)
- Reflector
- Tube Harness
- Limited 1-Year Warranty
Kino Flo T44 Specs
Light Fixture
| Beam Angle | 100° |
| Color Temperature | 2500 to 9900K |
| Color Accuracy Standard | CRI 95 |
| Cooling System | Passive |
| Dimming | Yes, 0 to 100% |
| Display | None |
| Photometrics | 55 fc / 591.8 lux at 8' / 2.44 m |
| Fixture Dimensions | 52.0 x 13.0 x 6.5" / 132.1 x 33.0 x 16.5 cm |
| Fixture Weight | 11.02 lb / 5 kg |
Connectors
| Battery Plate | None |
| Power Input Connector | IEC |
| DMX Connector | 3-Pin XLR |
Mounting
| Yoke Mount | None |
| Fixture Mount | None |
| Accessory Mount | None |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 18 to 36 VDC |
| Power Source | AC Adapter, External Battery |
Packaging Info
| Package Weight | 7.9 lb |
| Box Dimensions (LxWxH) | 52.5 x 12.5 x 3.75" |
