Description

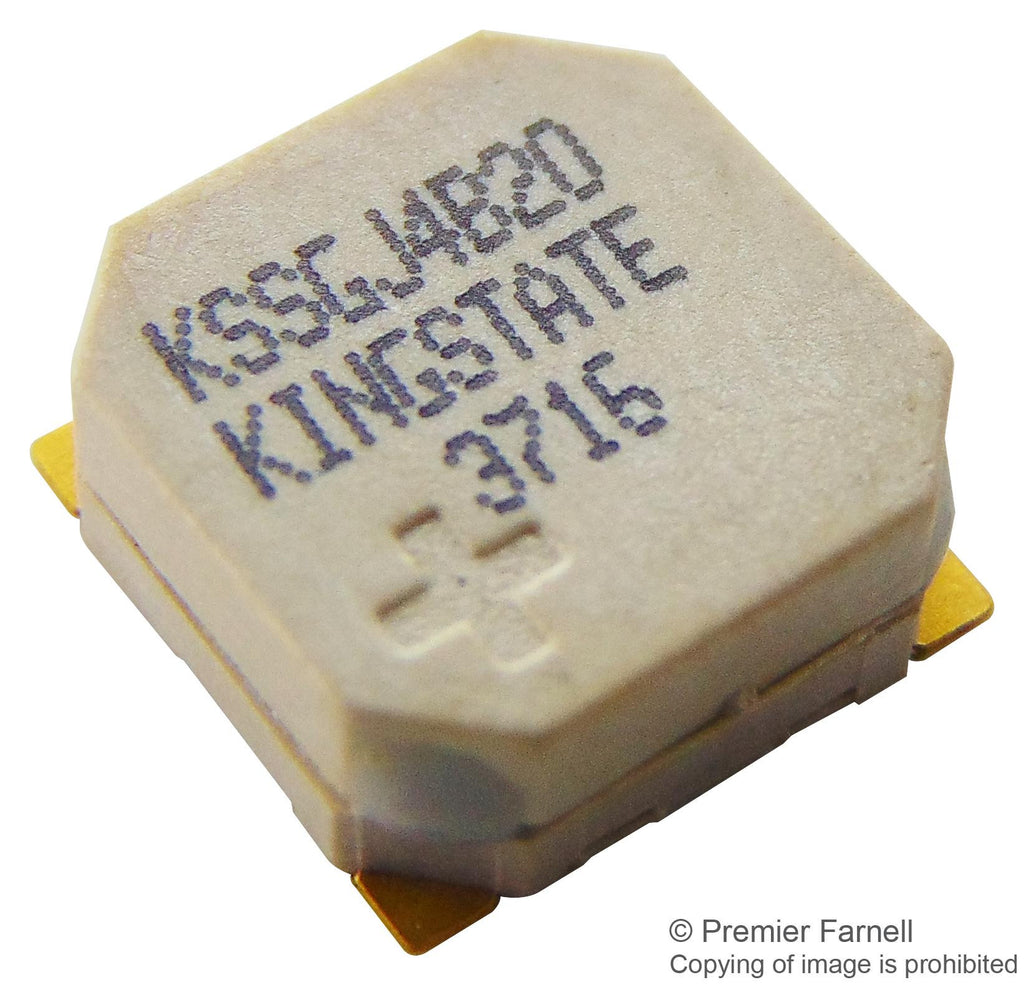

The KSSGJ4B20 from Kingstate is a surface mount magnetic transducer.
- Rated voltage of 3.6V
- Operating voltage from 3V to 5V
- Maximum current consumption is 80mA
- Coil resistance of 20 ohm
- Minimum pressure level is 90dBA at 5cm
- Rated frequency is 2.73KHz
- Operating temperature range from -30°C to 75°C
- Dimension of L8.5 x W8.5 x H3.0
Applications
Audio, Consumer Electronics, Portable Devices
Product details
| Transducer Mounting | - |
| Product Range | - |
| Tones | - |
| Current Rating | 80mA |
| Sound Level SPL | 97dB |
| Supply Voltage Min | 3VDC |
| Supply Voltage Max | - |
| Resonant Frequency | 2.73kHz |
| Transducer Function | Buzzer |
Other details
| Brand | KINGSTATE |
| Part Number | KSSGJ4B20 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
