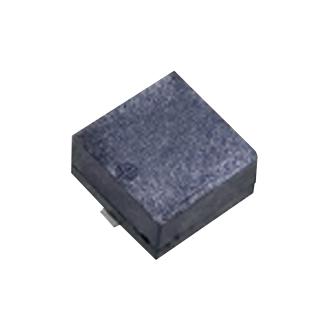

Product Overview
- Magnetic transducer (passive buzzer)
- High / low temperature resistant, high SPL
- SMD type installation
- 2.0 to 4.5 voltage range, 100mA maximum current consumption
- 16.0±3.0 ohm coil resistance
- 85dBA (typical 90) at 10cm, 2.73KHz minimum frequency
- LCP (black) material
- Operation temperature range from -40 to 85°C
- Dimension is 9.00 x 9.00 x 4.00mm
Product details
Technical Specifications
Transducer Function
Buzzer
Housing Material
LCP (Liquid Crystal Polymer)
Operating Temperature Min
-40°C
Resonant Frequency
2.73kHz
Sound Pressure Level (SPL)
85dBA
Operating Voltage Range
2V to 4.5V
Operating Temperature Max
85°C
Other details
| Brand |
KINGSTATE |
| Part Number |
KSSG54B16A |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
