Description

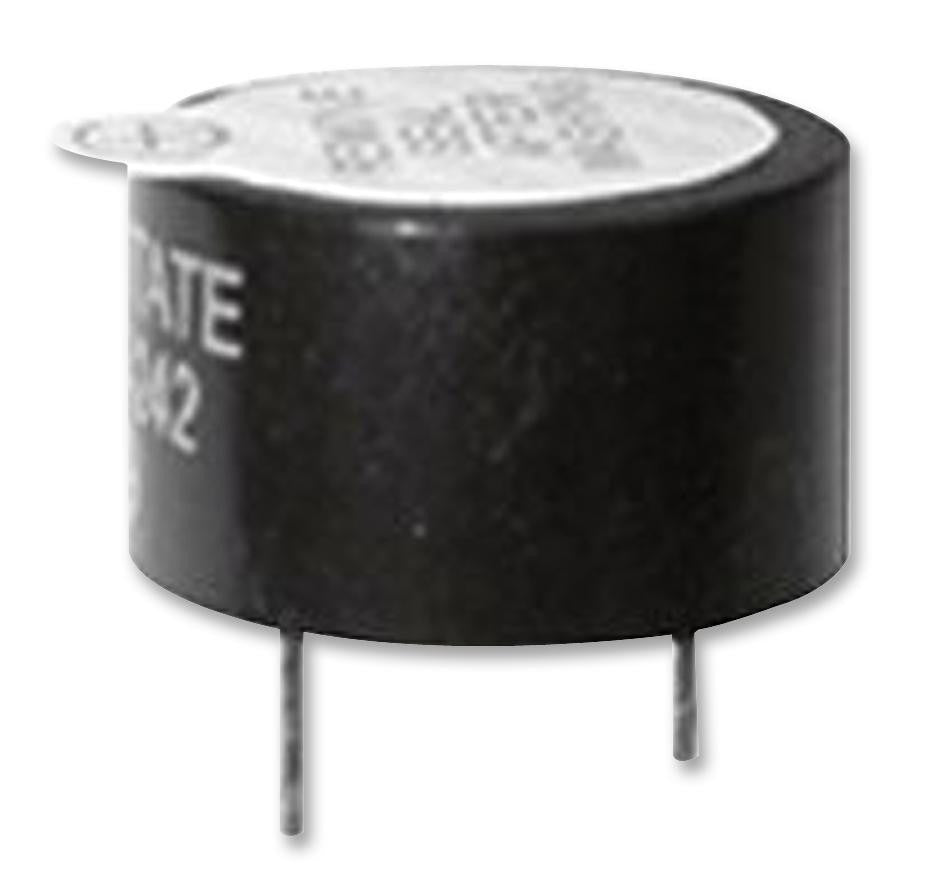

The KPEG242 from Kingstate is a pin type piezo indicator.
- Rated frequency of 4.1KHz
- Operating voltage range from 3VDC to 16VDC
- Maximum current consumption of 7mA at 12VDC
- Minimum sound pressure level of 70dB at 30cm/12VDC
- Continuous tone
- Operating temperature range from -20°C to 70°C
- Material noryl is black
- Dimension of 13.7mm x 7.6mm
- Internal circuitry type
Applications
Audio, Consumer Electronics, Portable Devices
Product details
| Supply Voltage Max | 16V |
| Transducer Function | Buzzer |
| Sound Level Distance | 30cm |
| Sound Level SPL | 70dB |
| Tones | Continuous |
| Resonant Frequency | 4.1kHz |
| Product Range | - |
| Supply Voltage Min | 3V |
| Operating Current Max | 7mA |
Other details
| Brand | KINGSTATE |
| Part Number | KPEG242 |
| Quantity | Each |
| Technical Data Sheet EN |  |
