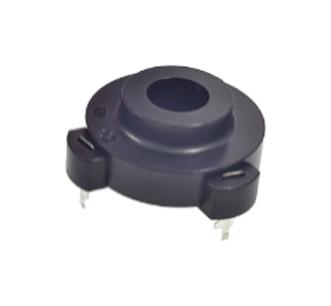

Product Overview
- Continuous tone piezo indicator (active buzzer)
- High SPL
- Pin type installation
- 3200±500Hz frequency, 30mA at 3VDCmaximum current consumption
- 100dB at 30cm/3VDC minimum SPL
- ABS (black) material
- Operation temperature range from -20 to 70°C
- Dimension is 39.00 x 16.00mm
Product details
Technical Specifications
Transducer Function
Buzzer
Sound Pressure Level (SPL)
100dB
Transducer Mounting
Through Hole
Housing Material
ABS (Acrylonitrile Butadiene Styrene)
Operating Temperature Min
-20°C
Resonant Frequency
3.2kHz
Operating Current Max
30mA
Sound Level Distance
300mm
Operating Voltage Range
2VDC to 5VDC
Operating Temperature Max
70°C
Other details
| Brand |
KINGSTATE |
| Part Number |
KPEG191V3 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
