Product Overview

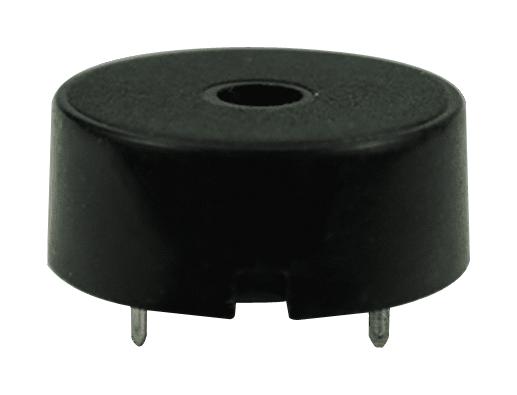

- Continuous tone piezo transducer (passive buzzer)
- High / low temperature resistant
- Pin type installation
- 2.0KHz frequency, 10.0mA at 10Vp-p, Square Wave, 2.0KHz maximum current consumption
- 78dB at 10cm/10Vp-p, Square Wave, 2.0KHz minimum SPL
- 25,000pF ±35% at 120Hz/1V electrostatic capacity
- PBT (black) material
- Operation temperature range from -35 to 80°C
- Dimension is 17.00 x 8.00mm
Product details
Technical Specifications
Transducer Function
Buzzer
Sound Pressure Level (SPL)
78dB
Transducer Mounting
Through Hole
Housing Material
PBT (Polybutylene Terephthalate)
Operating Temperature Min
-35°C
Operating Current Max
10mA
Sound Level Distance
100mm
Operating Voltage Range
10V p-p
Operating Temperature Max
85°C
Other details
| Brand |
KINGSTATE |
| Part Number |
KPEG153L-2K |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
