Product Overview

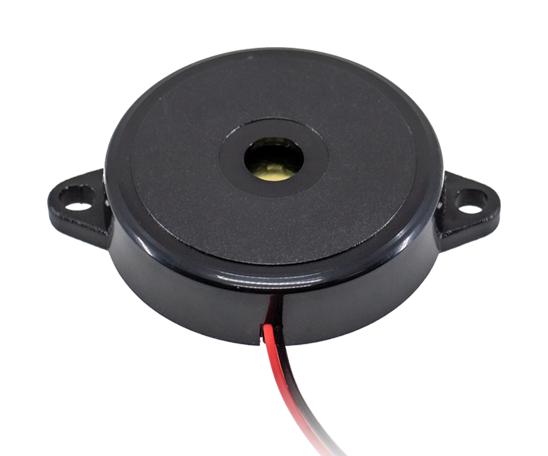

- Continuous tone piezo transducer (passive buzzer)
- High SPL, high / low temperature resistant
- Wire type installation
- 3.3KHz frequency, 60mA at 40Vp-p, square wave, 3.3KHz maximum current consumption
- 105dB at 10cm/23Vp-p square wave. 3.3KHz minimum SPL
- 50,000pF ±30% at 120Hz/1V electrostatic capacity
- ABS (black) material
- Operation temperature range from -30 to 70°C
- Dimension is 34.50 x 9.00mm
Product details
Technical Specifications
Transducer Function
Buzzer
Sound Pressure Level (SPL)
105dB
Resonant Frequency
3.3kHz
Transducer Mounting
Panel Mount
Sound Level Distance
100mm
Housing Material
ABS (Acrylonitrile Butadiene Styrene)
Operating Temperature Min
-30°C
Operating Current Max
60mA
Operating Voltage Range
5V p-p to 45V p-p
Operating Temperature Max
70°C
Other details
| Brand |
KINGSTATE |
| Part Number |
KPEG140W05028AZ |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
