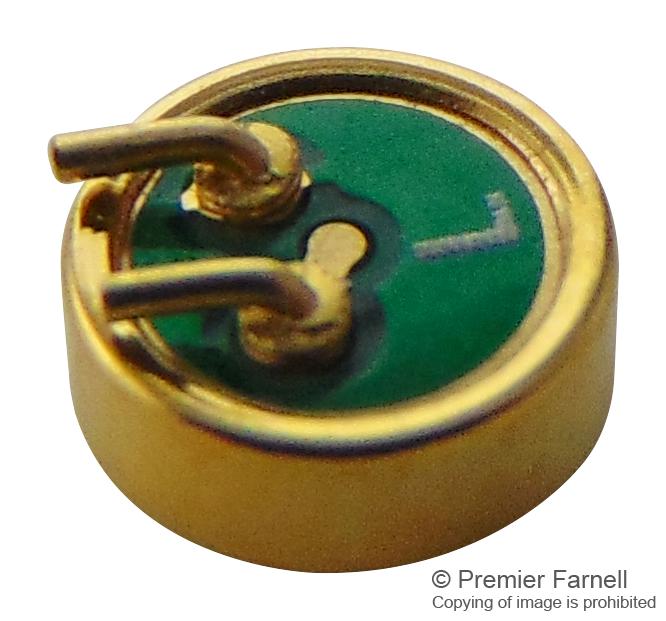

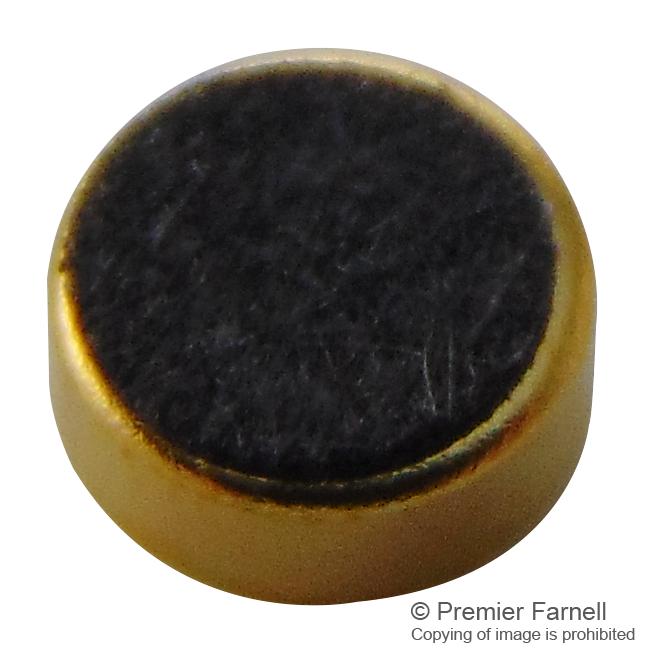

The KEEG1542PBL-A is a 0.5mA 10V omnidirectional Electret Condenser Microphone, brass construction with gold-plated finish, gold-plated pin type terminal, 58dBA signal to noise ration, -42dB sensitivity and 180Hz to 20kHz frequency range.
- -20 to 70°C Operating temperature range
Applications
Audio
Product details
| Transducer Function |
Microphone |
| Directivity |
Omnidirectional |
| Frequency Response Min |
180Hz |
| Frequency Response Max |
20kHz |
| Supply Voltage Min |
- |
| Supply Voltage Max |
10V |
| Sensitivity (dB) |
-42dB |
| Drain Current Max |
500µA |
| Output Impedance |
2.2kohm |
| Product Range |
- |
Other details
| Brand |
KINGSTATE |
| Part Number |
KEEG1542PBL-A |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
