Description

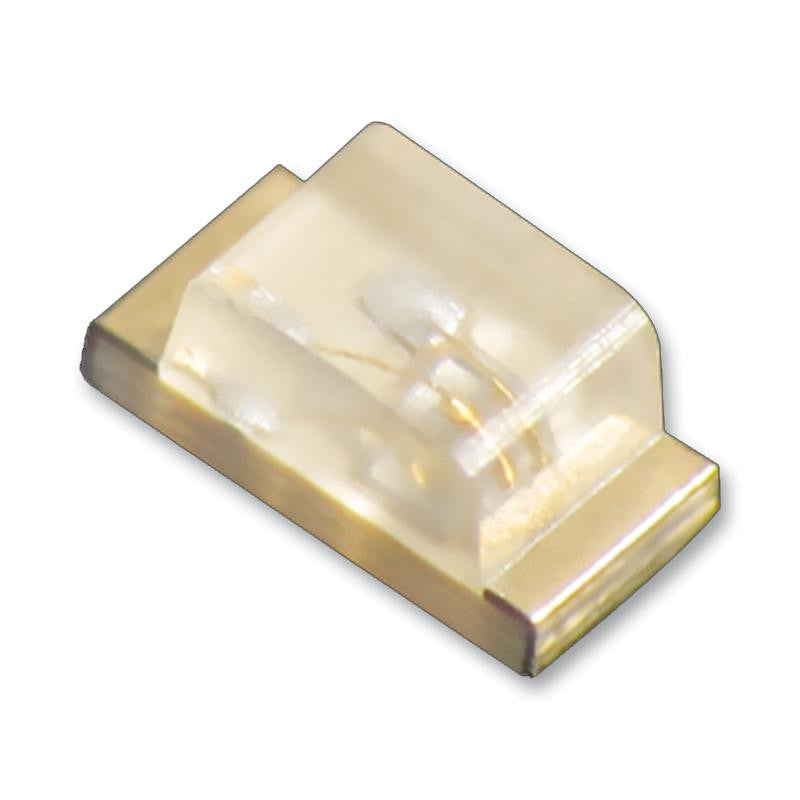

The KPT-1608EC from Kingbright is a surface mount high efficiency red colour rectangular chip LED. The device is made of gallium arsenide phosphide on gallium phosphide orange light emitting diode which can operate with wide viewing angle and low power consumption.
- Standard size of 1.6mm x 0.8mm SMT LED, 0.75mm thickness
- Luminous intensity of 8mcd at 20mA
- Viewing angle is 120°
- Forward voltage is 2V
- Forward current (If) is 20mA
- Dominant wavelength is 617nm at IF=20mA
- Peak wavelength is 627nm at IF=20mA
- Water clear lens type
Applications
LED Lighting, Portable Devices, Industrial, Consumer Electronics
Product details
| LED Colour | Red |
| Bulb Size | - |
| LED Mounting | SMD |
| Forward Voltage | 2V |
| Lens Shape | Rectangular |
| Luminous Intensity | 8mcd |
| Product Range | - |
| Automotive Qualification Standard | - |
| Wavelength Typ | 617nm |
| Viewing Angle | 120° |
| Forward Current If | 20mA |
| Packaging | Cut Tape |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | KINGBRIGHT |
| Part Number | KPT-1608EC |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 45.5 |
| 3-5 | ₹ 45.04 |
| 5-10 | ₹ 44.11 |
| 10+ | ₹ 43.18 |
Bulk discount will be automatically applied during checkout based on quantity.
