Description

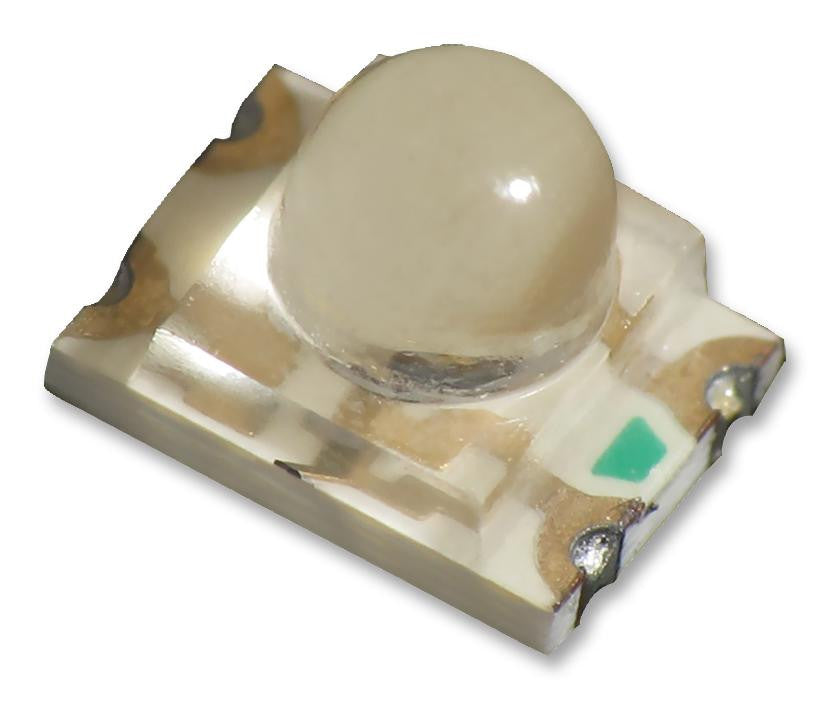

The KPBD-3224SURKCGKC is a red/green SMD chip LED Lamp with dome lens. The hyper red source device is made with AlGaInP on GaAs substrate. The green source device is made with AlGaInP on GaAs substrate. This LED lamp is ideal for backlight and indicator.
- 3.2 x 2.4mm SMT LED, 2.4mm Thickness
- Low Power Consumption
- Level-3 Moisture Sensitivity
Applications
Consumer Electronics
Warnings
ESD sensitive device, take proper precaution while handling the device, all personnel in an ESD protected area should wear antistatic garments and wrist straps.
Product details
| LED Colour | Green, Red |
| Bulb Size | - |
| Wavelength / Colour | R 630nm, G 570nm |
| LED Mounting | SMD |
| Luminous Intensity / Colour | - |
| Lens Shape | Dome |
| Product Range | - |
| Automotive Qualification Standard | - |
| Forward Current / Colour | R 20mA, G 20mA |
| Viewing Angle | 20° |
| Packaging | Each |
| Forward Voltage / Colour | R 1.95V, G 2.1V |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | KINGBRIGHT |
| Part Number | KPBD-3224SURKCGKC |
| Quantity | Each |
| Technical Data Sheet EN |  |
