Description

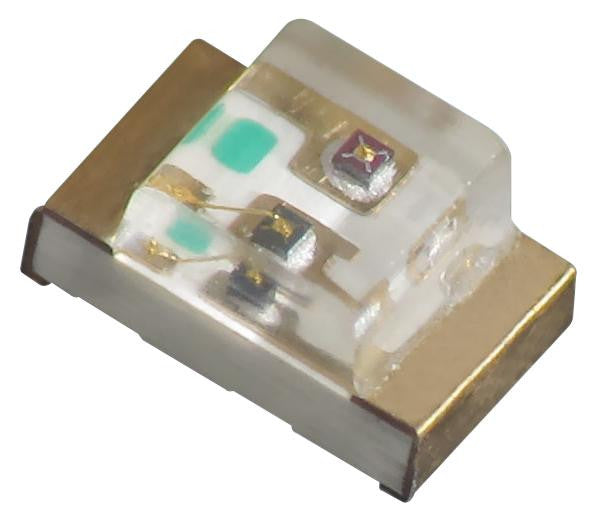

The KPB-2012SURKCGKC is a red/green Chip LED Lamp with water clear lens, SMD mounting, rectangular-shaped lens, 150� viewing angle, 80 and 50mcd luminous intensity and 630 and 570nm wavelength. The hyper red source colour device is made with AlGaInP on GaAs substrate. The green source colour device is made with AlGaInP on GaAs substrate. Ideal for backlight and indicator.
- 1.1mm Thickness
- Bi-colour, low power consumption
Applications
LED Lighting
Product details
| LED Colour | Green, Red |
| Bulb Size | - |
| Wavelength / Colour | R 630nm, G 570nm |
| LED Mounting | SMD |
| Luminous Intensity / Colour | R 80mcd, G 50mcd |
| Lens Shape | Rectangular |
| Product Range | - |
| Automotive Qualification Standard | - |
| Forward Current / Colour | R 20mA, G 20mA |
| Viewing Angle | 150� |
| Packaging | Cut Tape |
| Forward Voltage / Colour | R 1.95V, G 2.1V |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | KINGBRIGHT |
| Part Number | KPB-2012SURKCGKC |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
