Kinefinity MAVO mark2 6K S35 Digital Cinema Camera (KineMOUNT)

Built around a high-performance processor and a new S35 3:2 CMOS image sensor, the MAVO mark2 6K S35 Digital Cinema Camera from Kinefinity is ready to work with the large variety of existing Super35-format lenses using the included KineMOUNT and a separately available lens adapter of your choice. And with frame rates up to 6K 96 fps and 4K 112 fps, dual native 800/3200 ISOs, 14+ stops of dynamic range, and cleaner imaging, the MAVO mark2 S35 offers enhanced video capture in both standard and low-light settings.

• A new 3:2 CMOS image sensor and advanced processing enable the MAVO mark2 S35 to better retain highlight details, enhancing your capture of nuanced lighting environments.
• High frame rate options include up to 6K wide 96 fps and 4K wide 112 fps for creating beautiful slow-motion sequences.
• Kine LOG3 gamma recording preserves the complete dynamic range captured by the sensor.

The included, durable KineMOUNT can be quickly adapted for use with EF, PL, and LPL adapters.

• The MAVO mark2 S35 offers the broadest range of lens compatibility, working with almost any lens.
• Compatible with cine-style, EF-mount, and electronic Sony E-mount lenses and more using adapters.
• Use the MAVO mark 2 S35 with the new active PL and Sony E-mounts to add electronic control when using compatible lenses.
• The separately available active lens mounts support focus, iris, zoom, and image stabilization functions.
• The active Sony-E mount supports lens metadata display and transfer as does the active PL mount (Cooke/i technology).

• High-performance computing provides advanced color processing and better highlight performance.
• Greater storage bandwidth enables Apple ProRes 4444/XQ clips to be recorded to KineMAG Nano SSDs.
• Upload custom 3D LUTs or use the Rec.709 neutral in-camera LUT.

• The compact, MAVO mark2 6K S35 body weighs just 3 lb, suiting it for handheld and gimbal use.
• Interfaces include two proprietary video outputs, one HD video output, and a control port.
• The MAVO mark2 S35 offers multichannel audio recording, an RS-232 port, and an RS power/trigger port.

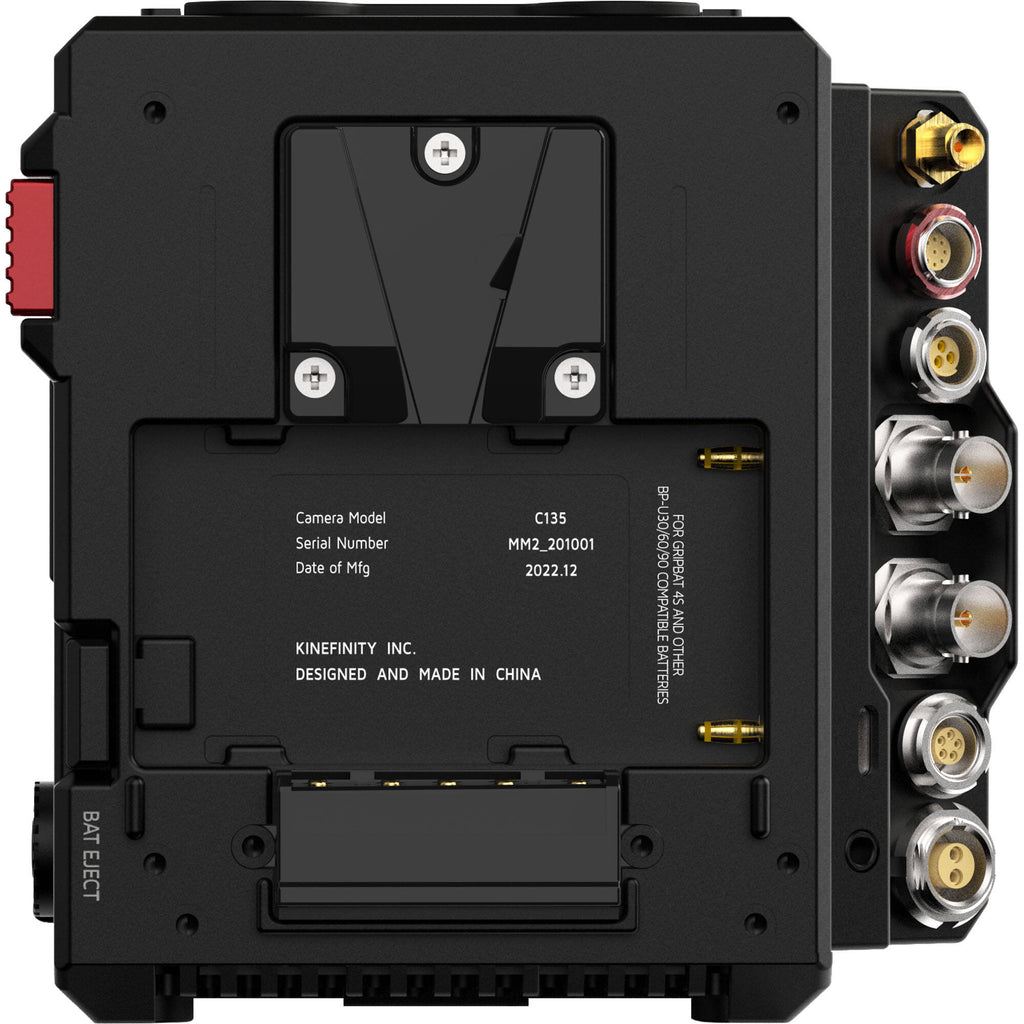

• A hybrid battery plate supports both 14.8V V-mount and smaller BP-U batteries.

• The MAVO mark2 S35 is compatible with Kinefinity TERRA accessories.
• An OLED viewfinder, 5" or 7" monitor, and SideGrip are available separately.
• Use with the separately available KineBACK-W to add dual 3G-SDI, dual XLR audio, timecode, sync, and additional interfaces.

• The MAVO mark2 S35 offers Apple ProRes recording options ranging from 422LT to 4444XQ.
• Frame rate and resolution options are available at rates up to 6K wide in 4444XQ.
• These ProRes codecs speed up your workflow, saving significant time in post-production.
• Set the Raw cDNG compression ratio to 3:1, 5:1, or 7:1 for DaVinci Resolve compatibility.

• The MAVO mark2 S35 offers both 5.3K 4:3 and 4.9K 6:5 anamorphic modes, enabling you to choose S35 2x or 1.33x anamorphic lenses.
• Images are de-squeezed in the camera for easier monitoring.

• Record using the proprietary 1TB or 2TB KineMAGs with read-only and RAID 5 safety features.
• Use the KineMAG Nano Body to record to third-party NVMe M.2 2280 SSDs.

Key Specs

Imaging

Exposure Control

Video Capture

Interface

Environmental

General
