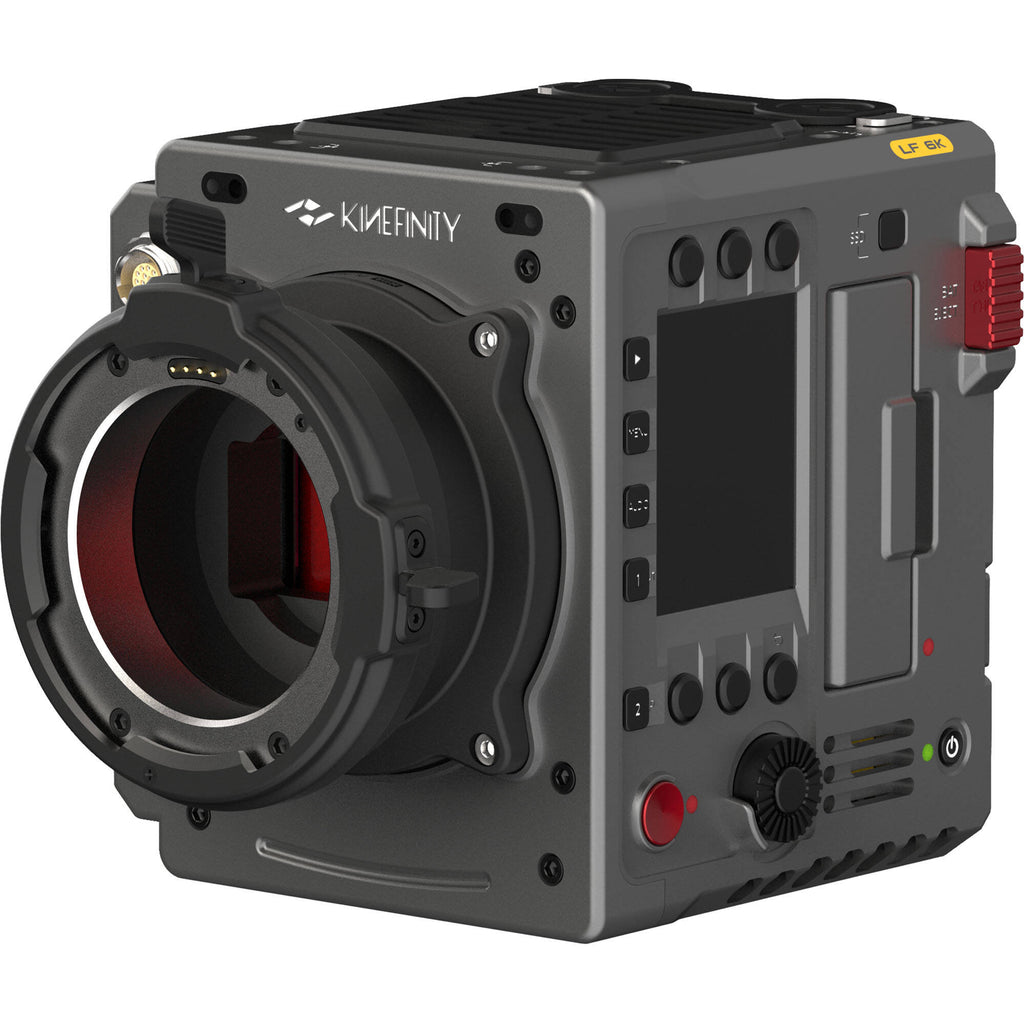

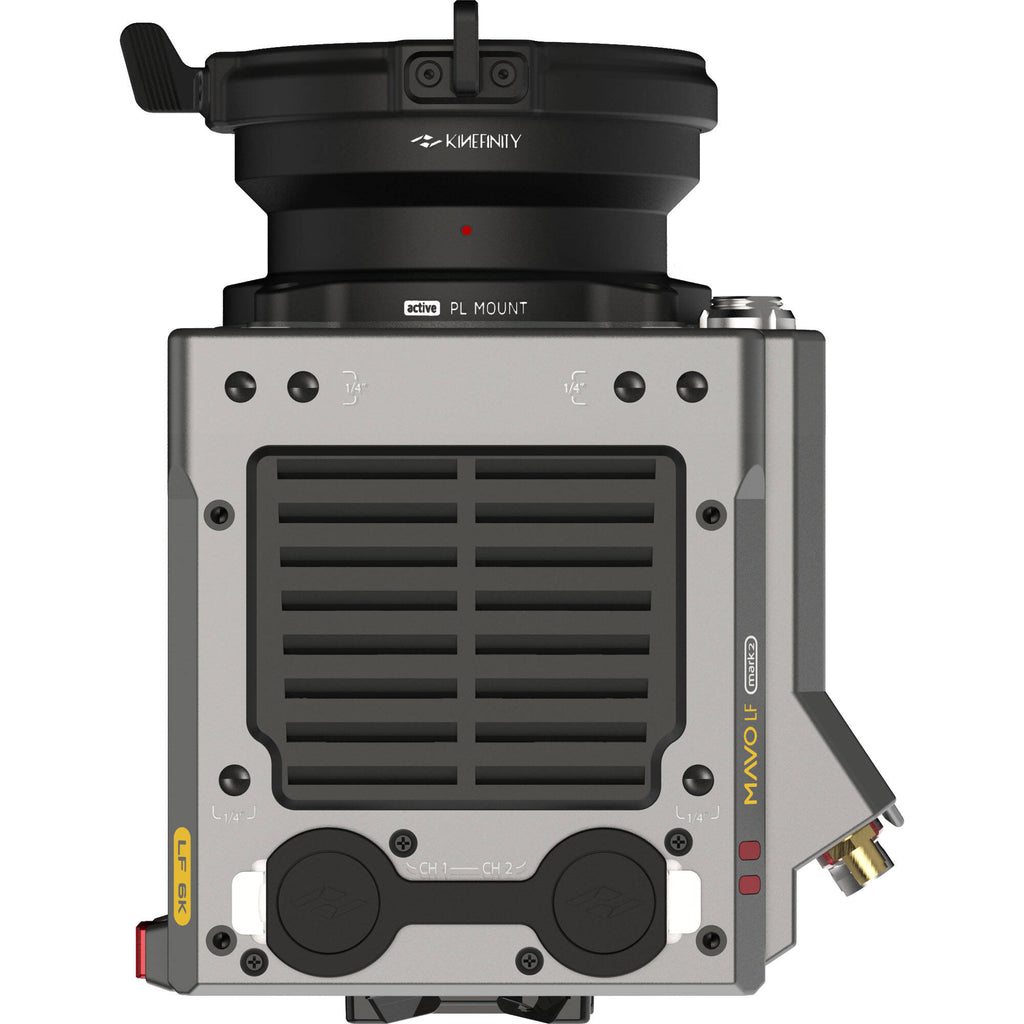

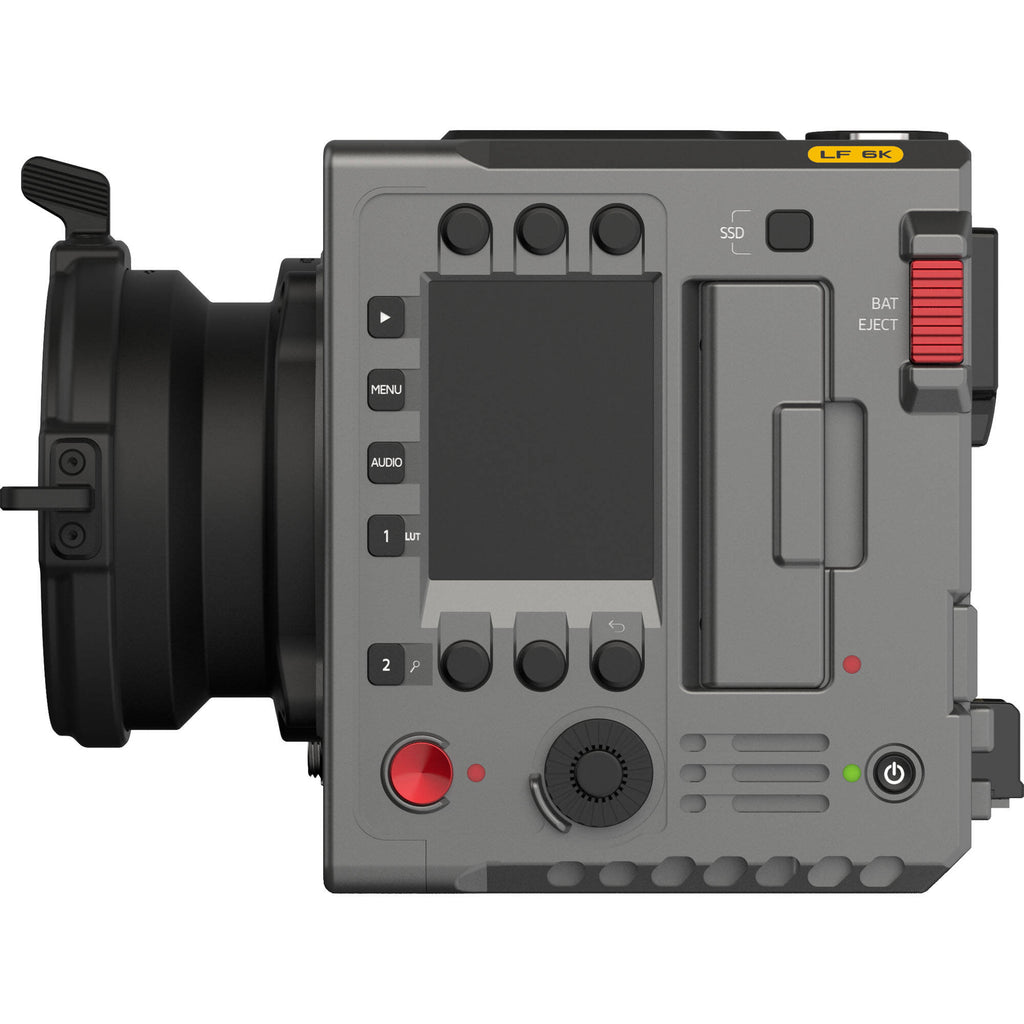

Kinefinity MAVO mark2 6K LF Digital Cinema Camera with Pro Pack (Active PL Mount)

Add an EVF to your MAVO LF, Edge 8K, or TERRA 4K camera with this KineEVF OLED Viewfinder from Kinefinity. The viewfinder features a micro-OLED display with a 1920 x 1080 resolution that can view the video from your camera in crisp detail in 16 million colors. A built-in diopter allows you to adjust the focal view based on your eyesight. There is also a built-in proximity sensor to power off if it is not being used. The compact, lightweight EVF uses very little power, and it receives power and data using a separately available EVF cable from the camera.

The KineMON 7U Monitor Package from Kinefinity features the 7" KineMON 7U on-camera monitor, a video cable, a 6" mounting arm, and a sun hood. The monitor features an LCD screen with a 1920 x 1200 resolution and brightness of 2000 cd/m². It supports input from the MAVO LF, TERRA 4K, or MAVO Edge 8K camera over a separately available proprietary cable that provides video and power to the monitor. It features a 1000:1 contrast ratio and supports 24-bit RGB colors and a 100% Rec.709 color gamut.

The KineMON 7U runs KineOS, which allows you to view and adjust monitor settings. It features a fast boot-up time and low power consumption, and it provides a sharp picture with natural color. A 1/4"-20 mounting thread is provided on the bottom, top, and right sides to mount it onto a rig using the included mounting arm or a variety of optional mounts.

Connect your KineEVF viewfinder with a MAVO or TERRA camera to monitor your camera output with this Kine Video Cable from Kinefinity. The 12" long cable features 14-pin connectors on either end to connect to the ports on your KineEVF video input and your camera video output, and the camera provides both power and video to the viewfinder. There are right-angle connectors on each end for a better fit.

Add fast and ample media for high-resolution video capture with your MAVO Edge 8K camera using the 1TB KineMAG Nano from Kinefinity. The KineMAG Nano is designed specifically for the MAVO Edge 8K camera slots, and it has a heat-dissipating plate on the body to keep the temperature cool. Inside, an NVMe M.2 2280 SSD allows you to record up to 1TB of video, and it features read-only and RAID 5 write settings for the safety of your data. To offload your data, there is a high-speed USB-C 3.1 Gen 2 port that allows you to transfer data up to 10 Gb/s directly to your computer.

Power your MAVO or TERRA camera with the GripBAT 4S BP-U30 Battery from Kinefinity. The GripBAT 4S is also compatible with Sony cameras that accept a BP-U30 battery, such as the FS5, FS7, FX6, and FX9. This battery pack features a capacity of 45Wh and 14.8V power output with a continuous 5A current.

Small and lightweight, lithium-ion batteries do not suffer from memory effects due to charging a partially discharged battery. The battery also features over/undervoltage, overcurrent, and overtemperature protection. A 4-LED status meter indicates the remaining battery level.

Keep all your GripBAT batteries charged with the PD Hybrid Dual Charger from Kinefinity. The charger allows you to charge two GripBAT 2S L-series batteries, two GripBAT 4S BP-U30 batteries, or one of each simultaneously, even though they are different battery types.

The charger also allows you to charge the batteries using PD fast charge with the optional 65W PD power adapter. The charger is powered using a separately available USB Type-C charge cable or adapter that supports 60W and above PD charging, and the Kinefinity 65W PD Power Adapter is recommended.

The GripBAT 2S L-Series Battery from Kinefinity works with cameras, lights, and monitors that use Sony NP-F550/570 series batteries, and it comes in a striking red and white design. This battery pack features a capacity of 3500mAh / 26Wh and a 7.4V power output with a continuous 5A current.

The battery is well suited for powering L-series compatible light fixtures for extended lengths of time. Small and lightweight, lithium-ion batteries do not suffer from memory effects due to charging a partially discharged battery. The battery also features over/undervoltage, overcurrent, and over-temperature protection. It takes approximately 60 minutes to fully charge the battery using the separately available Kinefinity PD Hybrid Dual Charger.

Add a variety of mounting options to your MAVO Edge with this KineKIT Edge Camera Cage from Kinefinity. The cage is made up of a D-shaped top handle, a top plate, a mini viewfinder bracket for the KineEVF, a top NATO rail, a side plate with rosette, a 15mm baseplate with dual L-series power option, and a bottom adapter plate.

The baseplate can provide a battery backup for your camera using two optional L-series batteries such as the GripBAT 2S. The camera mounts onto a contact plate to draw battery power, allowing you to swap the main camera batteries with uninterrupted power. The bottom plate can be extended with a separately available 19mm rod baseplate using an optional dovetail plate.

Protect and transport your MAVO Edge 6K or 8K camera and accessories with this Hard-Shell Carry Case from Kinefinity. The durable hard case features a custom-cut foam insert to hold your MAVO Edge 6K or 8K camera along with batteries, charger, cables, media, and other accessories. The case closes via locking latches on three sides, and padlock holes allow you to secure it further. A handle provides a durable carry option.
