Description
Kinefinity MAVO S35 MKII Overview
- 1Description
- 2MAVO mark2 6K S35: Super35 Versatility
- 3CMOS Image Sensor
- 4KineMOUNT and Active E-Mount Adapter
- 5Comprehensive Lens Options
- 6Advanced Processing
- 7Lightweight, Integrated Body
- 8Accessory Options
- 9Frame Rate and Resolution Options
- 10S35 Anamorphic
- 11Flexible Recording Media
By Photo's
Mary Latvis
MAVO mark2 6K S35: Super35 Versatility
Built around a high-performance processor and a new S35 3:2 CMOS image sensor, the
MAVO mark2 6K S35 Digital Cinema Camera from
Kinefinity is ready to work with the large variety of existing Super35-format lenses using the native KineMOUNT and the included active E lens adapter. And with frame rates up to 6K 96 fps and 4K 112 fps, dual native 800/3200 ISOs, 14+ stops of dynamic range, and cleaner imaging, the MAVO mark2 S35 offers enhanced video capture in both standard and low-light settings.
CMOS Image Sensor
- A new 3:2 CMOS image sensor and advanced processing enable the MAVO mark2 S35 to better retain highlight details, enhancing your capture of nuanced lighting environments.
- High frame rate options include up to 6K wide 96 fps and 4K wide 112 fps for creating beautiful slow-motion sequences.
- Kine LOG3 gamma recording preserves the complete dynamic range captured by the sensor.
KineMOUNT and Active E-Mount Adapter
- The included, durable KineMOUNT can be quickly adapted for use with EF, PL, and LPL adapters.
- The active E-mount adapter supports most Sony E lenses.
- Provides electronic and manual focus, iris, and zoom control for compatible lenses.
- Offers electronic image stabilization for compatible lenses.
Comprehensive Lens Options
- The MAVO mark2 S35 offers the broadest range of lens compatibility, working with almost any lens.
- Compatible with cine-style, EF-mount, and electronic Sony E-mount lenses and more using adapters.
- Use the MAVO mark 2 S35 with the new active PL and Sony E-mounts to add electronic control when using compatible lenses.
Advanced Processing
- High-performance computing provides advanced color processing and better highlight performance.
- Greater storage bandwidth enables Apple ProRes 4444/XQ clips to be recorded to KineMAG Nano SSDs.
- Upload custom 3D LUTs or use the Rec.709 neutral in-camera LUT.
Lightweight, Integrated Body
- The compact MAVO mark2 6K S35 body weighs just 3 lb, suiting it for handheld and gimbal use.

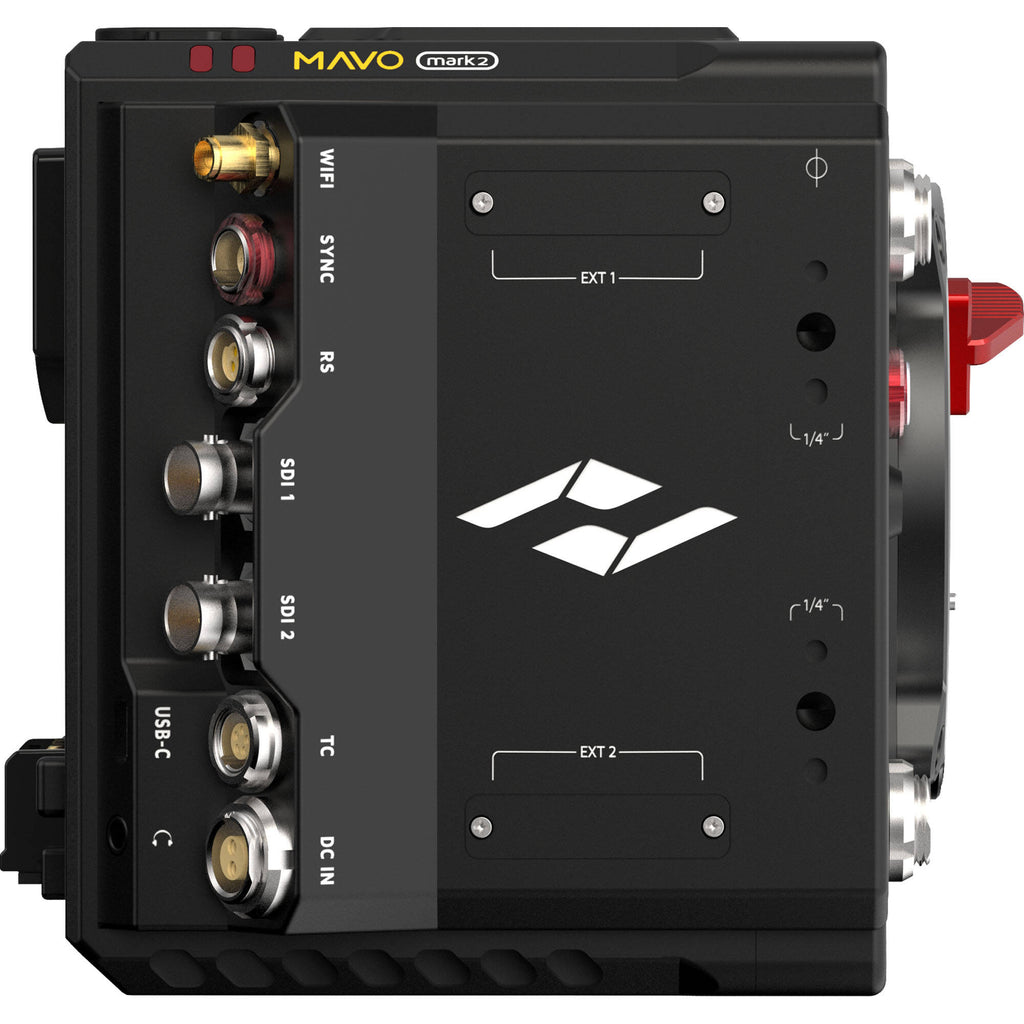

- Interfaces include two proprietary video outputs, one HD video output, and a control port.
- The MAVO mark2 S35 offers multichannel audio recording, an RS-232 port, and an RS power/trigger port.
- A hybrid battery plate supports both 14.8V V-mount and smaller BP-U batteries.
Accessory Options
- The MAVO mark2 S35 is compatible with Kinefinity TERRA accessories.
- An OLED viewfinder, 5" or 7" monitor, and SideGrip are available separately.
- Use with the separately available KineBACK-W to add dual 3G-SDI, dual XLR audio, timecode, sync, and additional interfaces.
Frame Rate and Resolution Options
- The MAVO mark2 S35 offers Apple ProRes recording options ranging from 422LT to 4444XQ.
- Frame rate and resolution options are available at rates up to 6K wide in 4444XQ.
- These ProRes codecs speed up your workflow, saving significant time in post-production.
- Set the Raw cDNG compression ratio to 3:1, 5:1, or 7:1 for DaVinci Resolve compatibility.
S35 Anamorphic
- The MAVO mark2 S35 offers both 5.3K 4:3 and 4.9K 6:5 anamorphic modes, enabling you to choose S35 2x or 1.33x anamorphic lenses.
- Images are de-squeezed in the camera for easier monitoring.
Flexible Recording Media
- Record using the proprietary 1TB or 2TB KineMAGs with read-only and RAID 5 safety features.
- Use the KineMAG Nano Body to record to third-party NVMe M.2 2280 SSDs.
In the Box
- Kinefinity mark2 6K S35 Digital Cinema Camera (Active E Mount)
- KineMOUNT Lens Mount
- Active E Lens Mount
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Cine Lenses (Not Included)
Table of Contents
- Description
- MAVO mark2 6K S35: Super35 Versatility
- CMOS Image Sensor
- KineMOUNT and Active E-Mount Adapter
- Comprehensive Lens Options
- Advanced Processing
- Lightweight, Integrated Body
- Accessory Options
- Frame Rate and Resolution Options
- S35 Anamorphic
- Flexible Recording Media
Kinefinity MAVO S35 MKII Specs
Key Specs
| Lens Mount |
KineMOUNT
Sony E with Included Adapter |
| Sensor Resolution |
Effective: 25 Megapixel (6144 x 4016)
|
| Image Sensor |
24 x 16 mm (Super35) CMOS
|
| ISO Sensitivity Range |
800 to 3200 (Extended: 800 to 5120)
|
| Internal Recording Modes |
RawProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT/ProRes 4444/ProRes 4444XQ 10/12-Bit
6144 x 4016 from 0.2 to 60.00 fps 6144 x 3240 from 0.2 to 75 fps 6144 x 2516 from 0.2 to 96 fps 5760 x 3240 from 0.2 to 75 fps 5120 x 2700 from 0.2 to 90 fps 5120 x 2160 from 0.2 to 112 fps 5760 x 3840 from 0.2 to 60.00 fps 5120 x 3840 from 0.2 to 60.00 fps 4864 x 3840 from 0.2 to 60.00 fps ProRes/ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT/ProRes 4444/ProRes 4444XQ 10/12-Bit 3840 x 2460 from 0.2 to 60.00 fps 3840 x 2160 from 0.2 to 75 fps 3840 x 1600 from 0.2 to 96 fps 3456 x 2460 from 0.2 to 60.00 fps 3072 x 2460 from 0.2 to 60.00 fps |
| Media/Memory Card Slot |
Single Slot: KineMAG Nano SSD
|
| Video I/O |
2x Proprietary (Unspecified Signal) Output
1x BNC (3G-SDI) Output |
| Mobile App Compatible |
Yes, Adapter Required (Included): Android & iOS
App Name: Kinefinety App Functionality: Adjust Settings, Remote Control, View Live Feed |
| Battery Type |
V-Mount
|
Imaging
| Lens Mount |
KineMOUNT
Sony E with Included Adapter |
| Lens Communication |
Yes
|
| Sensor Resolution |
Effective: 25 Megapixel (6144 x 4016)
|
| Image Sensor |
24 x 16 mm (Super35) CMOS
|
| Image Stabilization |
No
|
| Built-In ND Filter |
No
|
| Capture Type |
Video Only
|
Exposure Control
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Type |
Electronic Rolling Shutter
|
| ISO Sensitivity Range |
800 to 3200 (Extended: 800 to 5120)
|
| Shutter Angle |
0.7 to 358°
|
| Advertised Dynamic Range |
14 Stops
|
Video Capture
| Internal Recording Modes |
RawProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT/ProRes 4444/ProRes 4444XQ 10/12-Bit
6144 x 4016 from 0.2 to 60.00 fps 6144 x 3240 from 0.2 to 75 fps 6144 x 2516 from 0.2 to 96 fps 5760 x 3240 from 0.2 to 75 fps 5120 x 2700 from 0.2 to 90 fps 5120 x 2160 from 0.2 to 112 fps 5760 x 3840 from 0.2 to 60.00 fps 5120 x 3840 from 0.2 to 60.00 fps 4864 x 3840 from 0.2 to 60.00 fps ProRes/ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT/ProRes 4444/ProRes 4444XQ 10/12-Bit 3840 x 2460 from 0.2 to 60.00 fps 3840 x 2160 from 0.2 to 75 fps 3840 x 1600 from 0.2 to 96 fps 3456 x 2460 from 0.2 to 60.00 fps 3072 x 2460 from 0.2 to 60.00 fps |
| External Recording Modes |
No
|
| Sensor Crop Modes |
Four Thirds
4096 x 3072 4096 x 2160 4096 x 1720 3840 x 2160 3840 x 1600 2048 x 1080 2048 x 860 1920 x 1080 1920 x 800 Super16 2048 x 1080 2048 x 860 1920 x 1080 1920 x 800 |
| Fast-/Slow-Motion Support |
Yes
|
| Gamma Curve |
KineLOG3, Rec709
|
| Built-In Microphone Type |
Mono
|
| Audio Recording |
2-Channel 24-Bit 48 kHz LPCM Audio
|
| IP Streaming |
No
|
Interface
| Media/Memory Card Slot |
Single Slot: KineMAG Nano SSD
|
| Video I/O |
2x Proprietary (Unspecified Signal) Output
1x BNC (3G-SDI) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
1x XLR 3-Pin Input 1x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Power I/O |
1x LEMO 2-Pin (11 to 19VDC up to 3 A) Input
|
| Other I/O |
1x LEMO 5-Pin (RS-232) Control
1x LEMO 5-Pin (Timecode) 1x 9-Pin (RS-422, Sync) 1x USB-C (Firmware) |
| Wireless |
5 GHz Wi-Fi Video Output, Control
|
| Mobile App Compatible |
Yes, Adapter Required (Included): Android & iOS
App Name: Kinefinety App Functionality: Adjust Settings, Remote Control, View Live Feed |
| Global Positioning (GPS, GLONASS, etc.) |
No
|
| Focus Type |
Manual Focus Only
|
Environmental
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
General
| Battery Type |
V-Mount
|
| Power Consumption |
23 W
|
| Tripod Mounting Thread |
1x 1/4"-20 Female
2x 3/8"-16 Female |
| Accessory Mounting Thread |
4x 1/4"-20
|
| Material of Construction |
Aluminum
|
| Dimensions (W x H x D) |
4.9 x 4.2 x 4.2" / 124 x 107 x 106 mm (With Protrusions)
|
| Weight |
2.98 lb / 1.35 kg
|
