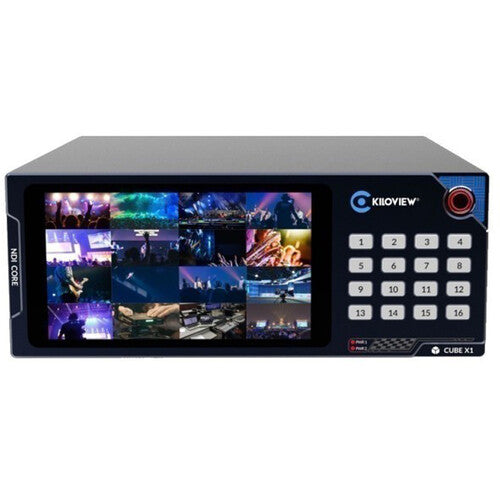

Kiloview CUBE X1 Overview
- 1Description
- 2
- 3Dual 10GbE Ports
- 4NDI Compatibility
- 5Seamless Switching & Non-Multicast Distribution
- 65.5" Touchscreen/16 Buttons
- 7Applications
- 8Web Management
- 9Network/Power Interfaces
Switch, distribute, and schedule up to 16 NDI inputs and 32 outputs using the
CUBE X1 NDI CORE Switcher from
Kiloview. This lightweight version of the NDI CORE MAX supports up to UHD 4K60 video and offers seamless switching of all NDI sources without lagging or black screens.
Dual 10GbE Ports
- Use the CUBE X1's dual 10GbE SFP+ ports to support up to 16 NDI inputs and 32 NDI outputs.
- Incorporates one 1GbE RJ45 Ethernet port.
NDI Compatibility
- The CUBE X1 supports up to 1080p60 and UHD 4K60 video resolutions.
- Compatible with NDI, NDI High Bandwidth, and NDI|HX2, the CUBE X1 will also offer future support for NDI|HX3.
- Input up to 16 channels of any NDI version using less than 2.5 Gb/s.
- Output up to 32 channels of any NDI version using less than 5 Gb/s.
Seamless Switching & Non-Multicast Distribution
- The CUBE X1 supports access to all NDI sources, providing seamless switching and unlimited distribution.
- It can also create multiple NDI outputs as needed for using the same NDI source with multiple targets.
- The same output can simultaneously support multiple NDI sources.
5.5" Touchscreen/16 Buttons
- The 5.5" touchscreen enables you to monitor your network status, storage space, and CPU usage in real time.
- Easily select your inputs/outputs using one of the 16 buttons or the touchscreen display.
- A VU meter enables you to monitor the audio status.
Applications
- Use the CUBE X1 for studio, outside broadcasting, educational, and commercial IP video signal management.
- Offers round-robin, looping, and sequential play options for conferencing and digital signage.
Web Management
- The CUBE X1 provides a web-based, customizable control panel.
- The I/O panel and the crosspoint panel provide two switching options.
- Log and permission management options provide security across the whole switching process.
Network/Power Interfaces
- This switcher features both Gigabit Ethernet and two 10GB SFP+ Ethernet ports for fast, reliable network connectivity.
- It also features redundant power supplies and two cooling fans.
In the Box
- Kiloview CUBE X1 NDI CORE Switcher
- 2 x Power Cord
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Dual 10GbE Ports
- NDI Compatibility
- Seamless Switching & Non-Multicast Distribution
- 5.5" Touchscreen/16 Buttons
- Applications
- Web Management
- Network/Power Interfaces
Kiloview CUBE X1 Specs
Processing
| Switching Type |
Pushbutton, Software, Touchscreen
|
| Processing Resolution |
UHD 4K at 60
|
Input
| Input Video Format |
Fiber / RJ45
UHD 4K up to 60 fps 1080p up to 60 fps |
| Audio Inputs |
1 x 1/8" / 3.5 mm TRS
|
| Embedded Audio Input |
RJ45
|
Output
| Video Outputs |
1 x HDMI
2 x LC Fiber |
| Output Video Format |
Fiber / HDMI
UHD 4K up to 60 fps 1080p up to 60 fps |
| Audio Outputs |
1 x 1/8" / 3.5 mm TRS
|
| Embedded Audio Output |
RJ45
HDMI |
Connectivity
| Inputs/Outputs |
2 x RJ45 (NDI)
|
| Other I/O |
1 x RJ45 LAN
2 x USB-A 2.0 Input/Output |
Display
| Display Size |
5.5"
|
| Screen Resolution |
1920 x 1080
|
Hardware
| OS Compatibility |
Linux
Windows *As of August, 2023: Check with manufacturer for the most up-to-date compatibility |
| CPU |
8-Core
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
Power
| Power I/O |
2 x IEC C14 Input
|
| Power Consumption |
Power Supply: 100 to 230 VAC
|
General
| Rack Form Factor |
2 RU
|
| Dimensions |
9.11 x 8.7 x 3.5" / 231.45 x 220 x 88 mm
|
Packaging Info
| Package Weight |
6.475 lb
|
| Box Dimensions (LxWxH) |
15.8 x 10.7 x 5.1"
|
