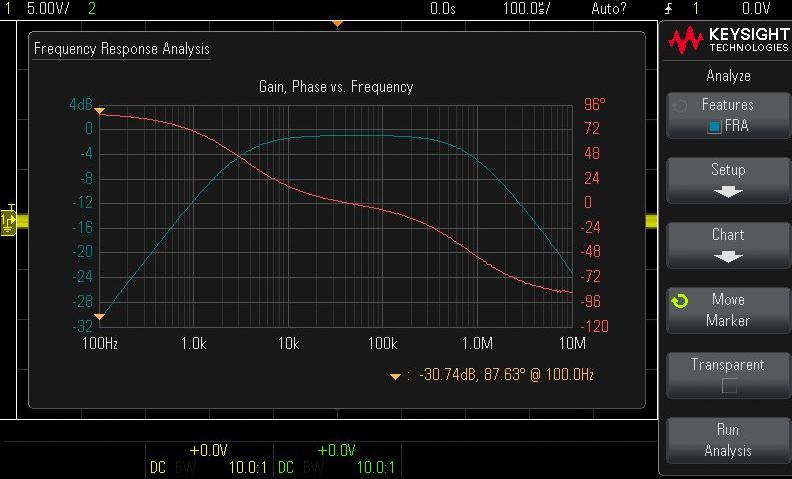

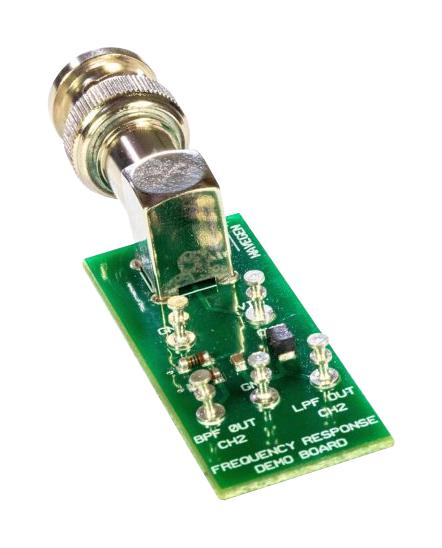

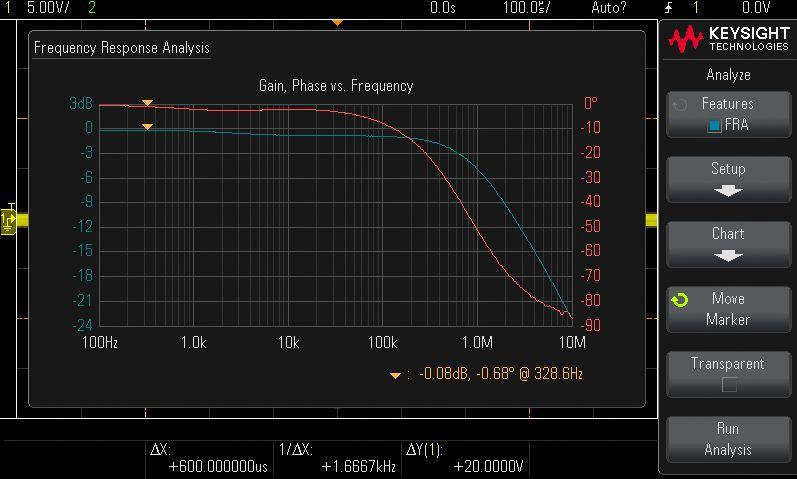

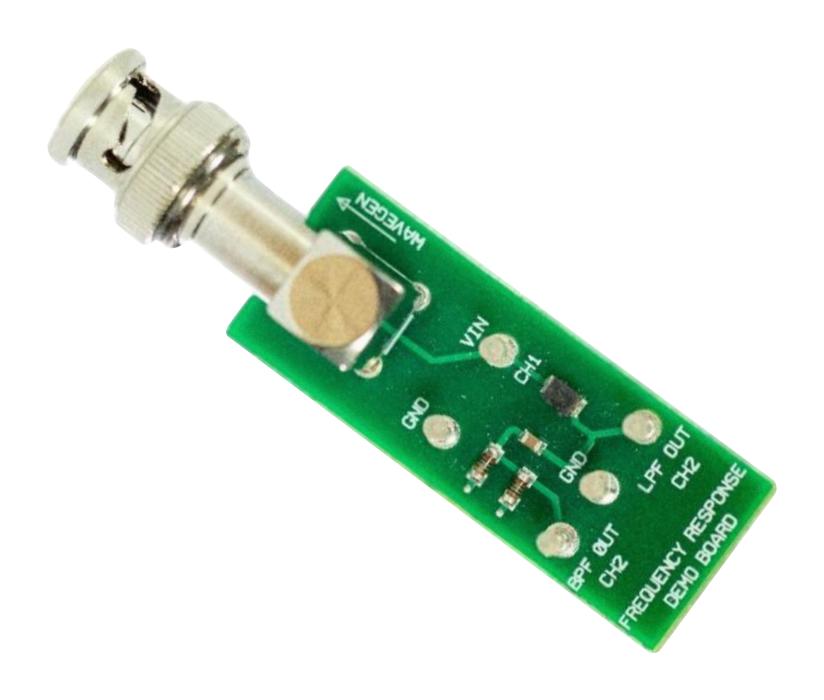

Bode plot training kit can be used to train engineering students and other oscilloscope users on how to perform frequency response analysis measurements (gain & phase Bode plots) using Keysight's InfiniiVision oscilloscopes with the built-in WaveGen function generator. It includes a small training board consisting of a series R-L-C circuit with a BNC input that attaches directly to the output of the oscilloscope's WaveGen function generator. There are clearly labelled test points for probing VIN and BPFOUT (bandpass filter output) or LPFOUT (low-pass filter output).
- Compatible with InfiniiVision XSeries "G" model oscilloscopes
- Compatible with all InfiniiVision 3000T, 4000A and 6000A X-series oscilloscopes
- BNC input connection
- Lower bandpass cut-off frequency is 3.2KHz
- Centre bandpass frequency is 50KHz
- Upper cut-off frequency is 800KHz
- Maximum input voltage is 10VPP into 50 ohm
Other details
| Brand |
KEYSIGHT TECHNOLOGIES |
| Part Number |
DSOXBODE |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
