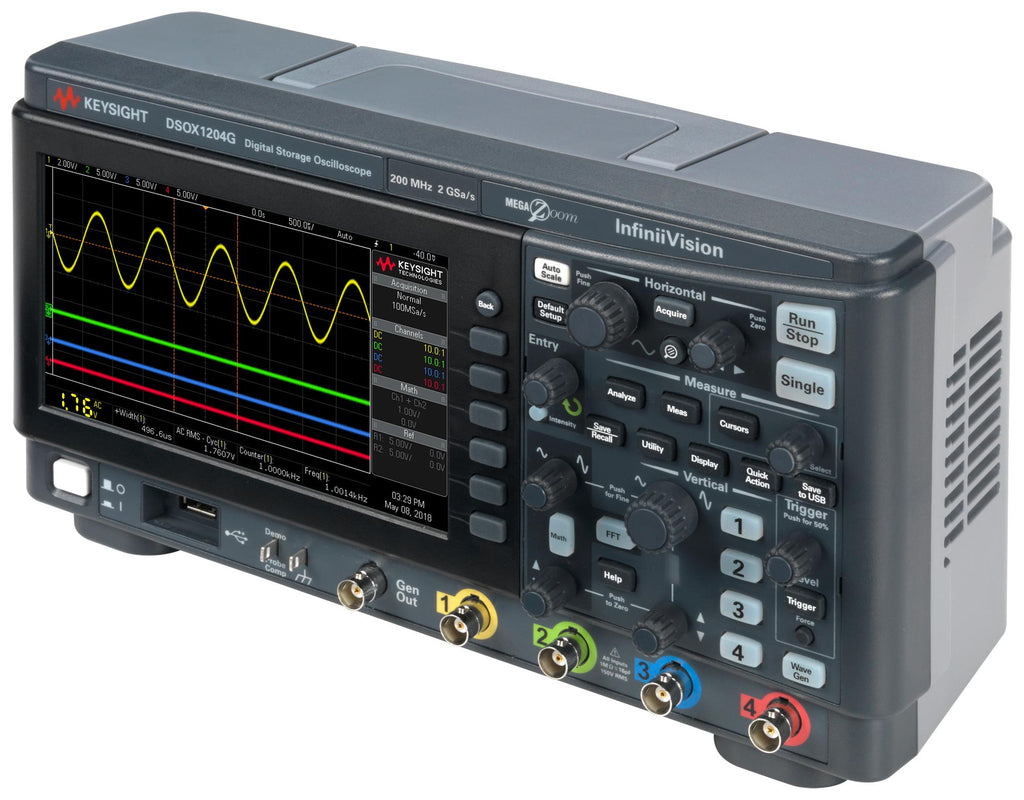

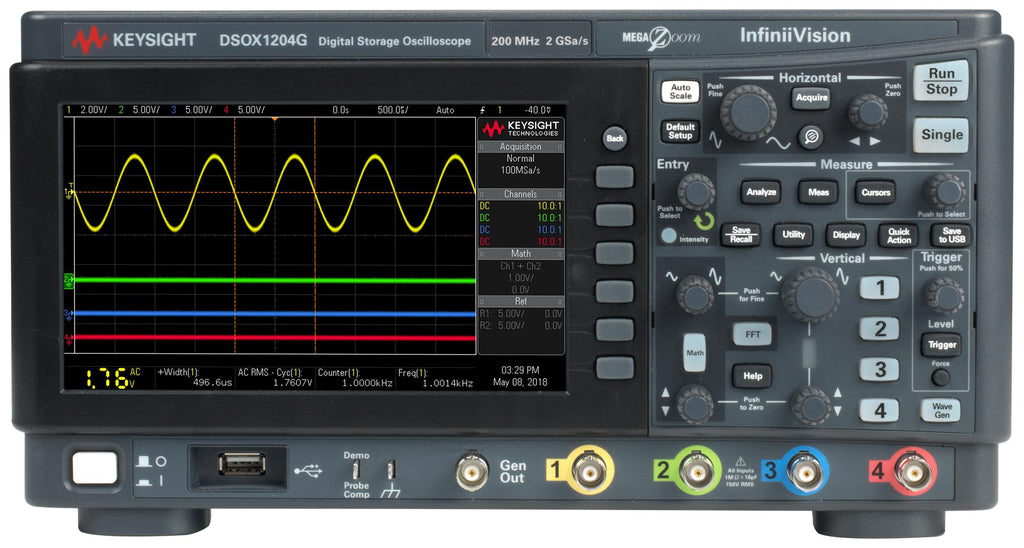

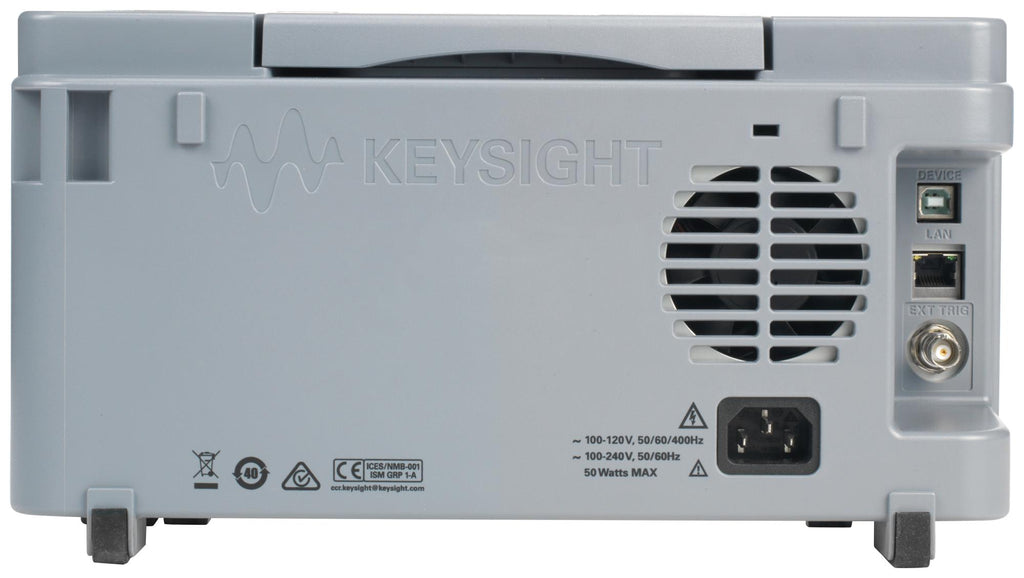

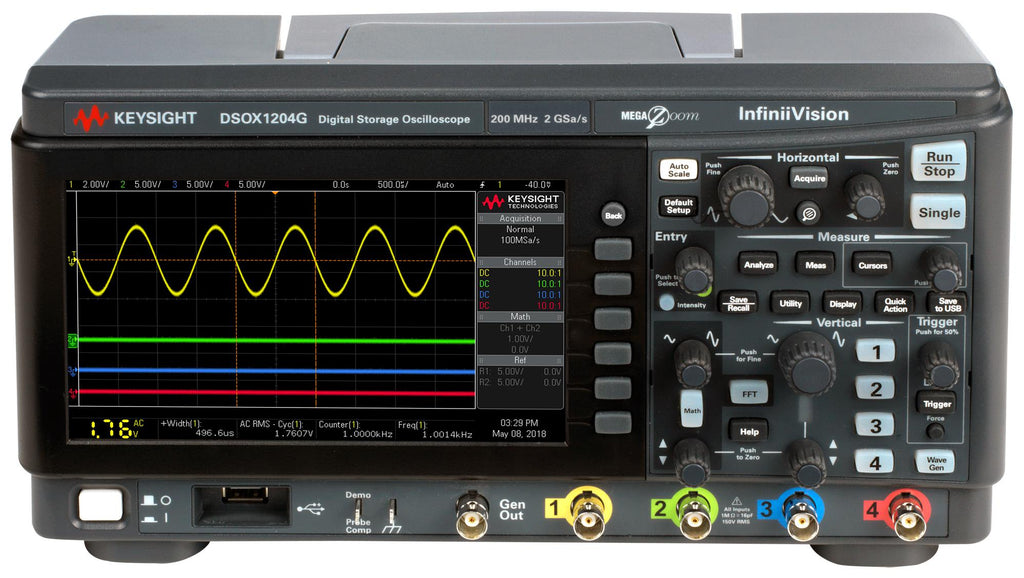

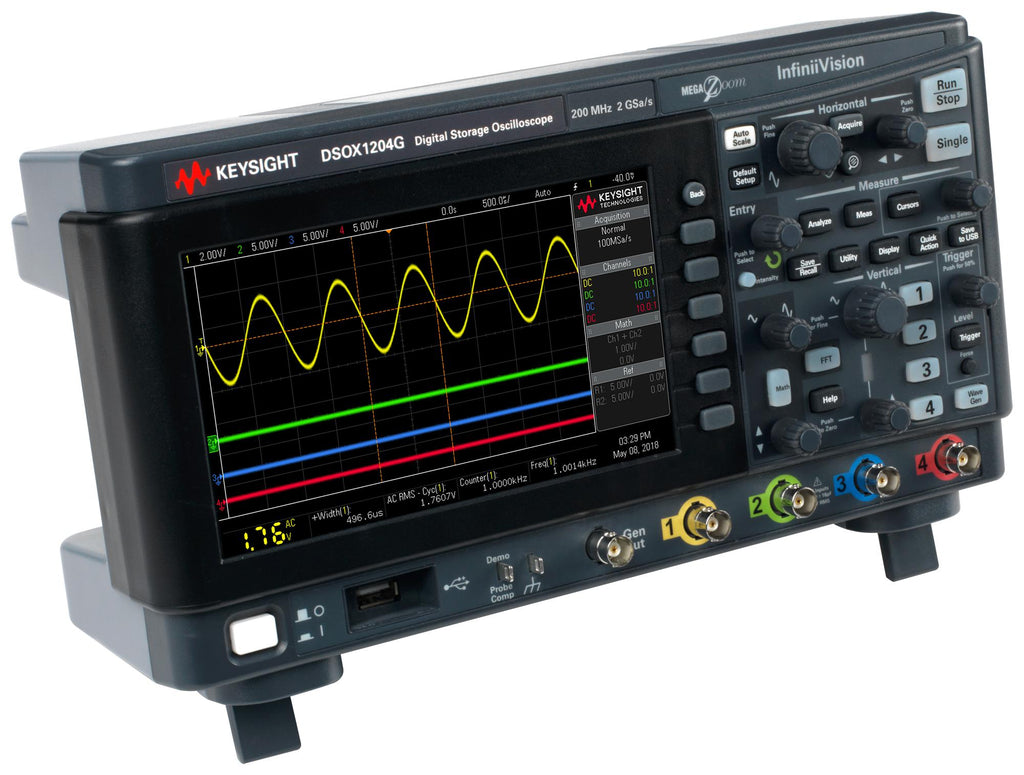

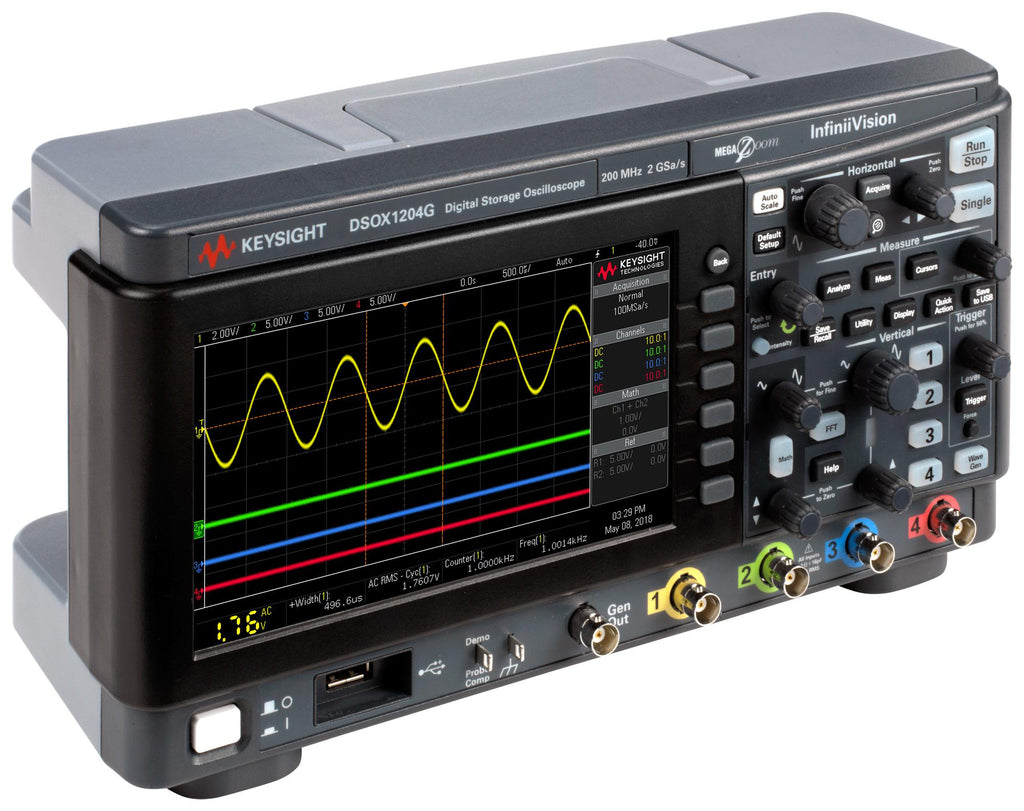

Featuring 4 input channels, along with the standard DVM and frequency counter, the 1000X is available with optional Waveform Generator and exclusive frequency response analyser to create Bode plots. Ideal for industry, hobbyist, manufacturing and educators. Built-in training signals, free lab guides and on-board help enable you to set-up, capture, measure and document with ease.
- Fast Waveform Update Rate (50,000/second)
- Intuitive, easy to use with training signals
- Standard DVM and frequency counter
- Standard LAN & USB connectivity
- Built-in Waveform Generator (option)
- Exclusive Frequency Response Analyser (option)
- 5 protocol serial decode (option)
- 3 year warranty and calibration cycle
Footnotes In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.
Product details
| Product Range |
InfiniiVision 1000 X-Series |
| Scope Channels |
4 Channel |
| Bandwidth |
200MHz |
| Sampling Rate |
1GSPS |
| Display Memory Depth |
1 Mpts |
| Calculated Rise Time |
1.7ns |
| Scope Display Type |
TFT LCD Colour |
| Kit Contents |
DSO w/200MHz BW Upgrade, 4x N2140A, Std Secure Erase, Language Support, Pwr Cord, Cal Certificate |
| Manufacturer Warranty |
3 Years |
| Plug Type |
- |
Other details
| Brand |
KEYSIGHT TECHNOLOGIES |
| Part Number |
DSOX1204G+D1200BW2A |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
| Miscellaneous EN |
|
