| ₹ 362781.13 includes GST and import duties. | |
| B2B customers can avail ₹ 55324.12 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

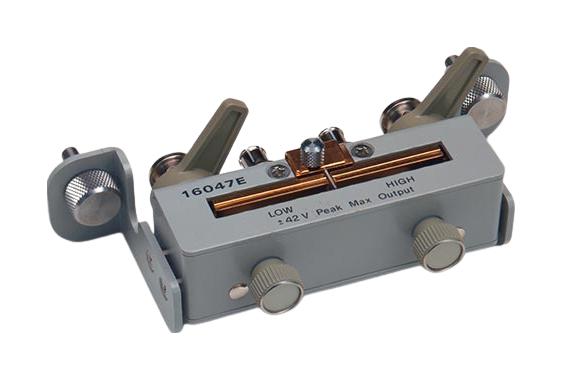

16047E test fixture is designed for impedance evaluation of lead type devices up to 120MHz. A guard terminal is available for three terminal devices and a shorting plate comes secured on this fixture.
- 4-terminal pair, BNC connector
- 2-terminal DUT connection
- Applicable instruments: E4980A/AL, E4981A, E4990A, E5061B-3L3/3L4/3L5 with Opt. 005
- Frequency range from DC to 120MHz
- Maximum voltage of ±42V peak (AC+DC)
- Operating temperature range from -20 to 75°C
- Dimension (approx) is 135 (W) x 40 (H) x 65 (D) [mm]
Test fixture, 1 x angle (right-side) 16047-01221, 1 x angle (left-side) 16047-01222, 4 x screws 0515-1229, 1 x shorting plate 16047-00621, 1 x operating and service manual 16047-90040.
Other details
| Brand | KEYSIGHT TECHNOLOGIES |
| Part Number | 16047E |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 355525.51 |
| 3-5 | ₹ 351897.7 |
| 5-10 | ₹ 344642.07 |
| 10+ | ₹ 337386.45 |
Bulk discount will be automatically applied during checkout based on quantity.
