Description
Key Digital KD-XWPS Overview
The Single-Gang 4K HDMI & USB-C over Cat 6/6a Transmitter/Receiver Kit V2 from Key Digital extends up to 4:4:4 DCI 4K30 video signals over Cat 6/6a cable at distances up to 164'. This kit supports HDR10, automatic switching, re-clocking, and EDID management. The wall plate transmitter supports PoE (Power-over-Ethernet) and is remotely powered by the receiver.

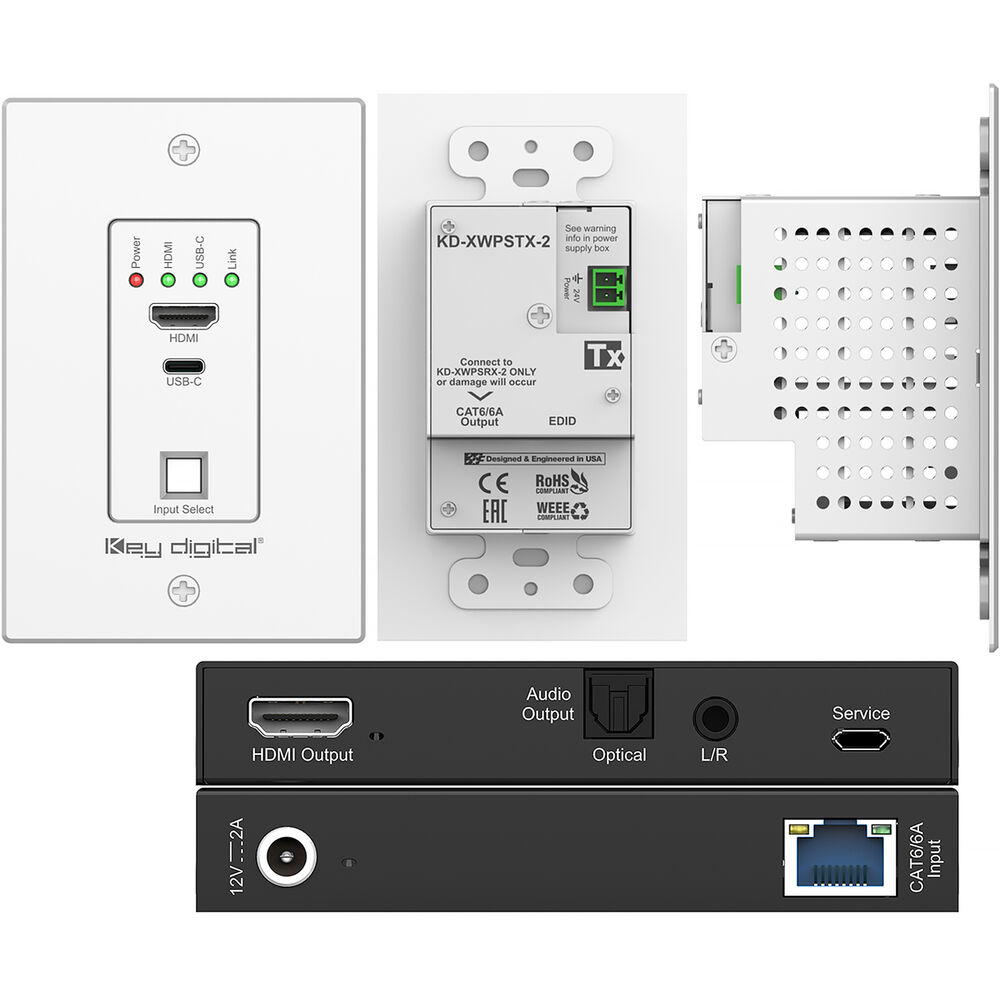

1-Gang TX & RX Kit

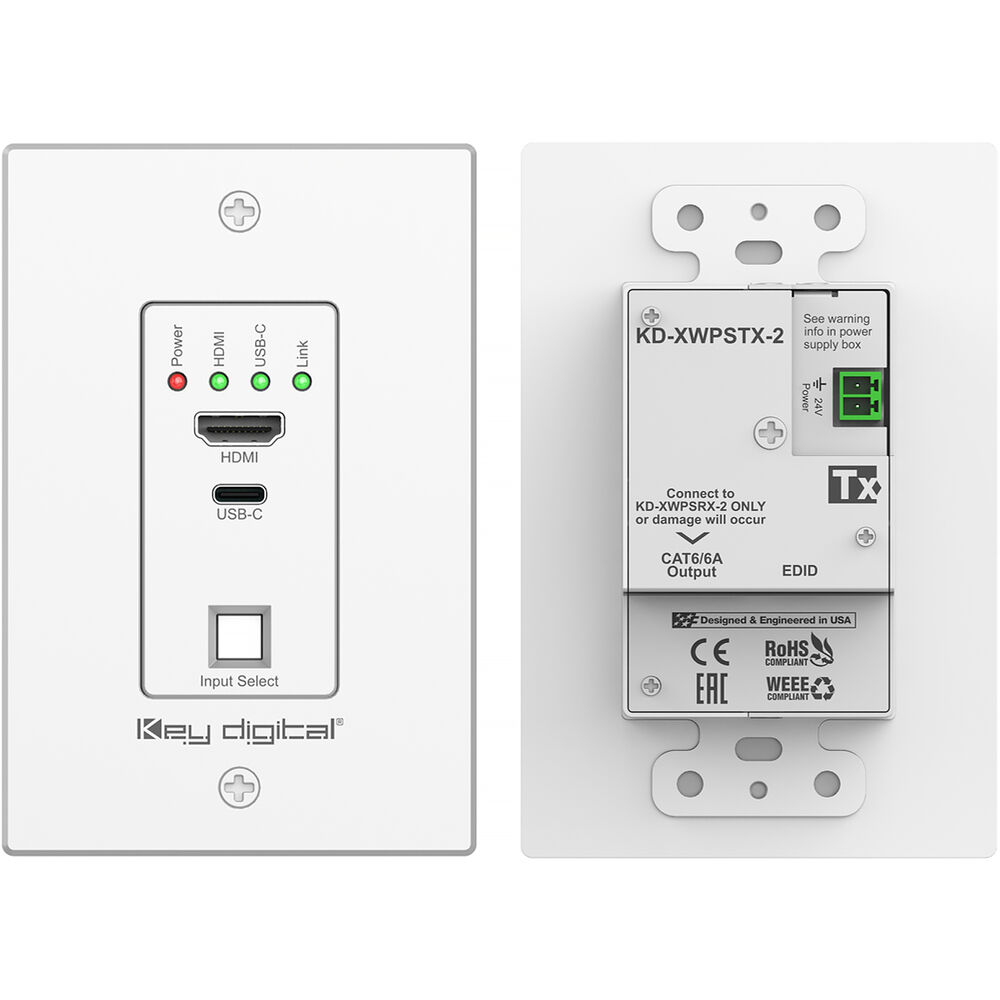

This kit consists of a single-gang wall plate switching transmitter and receiver kit with one HDMI and one USB-C input. The wall plate unit is powered by the receiver.
Applications

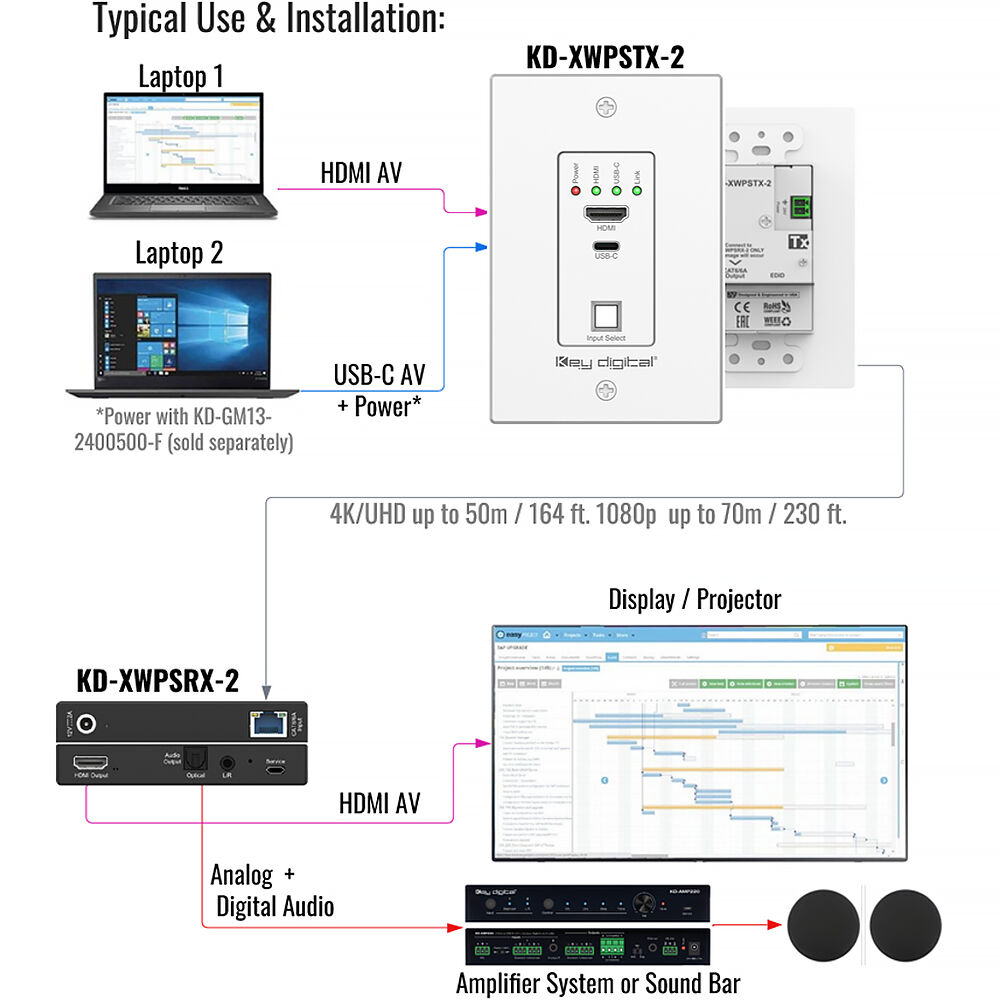

The kit is designed for professional AV systems installations in conference rooms, huddle spaces, classrooms, and more.

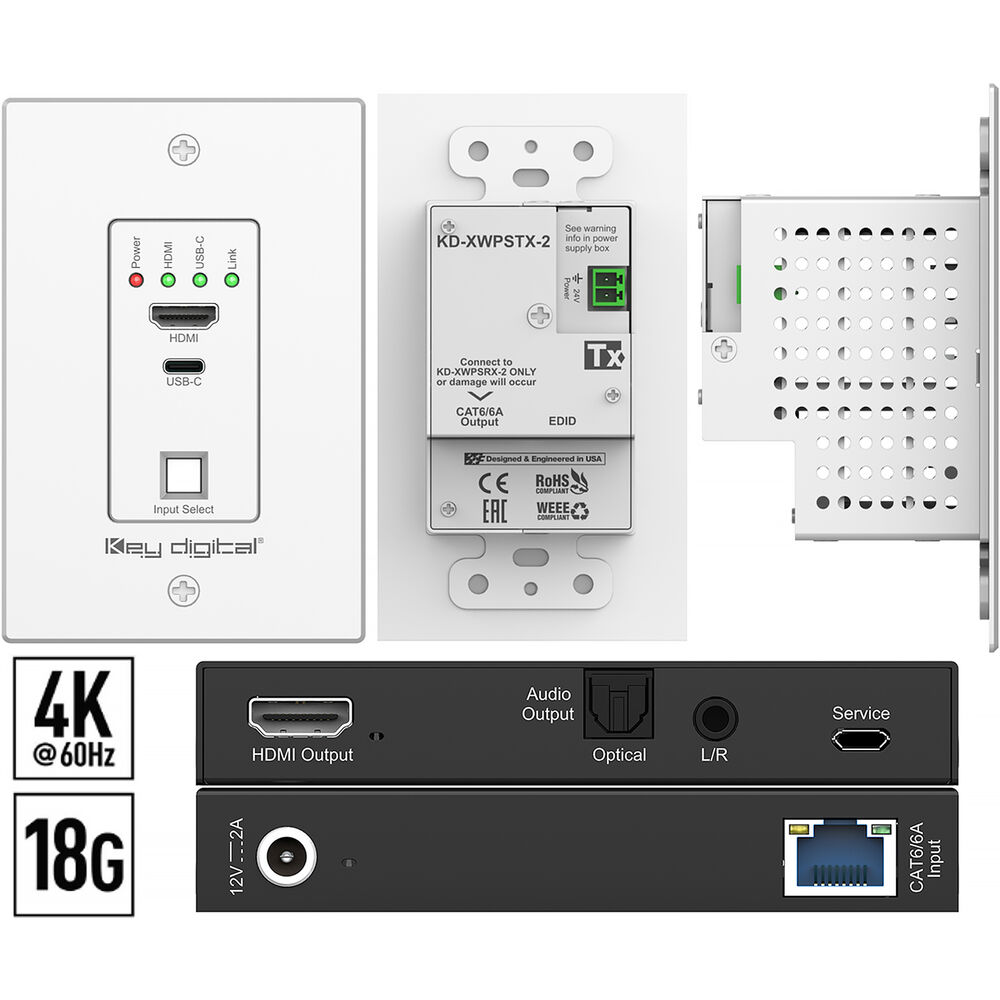

DCI/UHD 4K Video Support
UHD 4K60 resolution video at bandwidths up to 18 Gb/s is supported, with 4:4:4 chroma sub-sampling support.
Power-over-Ethernet
Only one power supply is required, as the receiver powers the transmitter plate over the Cat 6/6a connection. When a separately available transmitter plate power supply (GMB36-120200-F) is connected, the transmitter can provide power to connected USB-C devices, as well as to the receiver unit.
Compliance
EDID handshake control and audio de-embedding are supported, as well as HDCP 2.2 compliance.
Long Transmission Distance
The transmitter plate transmits up to DCI/UHD 4K video over a single Cat 6/6a cable at distances up to 164'. It can also transmit 1080p60 up to 230' away.
Full Buffer System
This kit provides TMDS re-clocking/signal regeneration, HDCP authentication to source and display, EDID Control handshake, and hot-plug detection voltage.
- Key Digital Single-Gang 4K HDMI & USB-C over Cat 6/6a Transmitter/Receiver Kit V2 (164')
- Brushed Aluminum Decora Plate
- Decora Mounting Flathead Screw Set
- Gang-Box Mounting Screw Set
- Locking Power Supply (GMB36-120200-F)
- L-Bracket Mount for RX
- Hook-and-Loop Strip Set
- Limited 3-Year Manufacturer Warranty
Key Digital KD-XWPS Specs
Interfaces
| Transmission I/O |
Transmitter:

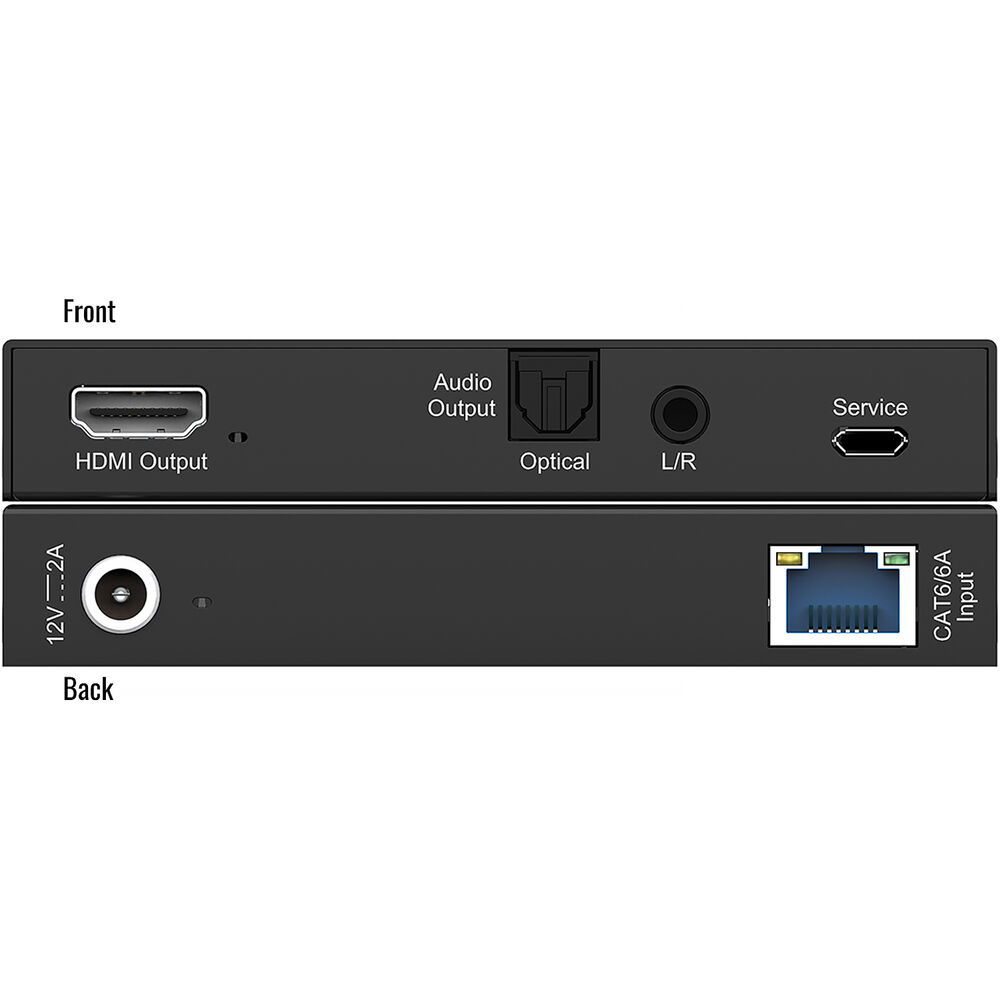

1x HDMI Female Input 1x USB-C Female Input 1x RJ45 Female (Data / HDBaseT) Output Receiver: 1x HDMI Female Output 1x TOSLINK Female (S/PDIF) Input 1x RJ45 Female (Data / HDBaseT) Input 1x 1/8" / 3.5 mm TRS Female (Analog Audio / Line) Output |
| Embedded Audio |
HDMI
USB-C |
| Power I/O |
Transmitter:
1x Block 2-Pin Input Receiver: 1x Barrel (12 VDC at 2 A) Input |
Standards
| HDR Support |
Yes
|
| Reclocking |
Yes
|
| HDCP Support |
Yes: Version 2.2
|
| EDID Support |
Auto-Detect
|
Transmission
| Max Transmission Distance |
DCI 4K, UHD 4K at 60 Hz:
164' / 50 m (via Cat 6/6a) 1080p at 60 Hz: 229.7' / 70 m (via Cat 6/6a) |
| Video Format |
HDMI/RJ45/USB :
4096 x 2160p: 24/25/30/50/60 fps 3840 x 2160p: 24/25/30/50/60 fps |
| Supported Audio System |
DTS
|
| Supported Cable Types |
Cat 6a/6e or higher
|
| Video Bandwidth |
18 Gb/s
|
Power
| PoE Support |
Yes: PoH 802.3at
|
General
| Certifications |
CE, EAC, RoHS, WEEE
|
| Wall Box Gang Size |
1 Gang
|

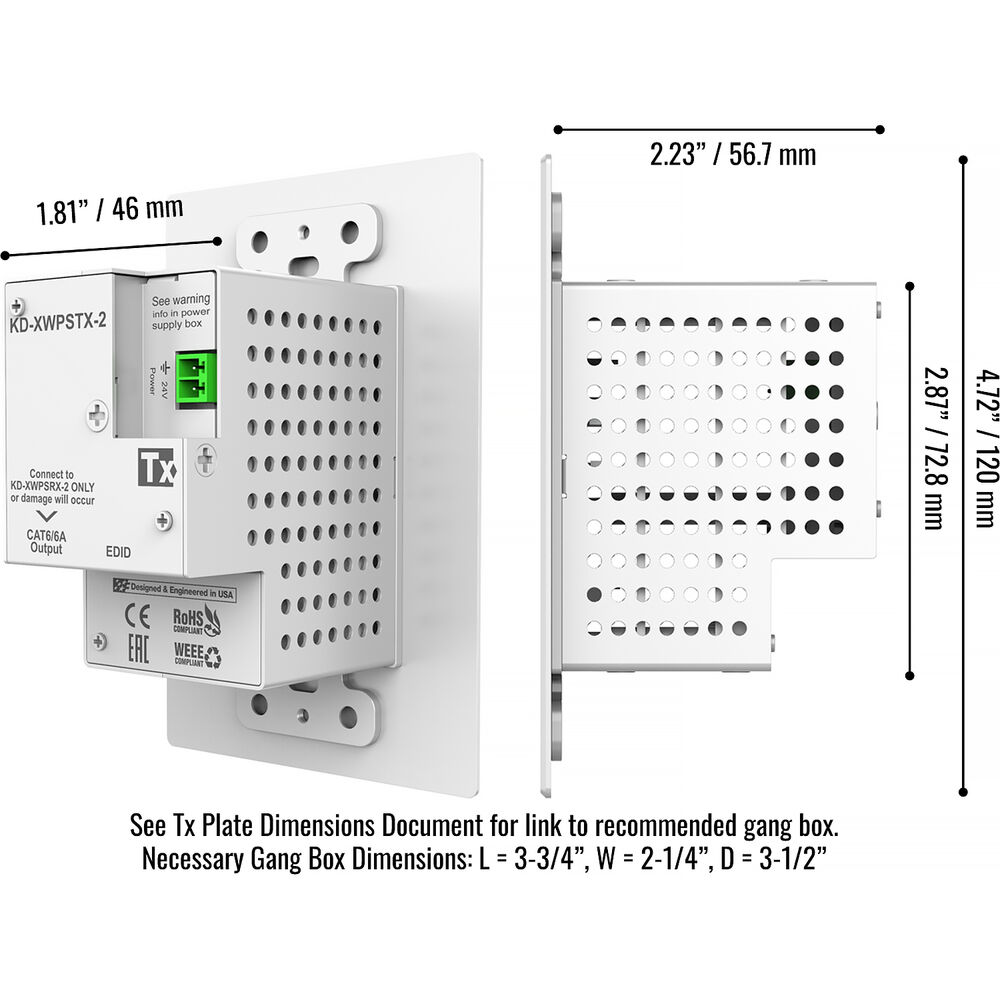

| Dimensions |
Transmitter:
4.7 x 3.1 x 2.4" / 120 x 80 x 60.7 mm Receiver: 5.6 x 2.7 x 0.7" / 142.2 x 68.3 x 18 mm |
| Weight |
Transmitter:
10.6 oz / 300 g Transmitter: 1.5 lb / 700 g |
Packaging Info
| Package Weight |
2.215 lb
|
| Box Dimensions (LxWxH) |
9 x 8.9 x 4.8"
|
