Description
Key Digital MS4X4G Overview
- 1Description
- 24 x 4 HDMI Matrix Switcher
- 3Supports up to DCI/UHD 4K Video
- 4HDR10 & Dolby Vison
- 5Computer Resolution Support
- 6Deep Color Support
- 7Independent Video/Audio Matrix
- 8Full Buffer System
- 9EDID Management
- 10Audio De-Embedding
- 11Digital Audio
- 12Control Options
- 13Key Digital App & KDMS Pro

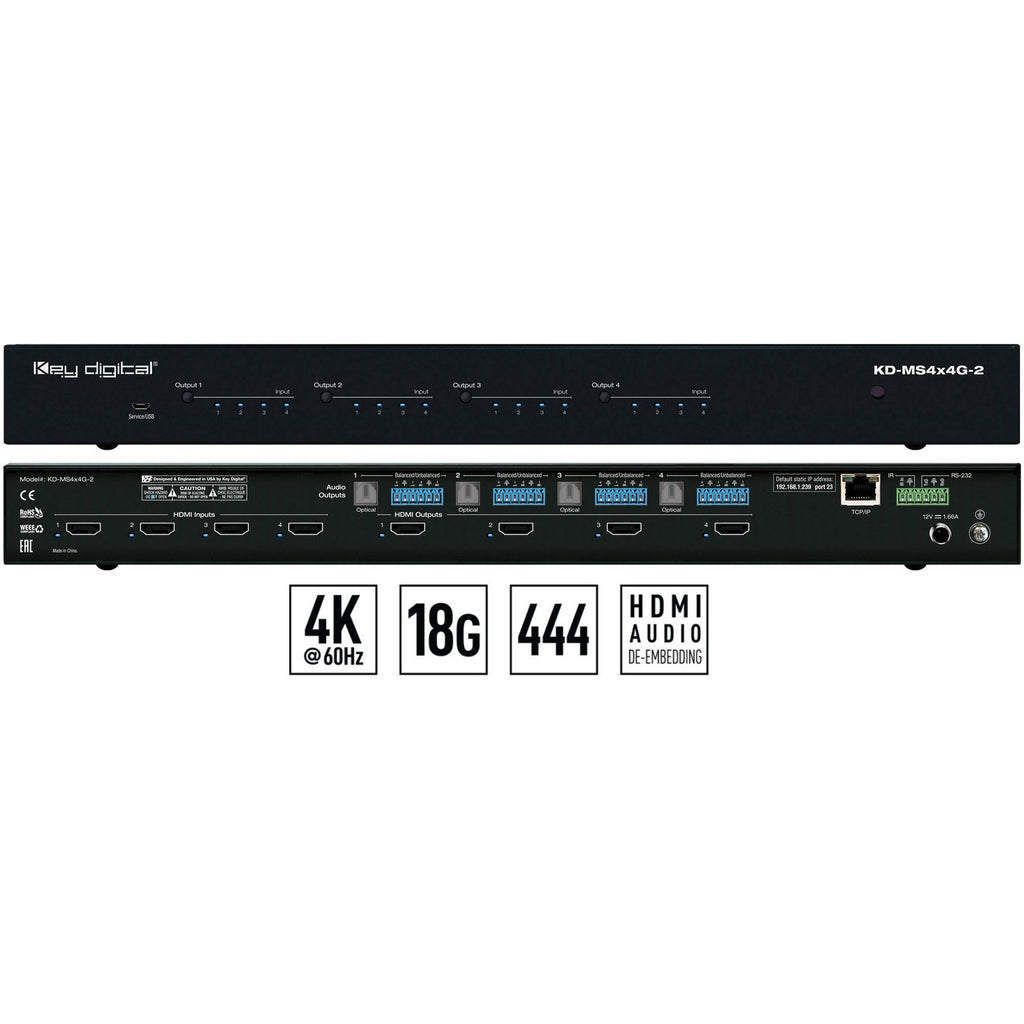

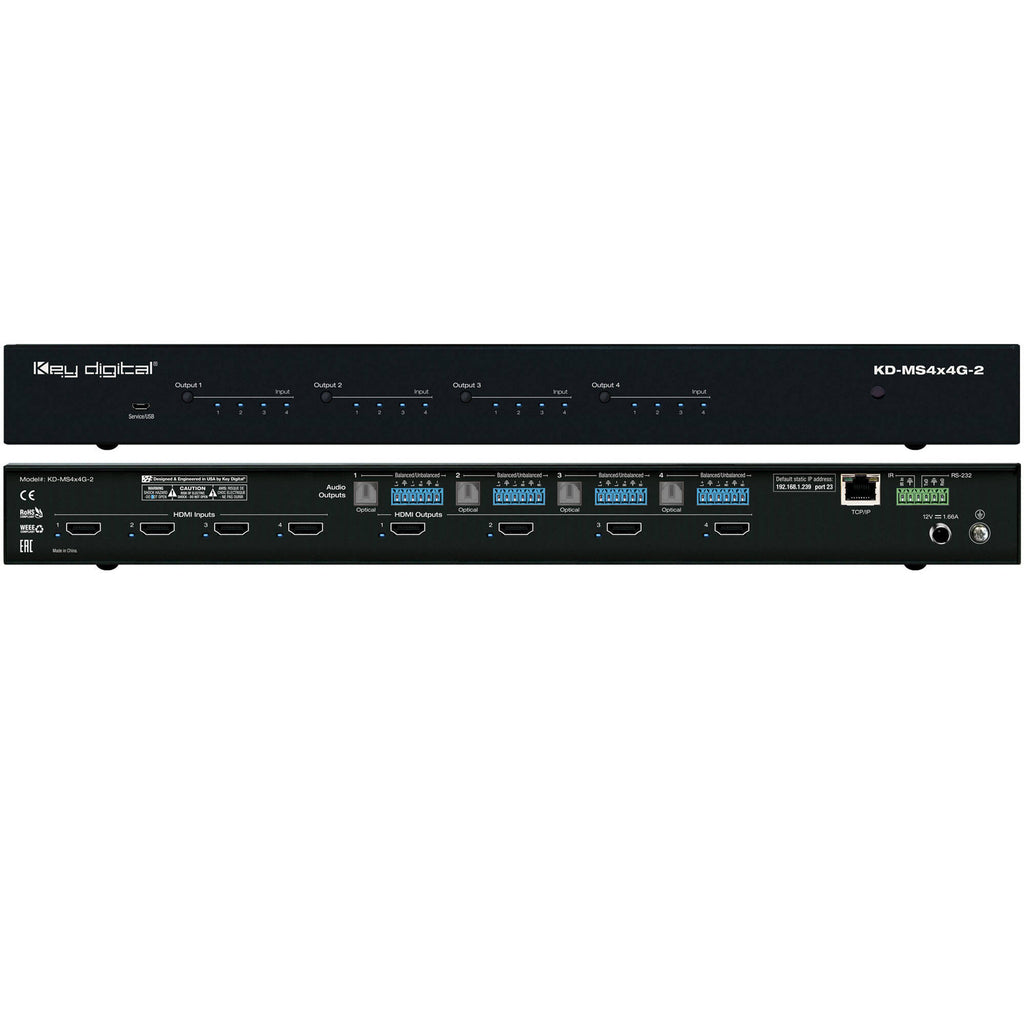

The KD-MS4x4G-2 4K HDMI Matrix Switcher from Key Digital is a 4K matrix switcher that supports DCI/UHD 4K60 4:4:4 video, HDR10 and Dolby Vision, bandwidths up to 18 Gb/s, and HDCP 2.2 for routing and distributing four HDMI source signals to four displays. This switcher features four analog and four digital audio outputs which may be independently controlled to follow the HDMI output selection or separately switched to accommodate a wide variety of usage applications in professional AV systems integration.
The KD-MS4x4G-2 supports all SD, HD, VESA, and UHD 4K video standards, and UHD 4K EDID handshake files, including HDR header information. The system can be controlled via the Key Digital app or KDMS Pro, or by IR, RS-232, and TCP/IP-supported control systems.
4 x 4 HDMI Matrix Switcher
Four HDMI input to four HDMI output matrix switcher with HDCP 2.2 support
Supports up to DCI/UHD 4K Video
DCI 4K and UHD 4K support: 4096 x 2160 or 3840 x 2160 24/25/30/60 Hz at 4:4:4 (up to 18 Gb/s bandwidth)
HDR10 & Dolby Vison
Supports HDR10 and Dolby Vison for more lifelike images through a greater range of luminance levels
Computer Resolution Support
Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) resolutions up to 4096 x 2160p
Deep Color Support
Deep color support up to UHD 4K60 4:2:0, 12-bit and UHD 4K60 4:2:2, 12-bit
Independent Video/Audio Matrix
HDMI output and audio port output can be switched together or independently
Full Buffer System
Manages TMDS re-clocking/signal re-generation, HDCP authentication to source and display, and EDID control handshakes
EDID Management
Integrated library with 15 internal EDID configurations per input, in addition to native EDID data for any output/display
Audio De-Embedding
Integrated 6-pin balanced/unbalanced and digital optical outputs
Digital Audio
Lossless compressed digital audio with Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos
Control Options
Includes front-panel buttons/LEDs, serial IR, optical IR, RS-232 control, and TCP/IP control options
Key Digital App & KDMS Pro
Scans and detects populations for pre-built GUI and TCP/IP control via the Key Digital App and Key Digital Management Software Pro (KDMS Pro) PC setup software
UPC: 815996022239
In the Box
- Key Digital KD-MS4x4G-2 4 x 4 4K HDMI Matrix Switcher
- IR Remote Control
- Locking Power Supply
- Rack Ear Set
- 5 x 6-Pin Terminal Block
- Micro-USB to USB-A Cable
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- 4 x 4 HDMI Matrix Switcher
- Supports up to DCI/UHD 4K Video
- HDR10 & Dolby Vison
- Computer Resolution Support
- Deep Color Support
- Independent Video/Audio Matrix
- Full Buffer System
- EDID Management
- Audio De-Embedding
- Digital Audio
- Control Options
- Key Digital App & KDMS Pro
Key Digital MS4X4G Specs
Processing
| Switching Type |
IR Remote, Pushbutton, Software
|
| Processing Resolution |
DCI 4K at 60
|
| Color Processing |
12-Bit 4:4:4
12-Bit 4:2:2 |
| Audio Processing |
192 kHz
|
Input
| Video Inputs |
4x HDMI Female
|
| Input Video Format |
HDMI (12-Bit 4:4:4/4:2:2/4:2:0)
DCI 4K at 24/25/30/60 fps UHD 4K at 24/25/30/60 fps |
| Embedded Audio Input |
HDMI: 2-Channel
|
Output
| Video Outputs |
4x HDMI Female
|
| Output Video Format |
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0)
DCI 4K at 24/25/30/60 fps UHD 4K at 24/25/30/60 fps |
| Audio Outputs |
4x TOSLINK S/PDIF
4x Block 6-Pin |
| Output Audio Format |
S/PDIF: 192 kHz
|
| Embedded Audio Output |
HDMI: 2-Channel
|
Connectivity
| Other I/O |
1x Block 6-Pin Control, IR, RS-232
1x RJ45 Control, LAN |
| HDCP Support |
, Version 2.2
|
| HDR Compatibility |
HDR10, Dolby Vision
|
| DTS Compatibility |
DTS, DTS-HD Master Audio, DTS:X
|
| Dolby Compatibility |
Dolby Atmos, Dolby TrueHD
|
Hardware
| Wi-Fi |
No
|
| Bluetooth |
No
|
Power
| Power I/O |
1x Barrel (12 VDC at 1.6 A) Input
|
| Power Consumption |
20 W
|
General
| Certifications |
CE, EAC, RoHS, WEEE
|
| Rack Form Factor |
1 RU
|
| Dimensions |
17.2 x 7.5 x 1.7" / 438 x 190 x 44 mm
|
| Weight |
5.62 lb / 2.55 kg
|
Packaging Info
| Package Weight |
7.93 lb
|
| Box Dimensions (LxWxH) |
20.5 x 12.4 x 3.2"
|
