Description

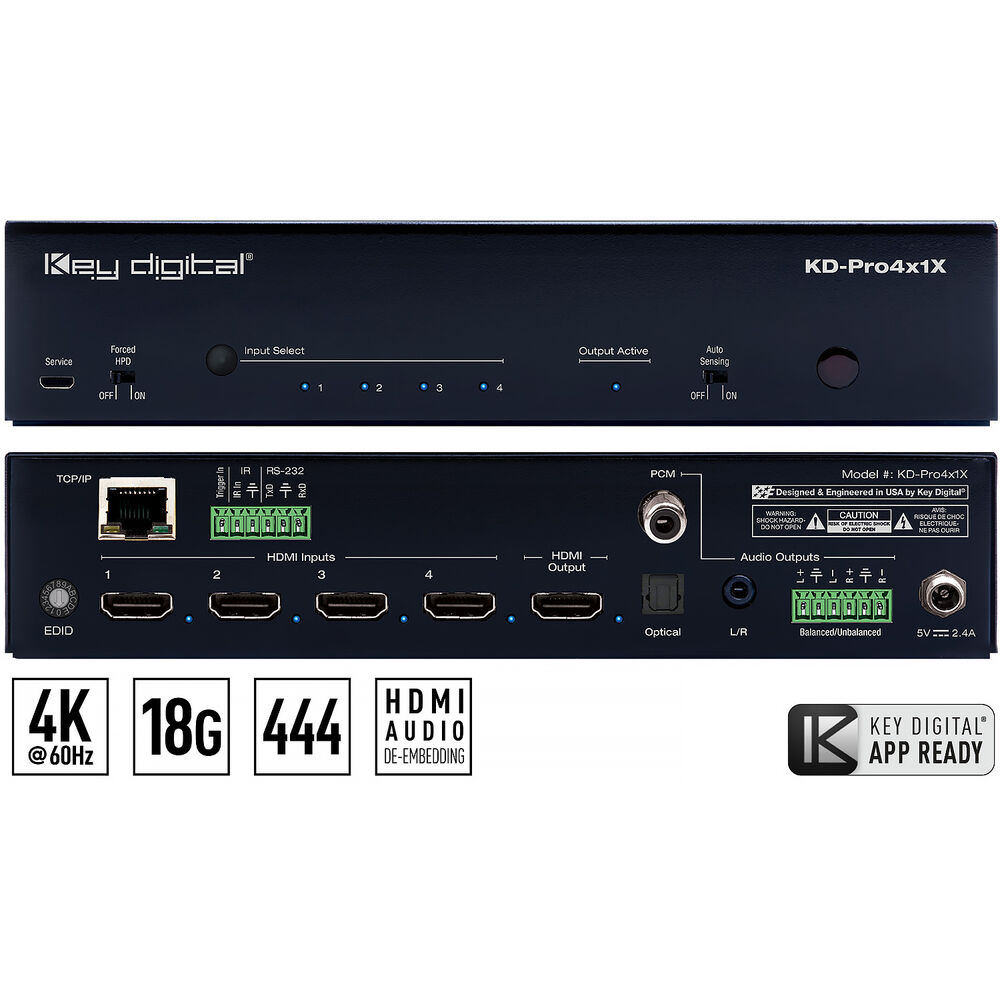

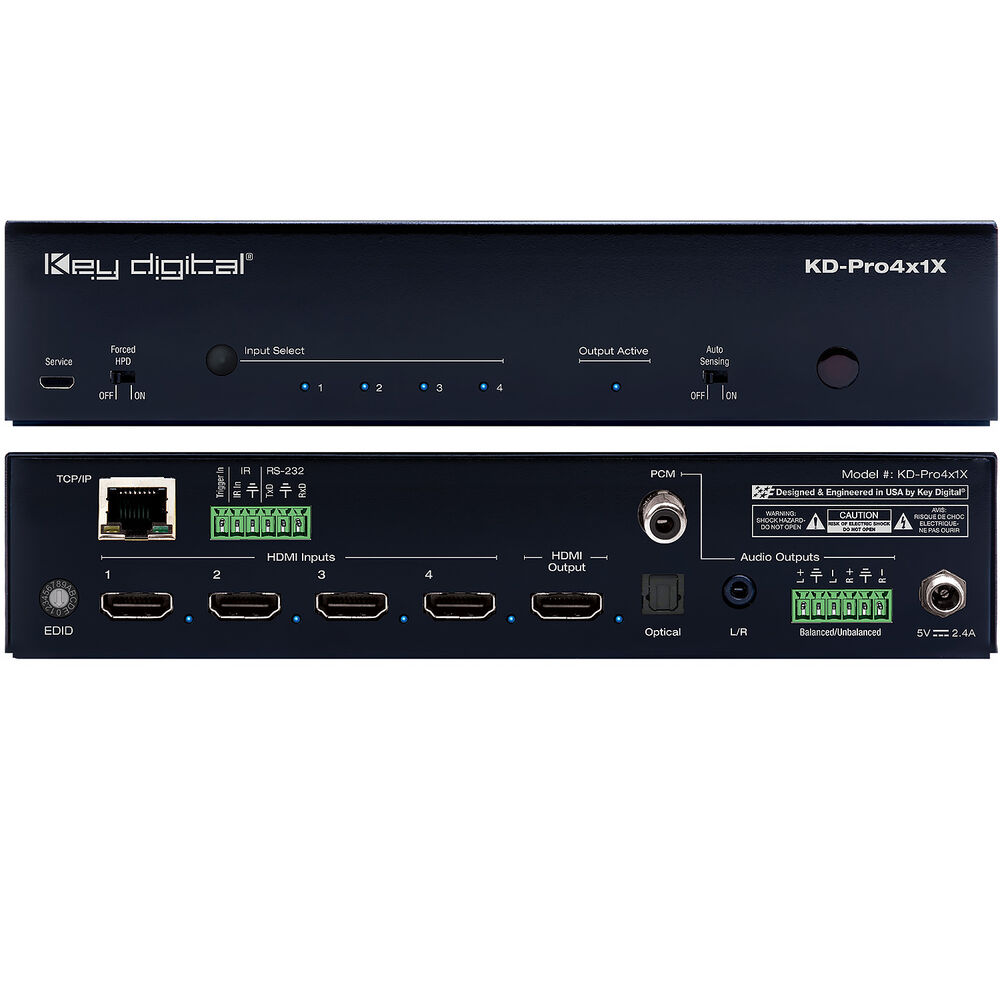

Key Digital KD-PRO4X1X Overview
The Key Digital 4x1 4K/18G HDMI Switcher is a high-performance, four-input HDMI switcher with analog and digital audio de-embedding, auto switching, and app-ready controllability. Designed for professional AV installations in conference rooms, huddle spaces, classrooms, theater, and gaming spaces, it enables four HDMI inputs of up to DCI 4K30 12-bit 4:4:4 or DCI 4K60 8-bit 4:4:4 video to connect to a single display. Analog (3.5mm and balanced/unbalanced) and digital (optical and PCM) audio de-embed ports may feed audio of the selected source to an amplifier, a DSP, or a soundbar.
Integrating this 4x1 4K/18G HDMI Switcher with the Key Digital KD-AMP220 2-Channel Compact Digital Amplifier will enable an app-ready, all-in-one solution for control of video switching with sound and speech enforcement. The full buffer system manages TMDS re-clocking/signal regeneration, HDCP authentication to source and display, and EDID control handshake. The switcher supports a variety of lossless compressed digital audio formats, including Dolby and DTS. This switcher supports all SD, HD, VESA, UHD 4K, and DCI 4K video standards, with support for a maximum data transfer rate of 18 Gb/s. In addition to IR, RS-232, and TCP/IP control, this switcher can be controlled via trigger voltage and features status-monitoring LEDs.
- Key Digital 4x1 4K/18G HDMI Switcher with Auto Switching and Audio De-Embedding
- Power Supply
- IR Remote Control
- 2 x Rack-Mounting Bracket
- 2 x 6-Pin Terminal Block Connector
- Micro-USB to USB-A Cable
- Limited 3-Year Manufacturer Warranty
Key Digital KD-PRO4X1X Specs
| Switching Type |
IR Remote, Pushbutton, Software
|
| Processing Resolution |
DCI 4K at 30
|
| Color Processing |
12-Bit 4:4:4
|
| Audio Processing |
192 kHz
|
| Video Inputs |
4x HDMI Female
|
| Input Video Format |
HDMI (8/12-Bit 4:4:4)
DCI 4K up to 60 fps HDMI (8/12-Bit 4:4:4) UHD 4K up to 60 fps |
| Embedded Audio Input |
HDMI (per Input)
|
| Video Outputs |
1x HDMI Female
|
| Output Video Format |
HDMI (8/12-Bit 4:4:4)
DCI 4K at 60 fps HDMI (8/12-Bit 4:4:4) UHD 4K 60 fps |
| Audio Outputs |
1x 1/8" / 3.5 mm TRS Stereo Analog Female
1x TOSLINK S/PDIF Female 1x Block 6-Pin Line Male |
| Output Audio Format |
Analog
S/PDIF PCM 2.0 |
| Embedded Audio Output |
HDMI
|
| Other I/O |
1x Block 6-Pin Control Output
1x RJ45 Control Input 1x Micro-USB Service Input |
| Digital Audio Decoding |
Dolby Atmos, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD, DTS-HD Master Audio, DTS:X
|
| HDCP Support |
Yes: Version 2.2
|
| HDR Support |
Yes: HDR10/Dolby Vision
|
| OS Compatibility |
Computer: macOS / Windows / Linux
Mobile: iOS Only |
| Wireless |
No
|
| Power I/O |
1x Barrel (5 VDC at 1 A) Input
|
| Certifications |
CE, EAC, RoHS, WEEE
|
| Dimensions |
17.2 x 7.5 x 1.7" / 43.8 x 19 x 4.4 cm
|
| Weight |
7.9 lb / 3.6 kg
|
| Package Weight |
2.745 lb
|
| Box Dimensions (LxWxH) |
12.7 x 10.6 x 3.3"
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
