Description
Kendall Howard Phantom Class Overview
- 1Description
- 290° Swing-Out
- 3Easy to Assemble
- 4Numerous Cable Lacing Points
- 5Open Back Design

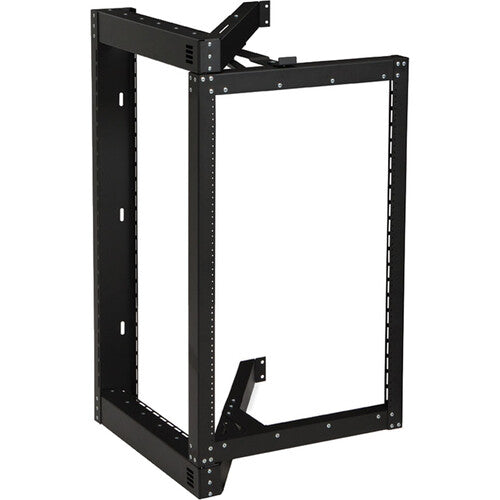

The 18U Kendall Howard Phantom Class Open Frame Swing-Out Rack allows you to install rackmount equipment up off the floor, and it can easily support up to 150 lb, with a 20" usable depth. The 90° swing-out provides installers the access they need to install and manage patch panels, routers, hubs, switches, cabling, and other networking devices.

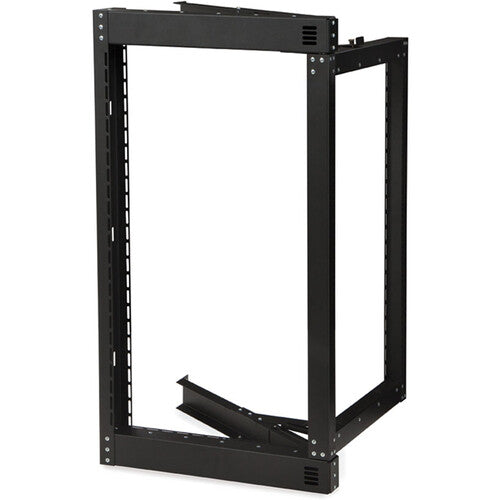

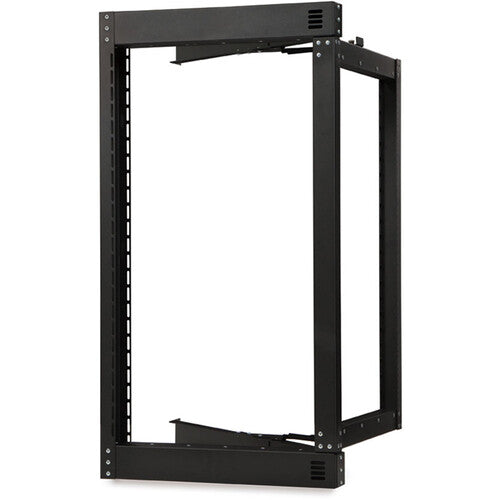

90° Swing-Out
The pivoting rackmount frame swings out 90° to easily access the rear of installed network equipment. Integrated positive stop prevents the gate from being opened more than 90 degrees to avoid causing damage or stress to cabling and connection points. A simple latching mechanism securely holds the swing gate in the closed position when finished.
Easy to Assemble
Knockdown design reduces shipping charges and assembles in a snap. With just a few steps the rack is easy to assemble, and with the 16" on center mounting holes you can mount directly to your wall studs.
Numerous Cable Lacing Points
Both the front and rear of the wall rack feature oblong cut outs for securing cable bundles. Simply use your preferred cable ties or hook and loop straps.
Open Back Design
The open back design allows the rack to be installed over existing equipment such as network or electrical conduit, wall mounted equipment, and more. Perfect for upgrading a network that already is in use because you don't have to disconnect cables and spend time re-terminating. Just feed the device through the top, back or sides and mount into place.
UPC: 879447004199
In the Box
- Kendall Howard Phantom Class Open Frame Swing-Out Rack (18U)
- Main Frame
- 2 x Front Angled Brace
- 2 x REar Angled Brace
- 2 x Swing Out Brace
- Upper Stop Bracket with Latch
- Lower Stop Bracket
- Assembly Parts Pack
- Limited Lifetime Warranty
Table of Contents
- Description
- 90° Swing-Out
- Easy to Assemble
- Numerous Cable Lacing Points
- Open Back Design
Kendall Howard Phantom Class Specs
| Rack Form Factor | 18 RU |
| Rack Depth | 22.13" / 56.21 cm |
| Load Capacity | 150 lb / 68.0 kg |
| Caster/Wheel | None |
| Fans | None |
| Material of Construction | Steel |
| Wall Mountable | Yes |
| Enclosure Design | Open |
| Environmental Protection | None |
| Certifications | EIA 19" Certification *as per Manufacturer |
| Exterior Dimensions (W x H x D) | 41.7 x 22.1 x 21.1" / 106.0 x 56.2 x 53.6 cm |
| Weight | 42.65 lb / 19.35 kg |
