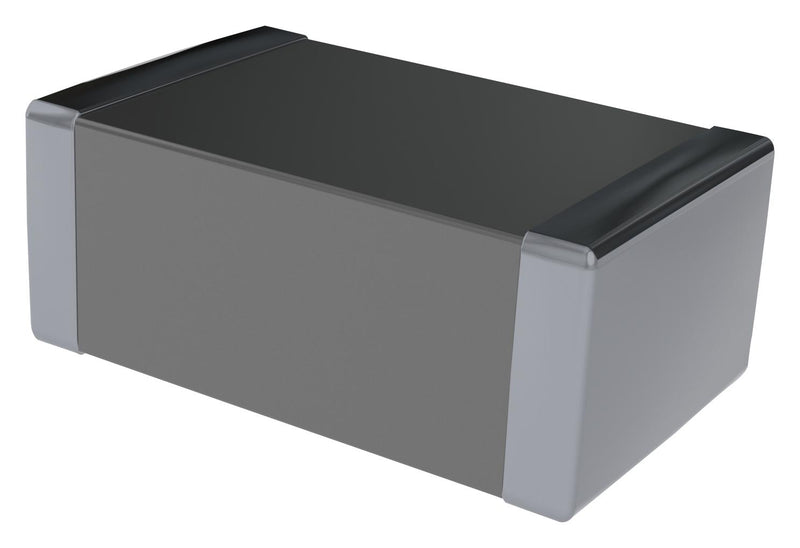

Kemet VE2220K102R035 TVS Varistor 35 V 45 VE Series 92 2220 [5650 Metric] Multilayer (MLV)

The VE varistors series are designed to protect sensitive electronic devices against high voltage surges in the low voltage region. In addition to superior operating performance at rated 150°C (AEC-Q200 compliance) they offer excellent transient energy absorption due to improved energy volume distribution and power dissipation. ESD protection for components sensitive to IEC 1000-4-2, MILSTD 883C Method 3015.7 and other industry specifications. Replacement of larger surface mount TVS Zeners in many applications.

• Operating temperature range from -55ºC to +150ºC
• Operating voltage range of 3 V to 170 V
• AC voltage range (Vrms) of 2 V to 130 V
• High resistance to cyclic temperature stress
• Low leakage currents after 1,000 hours rated at 150°C
• Available case sizes: 0603, 0805, 1206, 1210, 1812, 2220
• UL 1499, 3rd edition and CSA C22.2 File E326499 Section 8
• RoHS 2 2011/65/EC, REACH compliant
• AEC-Q200 qualified Grade 1

Product details

Voltage Rating VAC	35V
Voltage Rating V DC	45V
Product Range	VE Series
Clamping Voltage Vc Max	92V
Varistor Case Style	2220 [5650 Metric]
Varistor Type	Multilayer Varistor (MLV)
Peak Surge Current @ 8/20µs	1kA
Operating Temperature Min	-55°C
Operating Temperature Max	150°C
Peak Energy (10/1000uS)	7.6J
Automotive Qualification Standard	AEC-Q200
RoHS Phthalates Compliant	Yes

Other details

Brand	KEMET
Part Number	VE2220K102R035
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN
