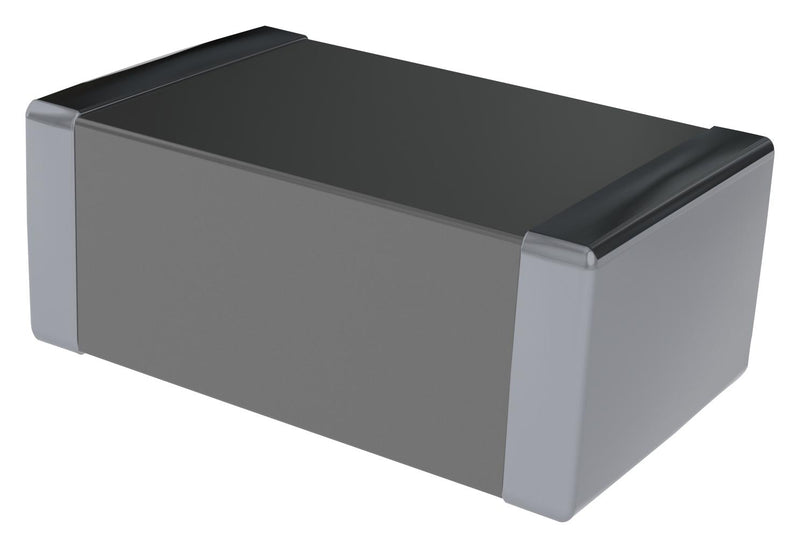

Kemet VC2220K122R030 TVS Varistor 30 V 38 VC Series 77 2220 [5650 Metric] Multilayer (MLV)

The VC varistors series are designed to protect sensitive electronic devices against high voltage surges in the low voltage region. VC varistors offer excellent transient energy absorption due to improved energy volume distribution and power dissipation. ESD protection for components sensitive to IEC 1000-4-2, MILSTD 883C Method 3015.7 and other industry specifications. Replacement of larger surface mount TVS Zeners in many applications.

• Operating temperature range from -55ºC to +125ºC
• Operating voltage range of 3 to 170 VDC
• Available case sizes: 0603, 0805, 1206, 1210, 1812, 2220
• Low clamping voltage - Uc
• Non-sensitive to mildly activated fluxes
• UL 1499, 3rd edition and CSA C22.2 File E326499 Section 8
• RoHS 2 2011/65/EC, REACH compliant
• AEC-Q200 qualified Grade 1

Product details

Voltage Rating VAC	30V
Voltage Rating V DC	38V
Product Range	VC Series
Clamping Voltage Vc Max	77V
Varistor Case Style	2220 [5650 Metric]
Varistor Type	Multilayer Varistor (MLV)
Peak Surge Current @ 8/20µs	1.2kA
Operating Temperature Min	-55°C
Operating Temperature Max	125°C
Peak Energy (10/1000uS)	12.2J
Automotive Qualification Standard	AEC-Q200

Other details

Brand	KEMET
Part Number	VC2220K122R030
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
CAD Multiple Formats EN
Manufacturer Catalogue EN
