Description

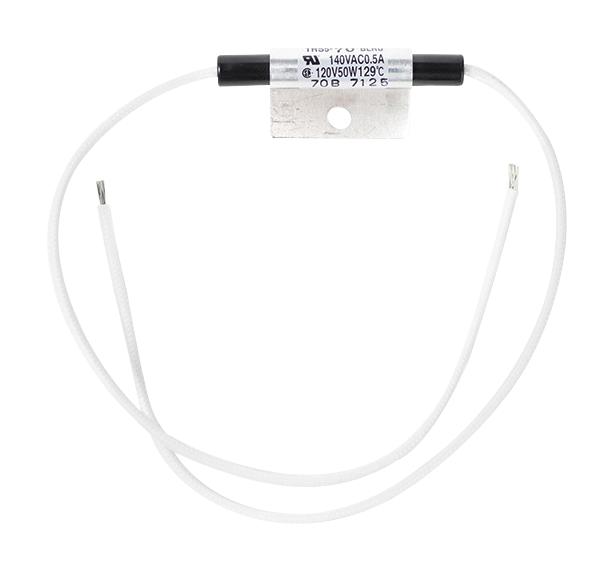

The TRS5-90BLRU from KEMET is a TRS� series thermal reed switch. It is a highly reliable, precise temperature-sensitive switch ideal for energy conservation. The TRS Series is composed of a magnet and a temperature-sensing soft ferromagnetic substance called Thermorite®. The material's magnetic flux density decreases as the temperature increases, turning it into a paramagnetic substance at its curie temperature. Typical applications include temperature detection and overheat monitoring of electric appliances, heat-retention heater control for rice cookers, defrost for air conditioners and vending machines, roll heater temperature control for copying machines, radiator water temperature detection for automotive electric fan control.
- Voltage rating is 100VDC
- Maximum opening/ closing voltage is 140VAC/200VDC
- Maximum opening/ closing current is 0.55A AC/DC
- Maximum opening/ closing power is 60.5W AC/10W DC
- Maximum make/break current is 0.5A, maximum make/break voltage is 140VAC
- Maximum make/break power is 50W AC
- Operating temperature is 90°C ±5°C
- Excellent temperature accuracy of ±2.5°C
- Long operational life, excellent environmental durability
- UL and CSA approved
Automation & Process Control
Other details
| Brand | KEMET |
| Part Number | TRS5-90BLRU |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
