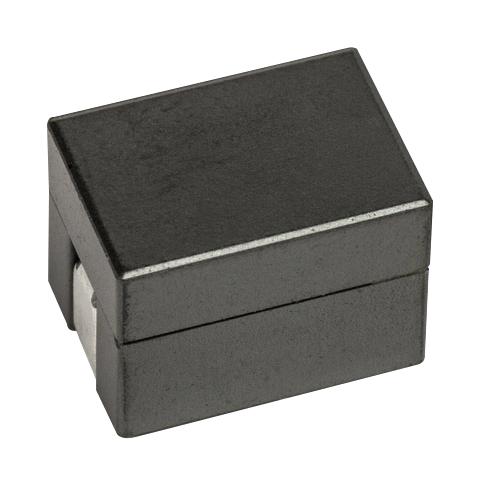

The KEMET TPI ferrite core inductors are designed for a very low core loss. Its' flat wire, "1 turn through the construction" design, enables high efficiency at large currents. The core material used is ideal for high switching frequency applications.
- 1 Turn coil ferrite
- Operating temperature up to +125°C
- High switching frequency
- Low core loss
- Low DCR
- High current
- Low self-heating
Product details
| Inductance |
210nH |
| RMS Current (Irms) |
50A |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
70A |
| Product Range |
TPI Series |
| Power Inductor Case |
12mm x 8mm x 8mm |
| DC Resistance Max |
290µohm |
| Inductance Tolerance |
± 10% |
Other details
| Brand |
KEMET |
| Part Number |
TPI128080L210N |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| CAD Multiple Formats EN |
|
| Manufacturer Catalogue EN |
|
