Kemet T599X336M035ATE065 T599X336M035ATE065 Tantalum Polymer Capacitor KO-CAP® 33 µF ± 20% 35 V X 0.065 ohm 2917 [7343 Metric]

The T599 series Organic Capacitor (KO-CAP) is a solid electrolytic capacitor with a conductive polymer cathode, capable of delivering very low ESR and an improved capacitance retention at high frequencies. KO-CAP combines the low ESR of the multilayer ceramic, the high capacitance of aluminum electrolytic and the volumetric efficiency of tantalum into a single surface mount package. Unlike liquid electrolyte-based capacitors, KO-CAP has a very long operational life and high ripple current capabilities.

• Full compliance with AEC-Q200 qualification test plan
• Qualification plan based on AEC-Q200 with 85°C/85%
• Subject to PPAP/PSW and change control
• Meets or exceeds EIA standard 535BAAC
• Extended endurance test qualification, up to 2,000 hours 125°C

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	KEMET
Part Number	T599X336M035ATE065
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN
CAD Multiple Formats EN

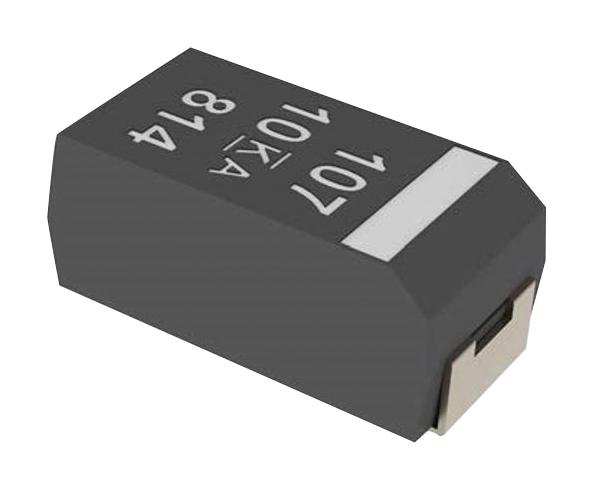

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
