The T543 series organic SMD Tantalum Capacitor with a conductive polymer cathode capable of delivering very low ESR and improved capacitance retention at high frequencies. KO-CAP combines the low ESR of multilayer ceramic, the high capacitance of aluminium electrolytic and the volumetric efficiency of tantalum into a single surface mount package. Unlike liquid electrolyte-based capacitors, KO-CAP has a very long operational life and high ripple current capabilities. This polymer electrolytic Capacitor is an upscreened version of the industrial T520 KO-CAP. This upscreened option includes surge current testing of 10 cycles at +25°C and 10 cycles at -55°C/+85°C. In addition to 100% Tin (Sn) terminations a Tin-lead (SnPb) option is also available.
- Extremely low ESR
- High frequency capacitance retention
- 100% accelerated steady state aging
- 100% surge current tested
- Volumetrically efficient
- Surge options at 25ºC and -55ºC/+85ºC
- Halogen-free Epoxy/RoHS Compliant
Product details
| Capacitance |
470µF |
| Voltage Rating |
16V |
| Product Range |
T543 KO-CAP® Series |
| Capacitance Tolerance |
± 20% |
| Manufacturer Size Code |
O |
| ESR |
0.02ohm |
| Operating Temperature Min |
-55°C |
| Operating Temperature Max |
105°C |
| Automotive Qualification Standard |
- |
Other details
| Brand |
KEMET |
| Part Number |
T543O477M016AHE020 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| CAD Multiple Formats EN |
|
| Manufacturer Catalogue EN |
|

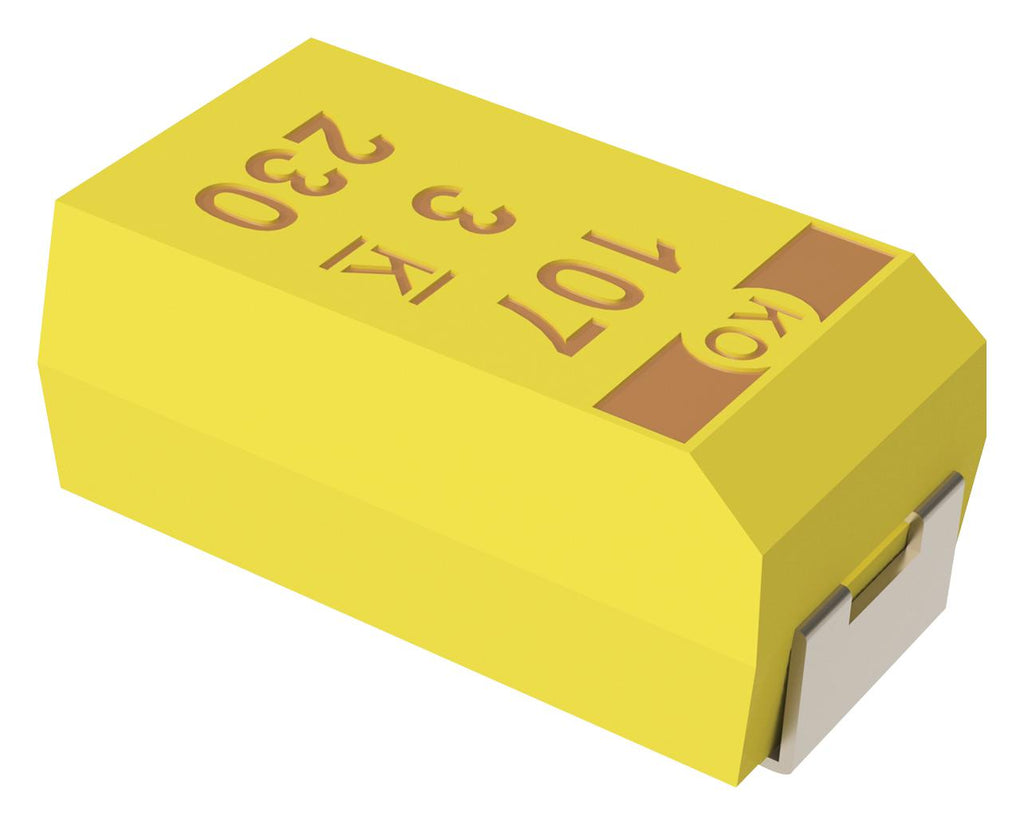

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
