The KO-CAP T541 Series solid electrolytic organic SMD Tantalum Capacitor with a conductive polymer cathode capable of delivering very low ESR and improved capacitance retention at high frequencies. KO-CAP combines the low ESR of multilayer ceramic, the high capacitance of aluminium electrolytic and the volumetric efficiency of tantalum into a single surface mount package. Unlike liquid electrolyte-based capacitors, KO-CAP has a very long operational life and high ripple current capabilities. This COTS polymer electrolytic offers the same performance advantages as other KO-CAP series with screening options associated with high reliability applications. This series is the first polymer electrolytic capacitor available with failure rate options as defined by KEMET's KO-CAP reliability assessment method. This method utilizes accelerated conditions applied to board-mounted samples to assess long term device reliability.
- Approved for DLA Drawing 04051/04052
- B, C and D failure rates available
- 100% accelerated steady state aging
- High frequency capacitance retention
- Very low ESR values down to 5mR
- Surge current testing options
- Volumetrically efficient
- EIA standard case sizes
Product details
| Capacitance |
330µF |
| Voltage Rating |
10V |
| Product Range |
T541 KO-CAP® Series |
| Capacitance Tolerance |
± 20% |
| Manufacturer Size Code |
X |
| ESR |
0.005ohm |
| Operating Temperature Min |
-55°C |
| Operating Temperature Max |
125°C |
| Automotive Qualification Standard |
- |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
KEMET |
| Part Number |
T541X337M010AH6530 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|

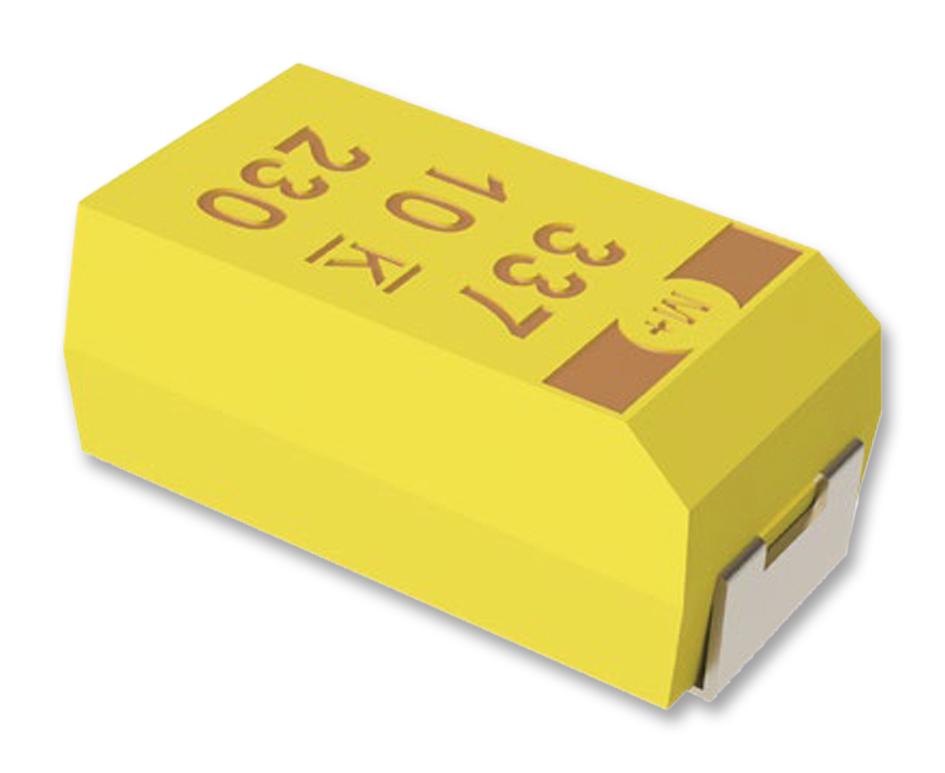

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
