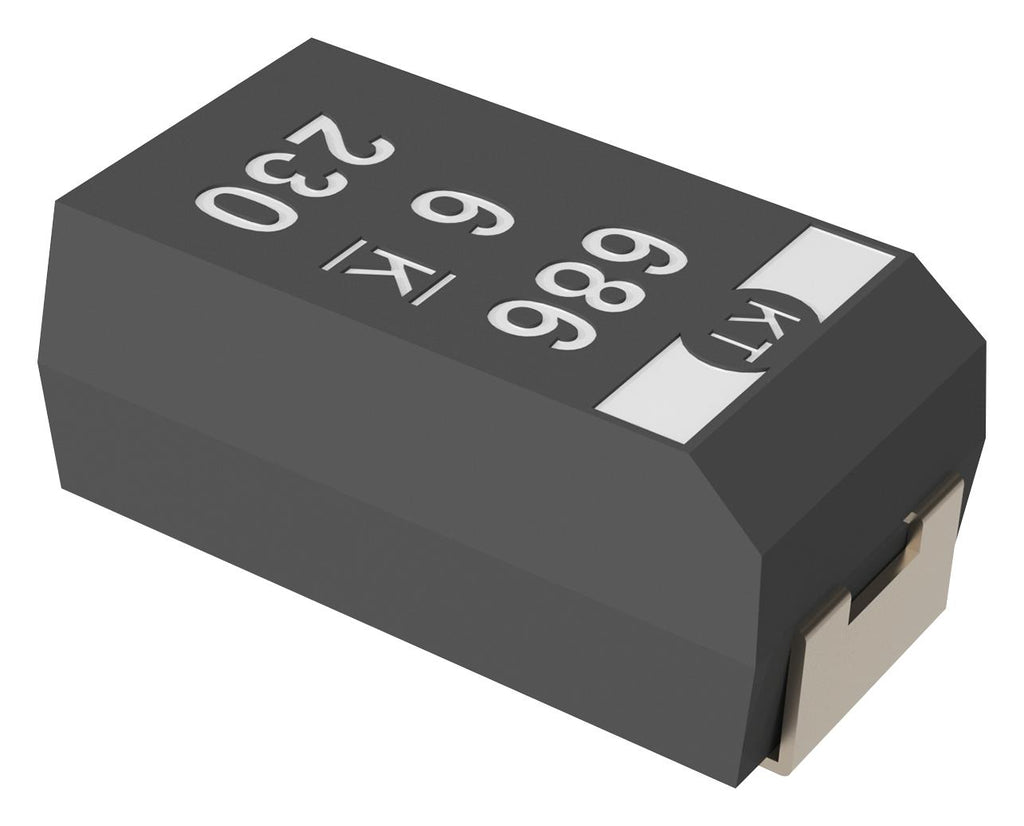

Kemet T525D337M006ATE025 Tantalum Polymer Capacitor KO-CAP® 330 µF ± 20% 6.3 V D 0.025 ohm 2917 [7343 Metric]

The T525 series organic SMD Tantalum Capacitor with a conductive polymer cathode capable of delivering very low ESR and improved capacitance retention at high frequencies. KO-CAP combines the low ESR of multilayer ceramic, the high capacitance of aluminium electrolytic and the volumetric efficiency of tantalum into a single surface mount package. Unlike liquid electrolyte-based capacitors, KO-CAP has a very long operational life and high ripple current capabilities. This polymer electrolytic is rated for 125°C operating temperatures, extending the category temperature of the standard T520 KO-CAP. This series delivers a higher temperature rating for applications that may exceed 105°C, while still offering the same advantages such as low ESR, high frequency capacitance retention, long life and stable capacitance as other KO-CAPs.

• Extremely stable ESR at 125°C
• Volumetrically efficient
• High frequency capacitance retention
• 100% surge current tested
• EIA standard case sizes
• Halogen-free epoxy

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	KEMET
Part Number	T525D337M006ATE025
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN
CAD Multiple Formats EN
Product Change Notice EN
