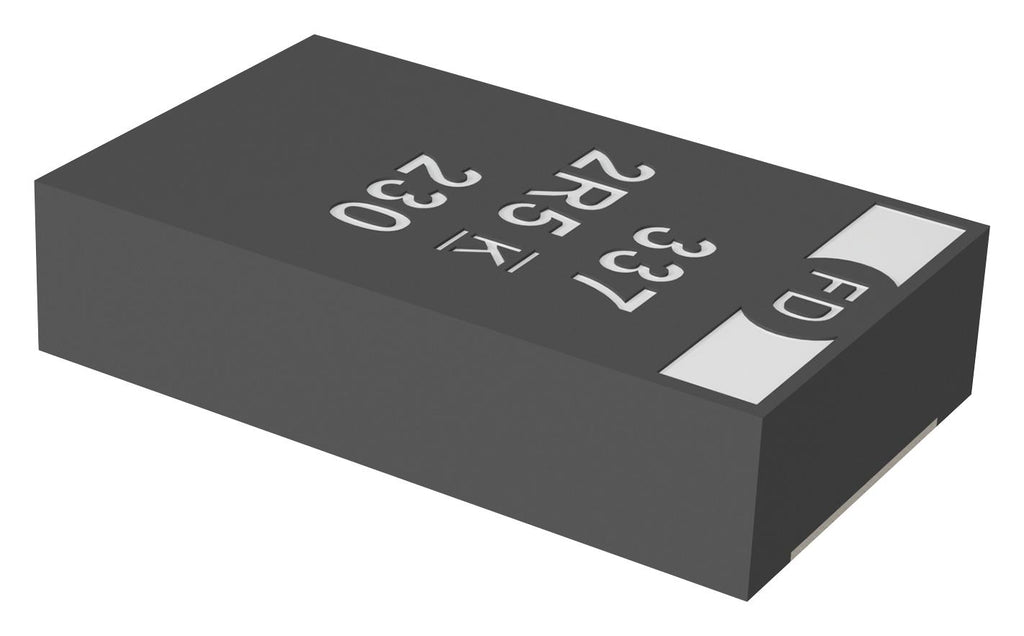

Kemet T523T157M006APE030 T523T157M006APE030 Tantalum Polymer Capacitor 150 µF ± 20% 6.3 V T 0.03 ohm 1411 [3528 Metric]

The T523 series Organic Capacitor (KO-CAP) is a solid electrolytic facedown capacitor for applications up to 48V. KO-CAP combines the low ESR of multilayer ceramic, the high capacitance of aluminum electrolytic and the volumetric efficiency of tantalum into a single surface mount package. Unlike liquid electrolyte-based capacitors, KO-CAP has a very long operational life and high ripple current capabilities.

• Low ESL
• Stable capacitance across temperature and voltage
• No aging effects
• High ripple handling
• High frequency capacitance retention
• 100% accelerated steady state aging
• 100% surge current tested
• Halogen-free epoxy/RoHS compliant

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	KEMET
Part Number	T523T157M006APE030
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN
CAD Multiple Formats EN
