The T521 series organic SMD Tantalum Capacitor with a conductive polymer cathode capable of delivering very low ESR and improved capacitance retention at high frequencies. KO-CAP combines the low ESR of multilayer ceramic, the high capacitance of aluminium electrolytic and the volumetric efficiency of tantalum into a single surface mount package. Unlike liquid electrolyte-based capacitors, KO-CAP has a very long operational life and high ripple current capabilities. This high voltage polymer electrolytic is designed for higher application voltages than the T520 KO-CAP. KO-CAP's long-life reliability enables this series to be an ideal alternative to liquid-based electrolytic capacitors.
- Volumetrically efficient
- Stable temperature characteristics
- High ripple current capability
- High reliability
- 100% Surge current tested
- Low profile design
- Halogen-free epoxy
- High frequency capacitance retention
- 100% Accelerated steady state aging
Product details
| Capacitance:
10µF
|
| Capacitance Tolerance:
± 20%
|
| Voltage(DC):
25V
|
| Manufacturer Size Code:
T
|
| ESR:
0.6ohm
|
| Capacitor Case / Package:
1411 [3528 Metric]
|
| Product Length:
3.5mm
|
| Product Width:
2.8mm
|
| Product Height:
1.1mm
|
| Ripple Current:
1.3A
|
| Operating Temperature Min:
-55°C
|
| Operating Temperature Max:
125°C
|
| Product Range:
T52X/T530 KO-CAP® Series
|
| Qualification:
-
|
Other details
| Brand |
KEMET |
| Part Number |
T521T106M025ATE060 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

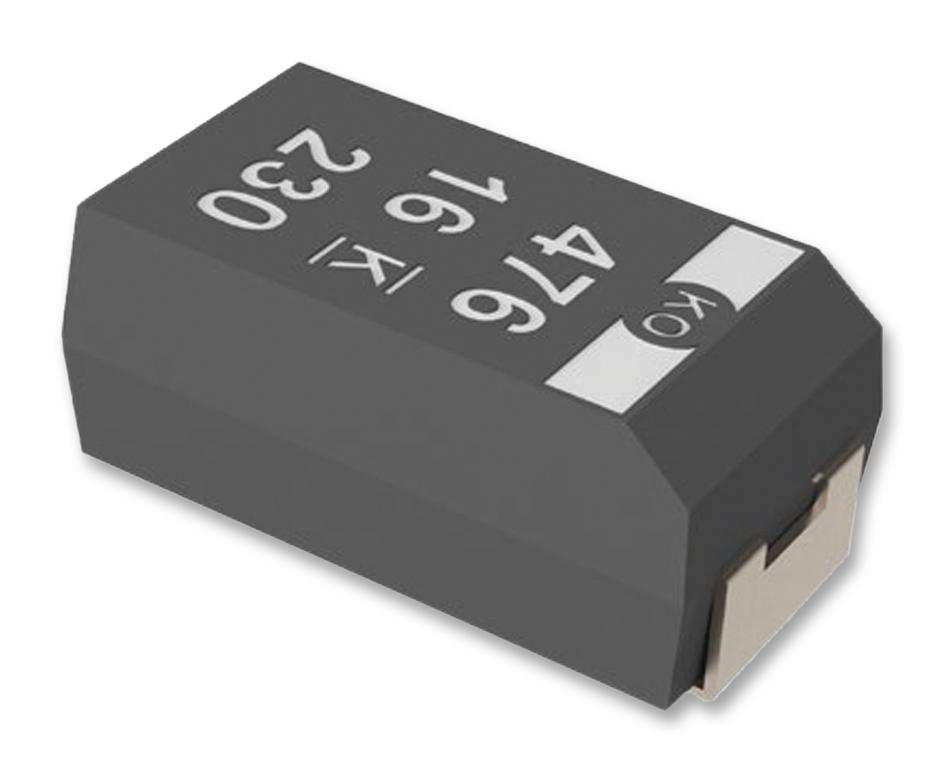

![KEMET T521T106M025ATE060 Tantalum Polymer Capacitor, KO-CAP®, 10 µF, ± 20%, 25 V, T, 0.6 ohm, 1411 [3528 Metric]](http://www.tanotis.com/cdn/shop/files/2b606befce460056f555cc95d602007b_372e8337-c1bd-48e3-a7a0-9074df49f515_{width}x.jpg?v=1706911317)
